RUYI
RUYI Window
AEDW1 RUYI Window Light / Reshape Your Imagination, Reinvent Your Imagination of Windows
Distinct in form and expressive in performance, RUYI Window delivers dimensional light with rich, dynamic color capability. Its sculptural presence enhances façades, window reveals, and curated art environments, creating layered illumination that brings surfaces to life. Designed for flexible installation and precise aiming, RUYI Window adapts seamlessly to architectural contours while maintaining disciplined optical control. A specification-grade solution where visual impact and technical reliability converge.
Features

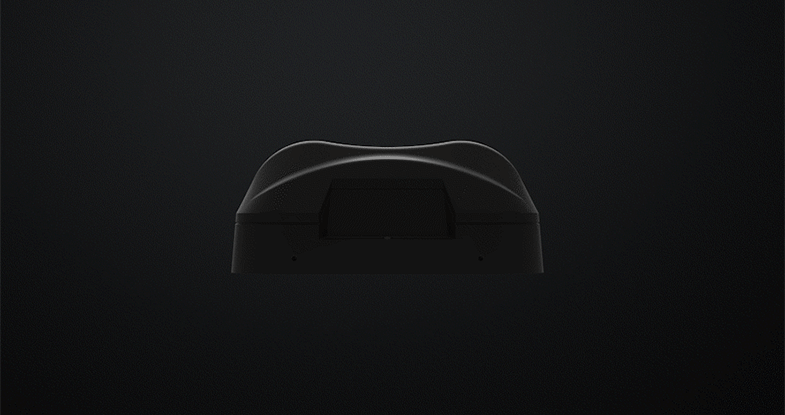

Highly recognizable appearance design
Smile curves, hard and soft, richa and delicate. Soft and strong, dynamic and smooth.

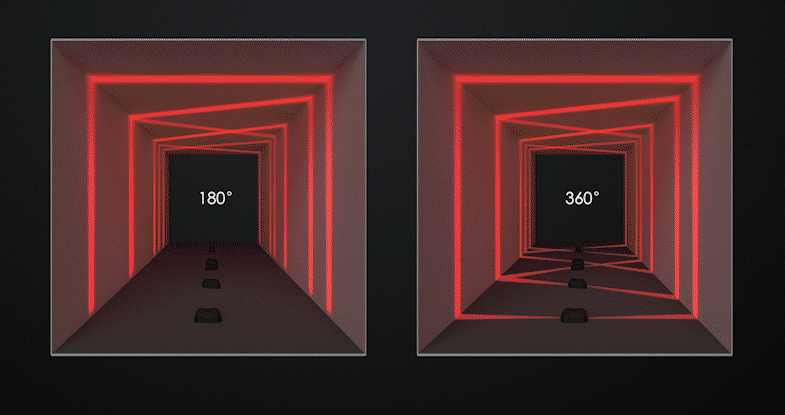

Three-dimensional light emission, rich colors
180° and 360° three-dimensional light output, DMX512 control supports color temperature adjustment and rich color variation.

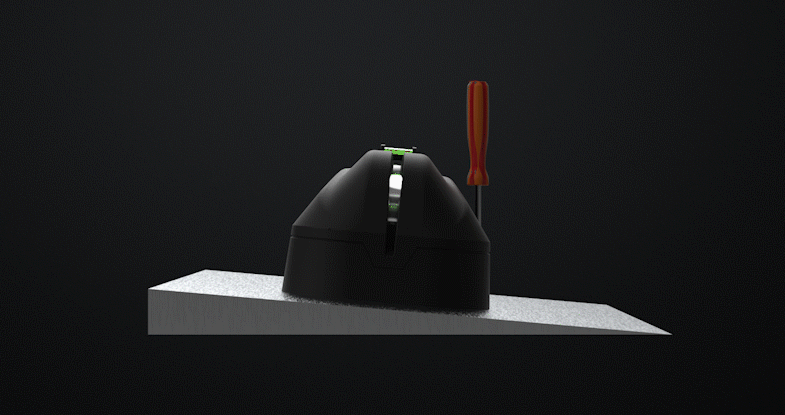

Surface adjustments, easy to handle
The surface can be easily adjusted, supporting precise adjustment within 5°, easy to match with a variety of installation environments.
Videos
RUYI
Specifications
| Model | LED Power | LEDs (Quantity) | Max Lumens (lm) | Control System | Beam | CCT | Finish |
| AEDW1 | 9 9W | 4 | 41 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | V 4° x 180° | 27 2700K 30 3000K 40 4000K F30 RGBW(3000K) F40 RGBW(4000K) | BK Black |
| Model | LED Power | LEDs (Quantity) | Max Lumens (lm) | Control System | Beam | CCT | Finish |
| AEDW1 | 12 12W | 8 | 87 | EL ON-OFF 220V AC Power Supply | V 4° x 360° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | LED Power | LEDs (Quantity) | Max Lumens (lm) | Control System | Beam | CCT | Finish |
| AEDW1 | 18 18W | 8 | 108 | MT DMX512 Dimming 24V DC Power Supply | V 4° x 360° | 27 2700K 30 3000K 40 4000K F30 RGBW(3000K) F40 RGBW(4000K) | BK Black |
Example: AEDW1-12ELV27BK
