Exterior Lighting
1 / 2
BEACON X5
BEACON X5 Mini Flood III
ELF505/ELF510 Medium Power Linear Light

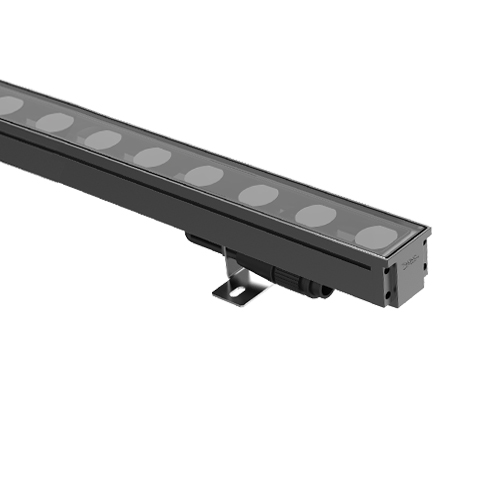

Focused and resilient, BEACON X5 Mini Flood III delivers powerful exterior illumination through high-efficiency LEDs and precision optics. Even LED spacing ensures uniform output, while the robust housing withstands demanding outdoor environments. DMX512 compatibility enables programmable façade effects, and bottom cable routing simplifies architectural integration.

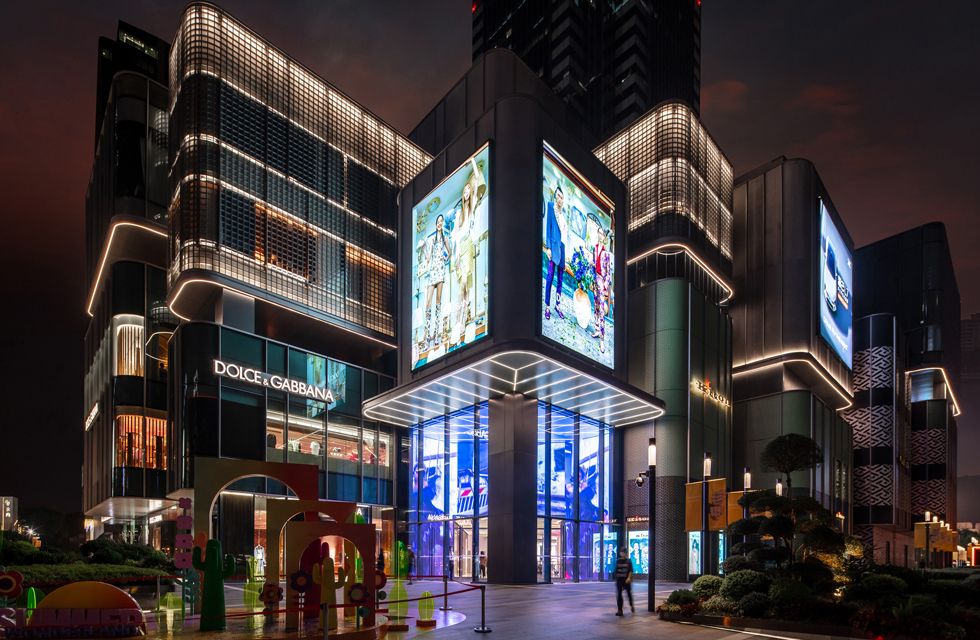

Projects
Specifications

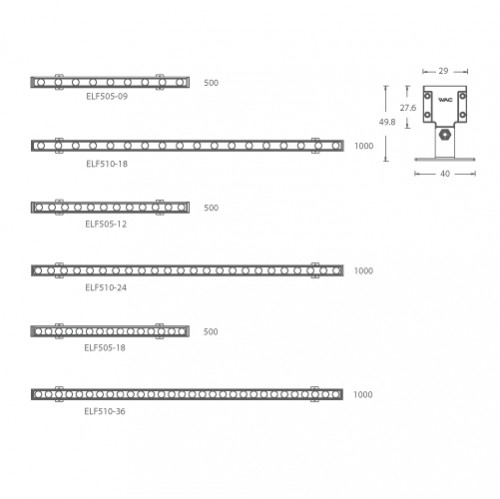

| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF505-09 | 500 | 09 (Max) | 9 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF505-12 | 500 | 12 (Max) | 12 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF505-18 | 500 | 18 (Max) | 15 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF510-18 | 1000 | 18 (Max) | 18 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF510-24 | 1000 | 24 (Max) | 24 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF510-36 | 1000 | 36 (Max) | 30 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
Example: ELF505-09ET-127BK
