BEACON X7

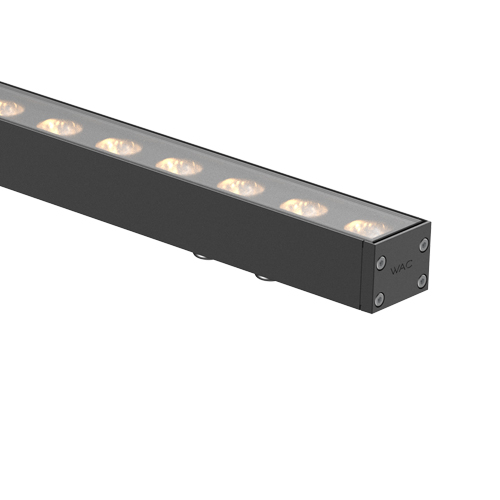

BEACON X7 Graze II

AELS203/AELS205/AELS210 High Power Linear Light
Surface articulation requires precision, and BEACON X7 Graze II delivers with symmetrical and asymmetrical distribution options that reveal architectural texture without stray light or dark gaps. Seamless splicing ensures continuous linear coverage, while integrated pressure-balancing technology reduces condensation risk in exterior environments.

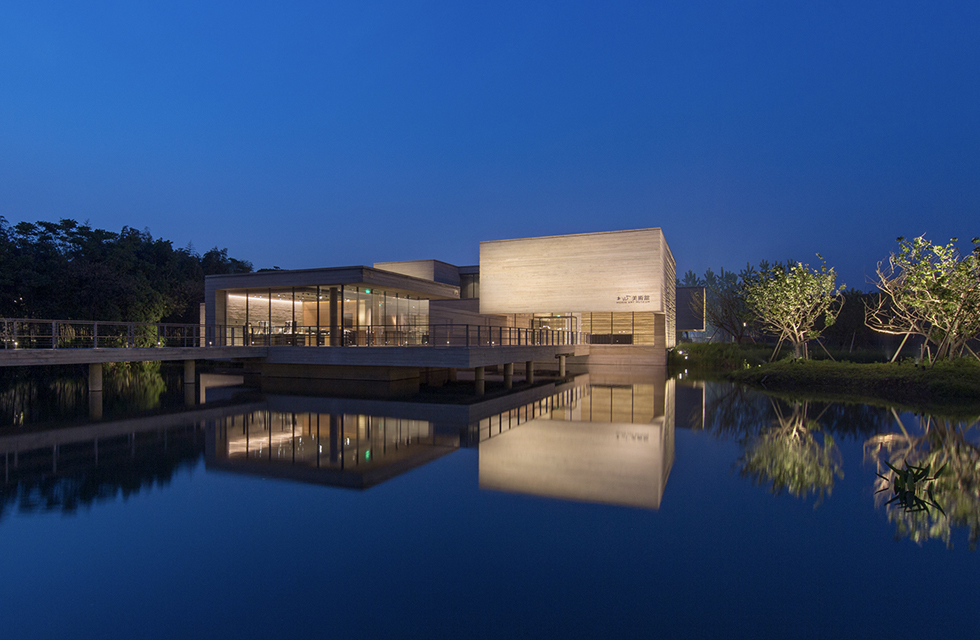

Projects

Specifications

Model

Length

(mm)

PowerLEDs(Quantity)

Max Lumens

(lm)

Control SystemsBeamPower Feed TypeCCTFinish
AELS203-1430014(Max)6949

ET  ON-OFF

24V DC Poower Supply

EC  Max 700mA Drive

MT  DMX512 Dimming

24V DC Power Supply

V  5°

S  9°

1  17°

2  22°

3  33°

5  51°

E  9° x 15°

G  15° x 43°

B  Bottom

S  Side

27  2700K

30  3000K

40  4000K

BK  Black


Model

Length

(mm)

PowerLEDs(Quantity)

Max Lumens

(lm)

Control SystemsBeamPower Feed TypeCCTFinish
AELS205-2850028(Max)121898

ET  ON-OFF

24V DC Poower Supply

EC  Max 700mA Drive

MT  DMX512 Dimming

24V DC Power Supply

V  5°

S  9°

1  17°

2  22°

3  33°

5  51°

E  9° x 15°

G  15° x 43°

B  Bottom

S  Side

27  2700K

30  3000K

40  4000K

BK  Black


Model

Length

(mm)

PowerLEDs(Quantity)

Max Lumens

(lm)

Control SystemsBeamPower Feed TypeCCTFinish
AELS210-56100056(Max)243795

ET  ON-OFF

24V DC Poower Supply

EC  Max 700mA Drive

MT  DMX512 Dimming

24V DC Power Supply

V  5°

S  9°

1  17°

2  22°

3  33°

5  51°

E  9° x 15°

G  15° x 43°

B  Bottom

S  Side

27  2700K

30  3000K

40  4000K

BK  Black
Model

Length

(mm)

PowerLEDs(Quantity)

Max Lumens

(lm)

Control SystemsBeamPower Feed TypeCCTFinish
AELS210-56100056(Max)243795

ET  ON-OFF

24V DC Poower Supply

EC  Max 700mA Drive

MT  DMX512 Dimming

24V DC Power Supply

V  5°

S  9°

1  17°

2  22°

3  33°

5  51°

E  9° x 15°

G  15° x 43°

B  Bottom

S  Side

F3  RGBW(3000K)

F4  RGBW(4000K)

F6  RGBW(5700K)

BK  Black
