BEACON X7

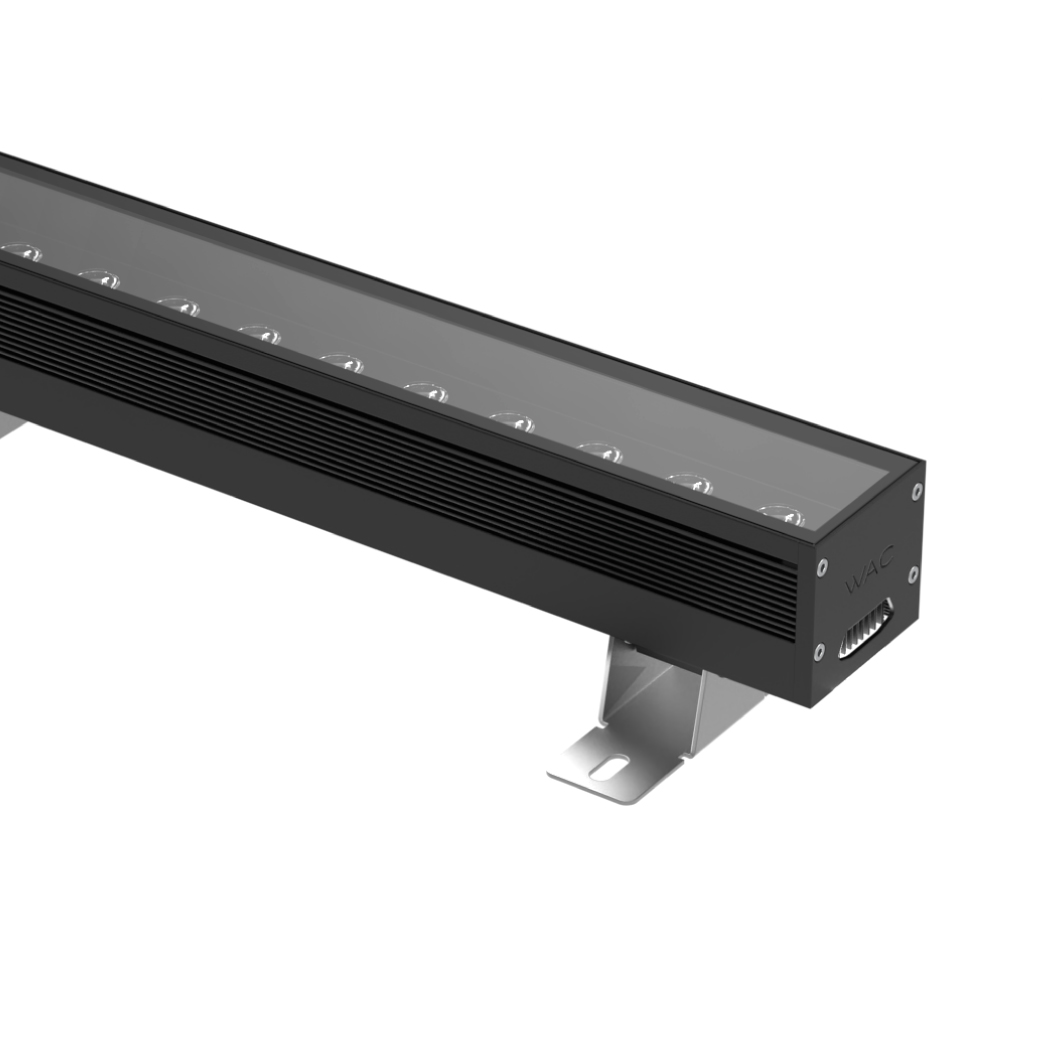

BEACON X7 Graze Large

AELS5 High Power Linear Light
Scaled for broader architectural coverage, BEACON X7 Graze Large maintains smooth, uniform surface illumination across extended runs. Symmetrical and asymmetrical optical options allow tailored façade articulation, while seamless splicing eliminates visible interruptions. Pressure-balancing engineering enhances durability in demanding exterior applications.

Specifications

Model

Length

(mm)

Power

(W)

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

AELS505-054

AELS510-108

500

1000

54(Max)

108(Max)

24

48

5541

11081

EL ON-OFF

220V AC Power Supply

ML DMX512 Dimming

220V AC Power Supply

S   9°

1   14°

2   25°

3   39°

5   53°

J   17°x59°

27 2700K

30 3000K

40 4000K

BK Black


Model

Length

(mm)

Power

(W)

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

AELS505-054

AELS510-108

500

1000

54(Max)

108(Max)

24

48


ML DMX512 Dimming

220V AC Power Supply

1   14°

2   24°

4   39°

6   57°

G  23°x35°

F3 RGBW（3000K）

F4 RGBW（4000K）

BK Black

Model

Length

(mm)

Power

(W)

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

AELS505-054

AELS510-108

500

1000

54(Max)

108(Max)

9

18

2793

5585

ML DMX512 Dimming

220V AC Power Supply

S   7°

F3 RGBW（3000K）

F4 RGBW（4000K）

BK Black

Example: AELS510-108MLSF3BK
