BEACON X7

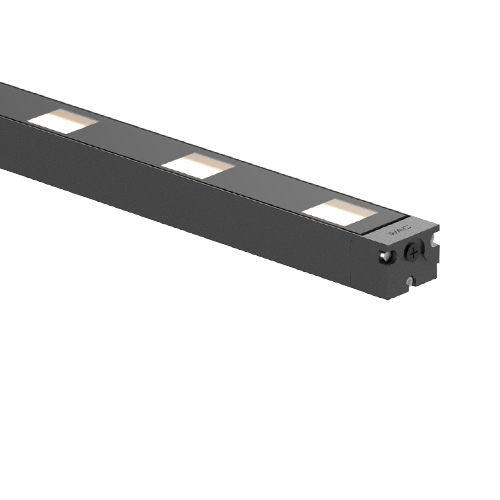

BEACON X7 View Horizontal
AELV203/AELV206/AELV209/AELV212 High Power Linear Light
Engineered for disciplined exterior performance, BEACON X7 View Horizontal integrates high-efficiency LEDs and precision optics to deliver uniform illumination across architectural surfaces. Even LED placement eliminates shadowing, while flexible cable routing and an integrated Gore breather valve support long-term durability.
Specifications

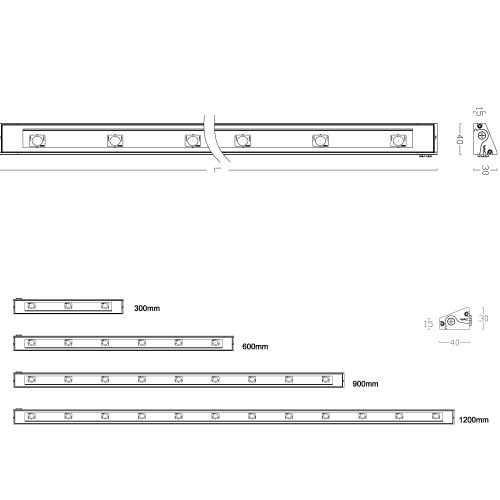

| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
AELV203-07 | 300 | 7(Max) | 3 | 455 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
AELV206-14 | 600 | 14(Max) | 6 | 890 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
AELV209-21 | 900 | 21(Max) | 9 | 1329 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
AELV212-28 | 1200 | 28(Max) | 12 | 1772 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side | 30 3000K 40 4000K | B Black |
Example: AELV203-07MT-CS30B
