BEACON X7

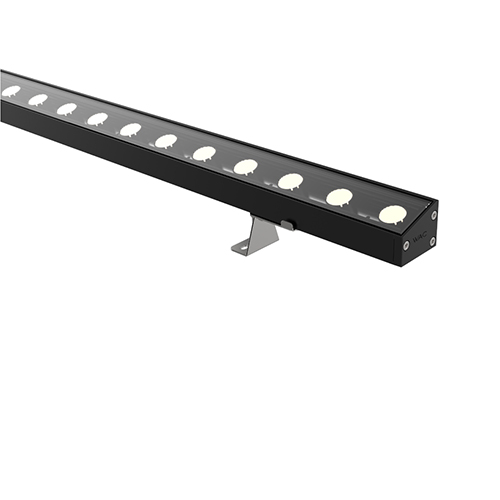

BEACON X7 Wash
AELW503/AELW505/AELW510 High Power Linear Light
Engineered for disciplined exterior performance, BEACON X7 Wash integrates high-efficiency LEDs and precision optics to provide broad, uniform architectural illumination. Even LED spacing ensures consistent output, while flexible cable routing and an integrated breather valve enhance long-term exterior reliability.
Specifications
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
AELW503-14 | 300 | 14(Max) | 6 | 949 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | W 11°*23° | B Bottom | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
AELW505-28 | 500 | 28(Max) | 12 | 1289 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | W 11°*23° | B Bottom | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
AELW510-56 | 1000 | 56(Max) | 24 | 3795 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | W 11°*23° | B Bottom | 27 2700K 30 3000K 40 4000K | BK Black |
Example: AELW503-14MTWB30BK
