SLANA

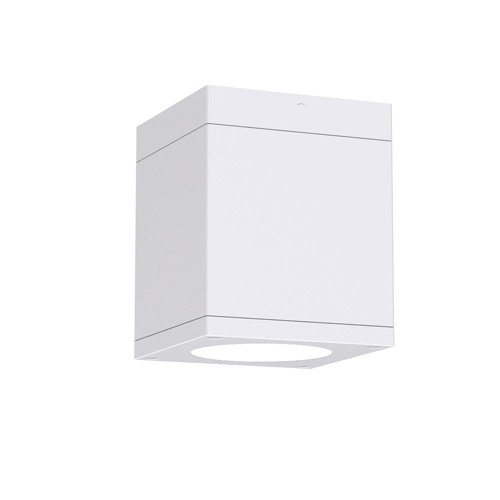

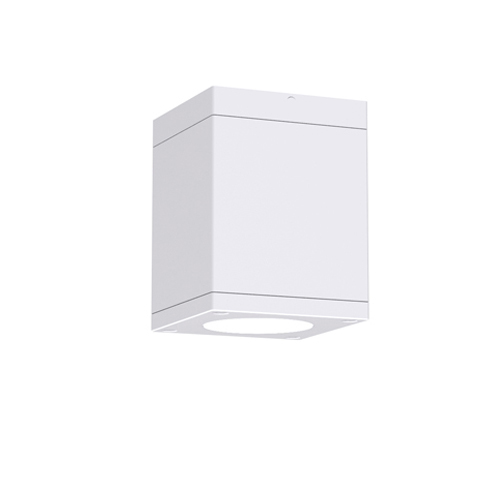

SLANA Square
AES2S/AES2M IP65 Square Surface-mounted Downlight
With its clean square geometry and refined detailing, SLANA Square introduces a decorative yet disciplined presence to surface-mounted lighting. Designed for ceiling or U-shaped bracket installation, it integrates seamlessly into structured architectural grids while maintaining visual clarity. A carefully engineered optical system ensures controlled illumination and consistent comfort, supported by adaptable accessories for flexible application. SLANA Square delivers reliable, specification-grade performance within a composed architectural form.
Specifications
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

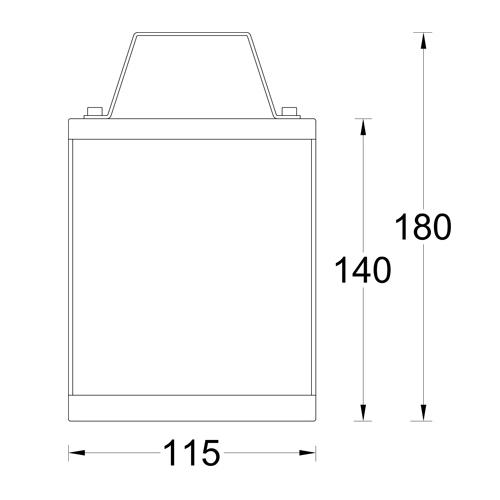

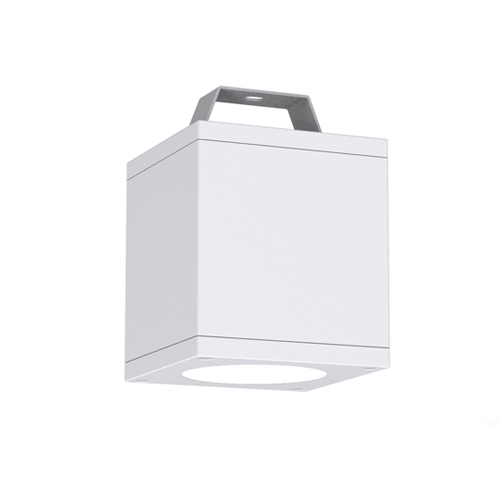

AES2S | U U-Shape Bracket C Ceiling Mounted | 27 25(Max) | COB | 2251 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 16° 2 21° 3 33° | 30 3000K 40 4000K | WT White BK Black |
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

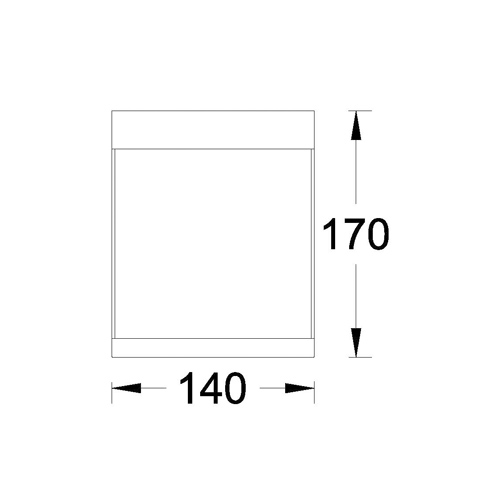

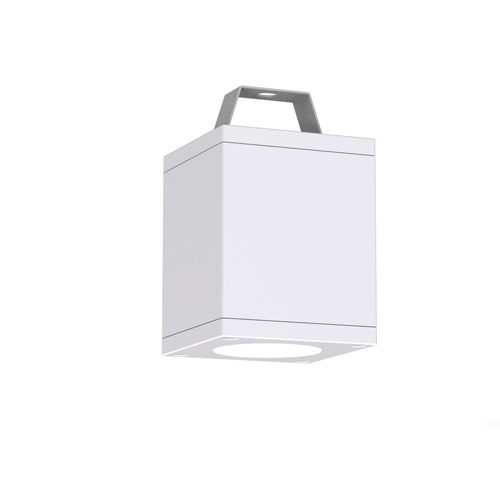

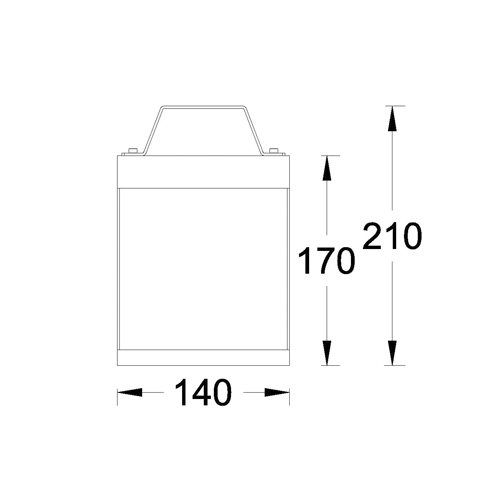

AES2M | U U-Shape Bracket C Ceiling Mounted | 36 36(Max) | COB | 2783 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 16° 2 30° 4 40° | 30 3000K 40 4000K | WT White BK Black |
Example: AES2MU-36EL130WT
