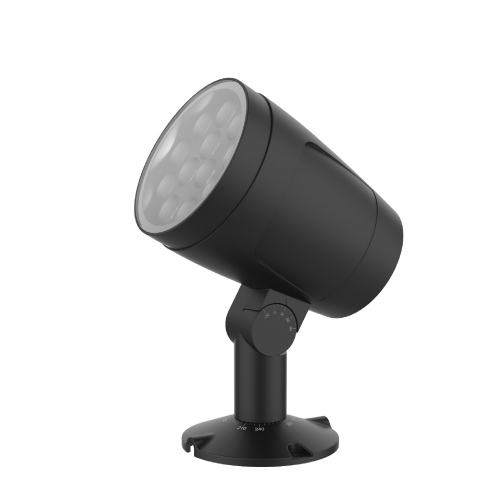

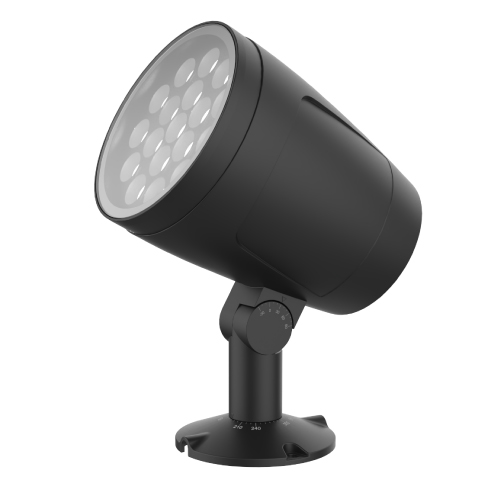

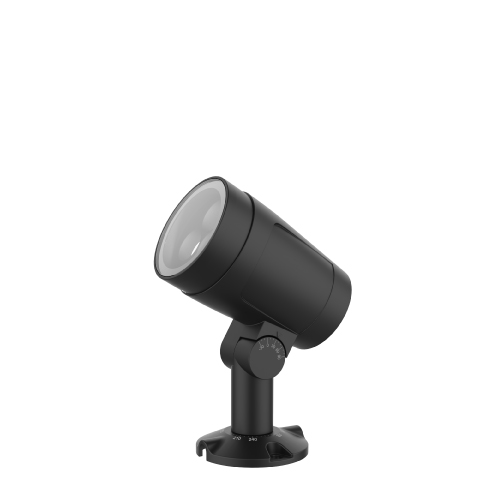

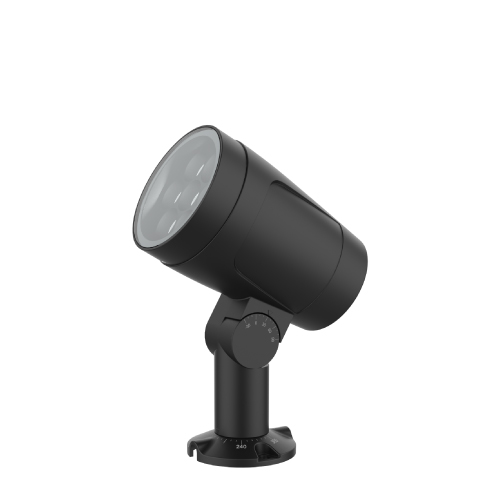

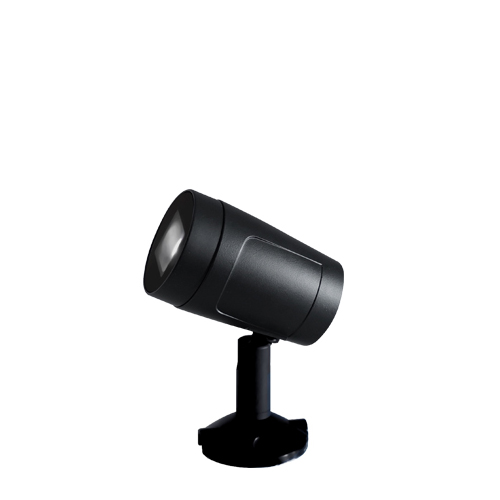

PANTHER Single
Features
Product Line Drawing
Specifications
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEP1TI-03 | 3(Max) | 1 | 159 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | S 7° 1 13° 3 30° 4 40° | 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEP1NI-08 | 8(MAX) | 3 | 441 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEP1SI-19 | 19(MAX) | 7 | 1096 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEP1MI-29 | 29(MAX) | 12 | 1725 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEP1LI-49 | 49(MAX) | 18 | 2912 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 13° 2 22° 3 34° 5 50° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEP5MI-65 | 65 65W(Max) | 18 | 4019 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | V 4° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Power (W) | LEDs(quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEP5MI-65 | 65 65W(Max) | 24 | 3954 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 6° 1 10° 2 22° 3 33° 4 47° J 14° x 44° | 27 2700K 30 3000K 40 4000K | BK Black |
Example: AEP1LI-49ELS30BK
