PANTHER

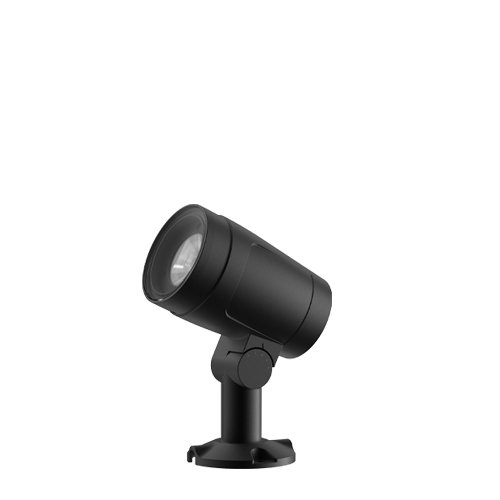

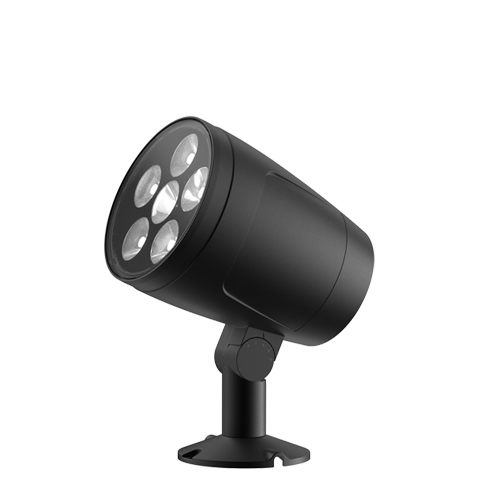

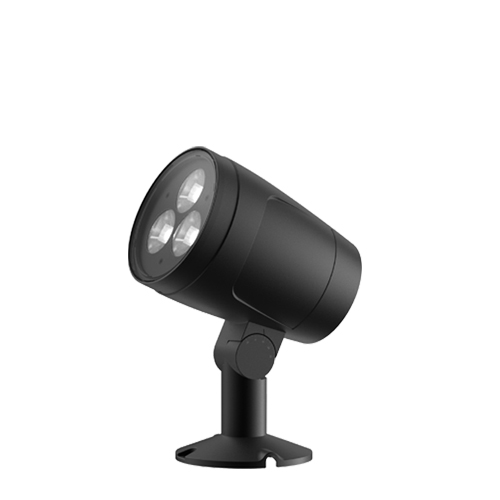

PANTHER RGBW 24
AEP3NI/AEP3MI/AEP3LI/24V DC/Φ80/Φ130/Φ160
Defined by precision and dynamic capability, PANTHER 24V RGBW integrates advanced multi-channel LED technology within a low-profile architectural form. Engineered for high optical efficiency, it supports vertical and horizontal mounting with precise rotational adjustment. Designed for expressive façade and landscape applications, PANTHER 24V RGBW delivers controlled color-changing illumination with refined exterior performance.
Features

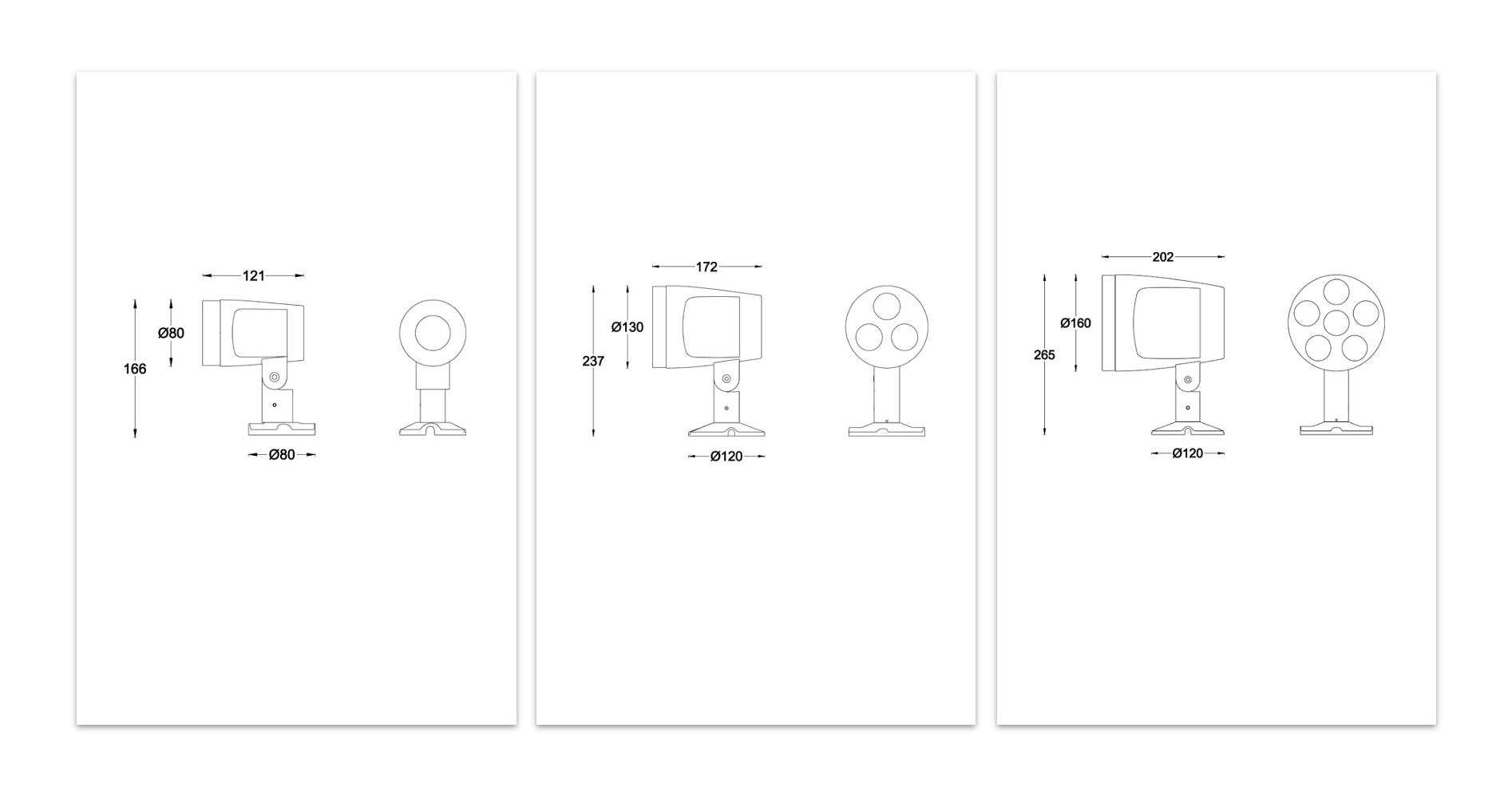

Product Line Drawing

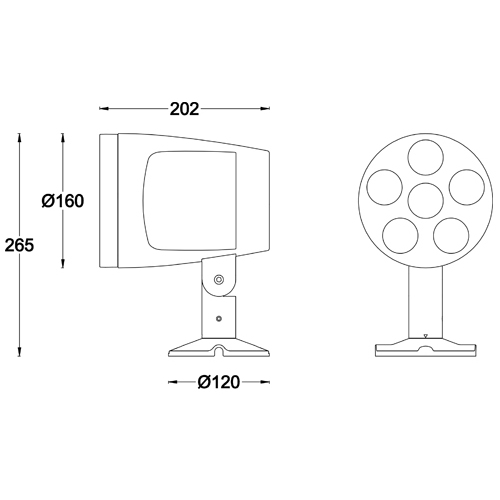

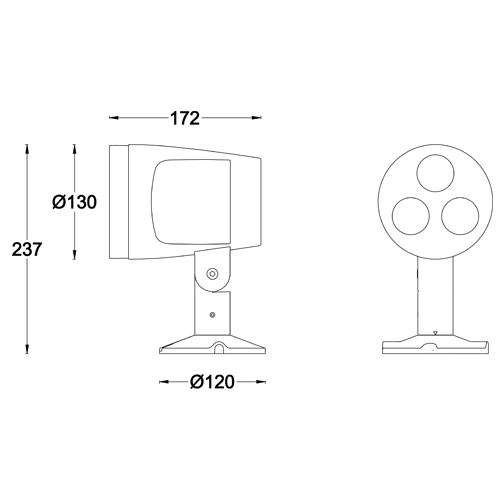

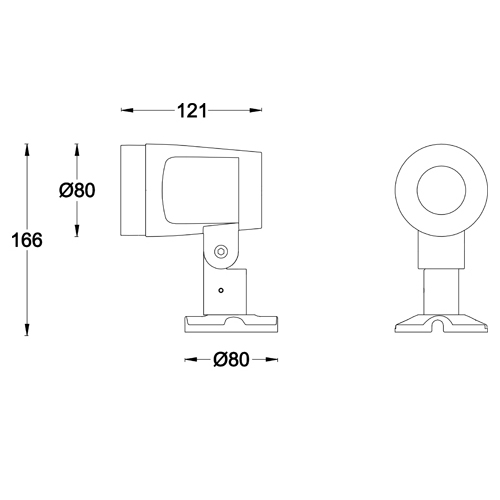

Φ80/Φ130/Φ160 Line Drawing Preview
Specifications
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
AEP3NI-07 | 5.5(Max) | 1 | 244 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
AEP3MI-20 | 20(Max) | 3 | 743 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
AEP3LI-40 | 31(Max) | 6 | 1566 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
Example: AEP3LI-40MT1F30BK
