FUEGO COMPACT

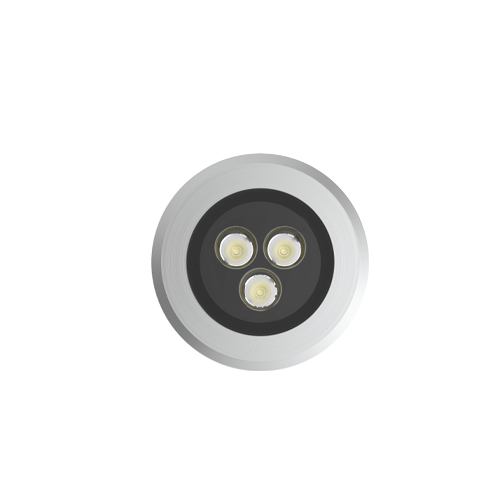

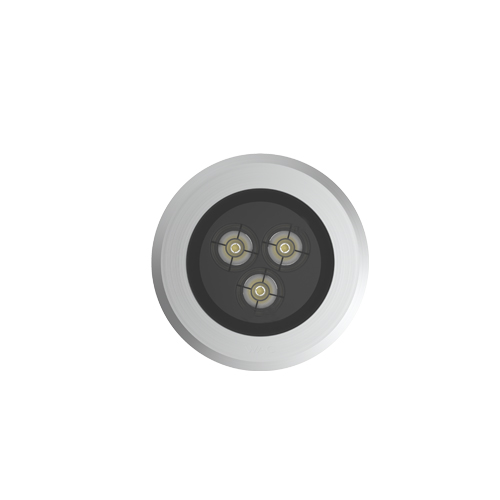

FUEGO COMPACT Uplight HP 110
AEIR5T/AEIR6T/Up Light/High Power/LED/Φ110
Engineered for higher-output architectural applications, FUEGO COMPACT Uplight HP 110 integrates a 316 stainless steel face frame with a die-cast aluminum body and protective powder coating. Rated for demanding outdoor environments, it supports substantial load resistance and high-impact durability. A precision optical system with anti-glare performance ensures disciplined uplighting, while the pre-buried sleeve simplifies installation and maintenance across plazas, parks, and commercial façades.
Videos
FUEGO COMPACT
Specifications
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIR5T High Lumens | F Fixed | 06 6W(Max) | 3 | 455 | EL ON-OFF 220V AC Power Supply | S 6° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIR5T High Lumens | F Fixed | 05 5W(Max) | 3 | 380 | ML DMX512 Dimming | S 6° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIR6T Super Comfort | F Fixed | 06 6W(Max) | 3 | 349 | EL ON-OFF 220V AC Power Supply | S 6° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIR6T Super Comfort | F Fixed | 05 5W(Max) | 3 | 291 | ML DMX512 Dimming | S 6° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
Example: AEIR6TF-06EL127SS
