FUEGO COMPACT

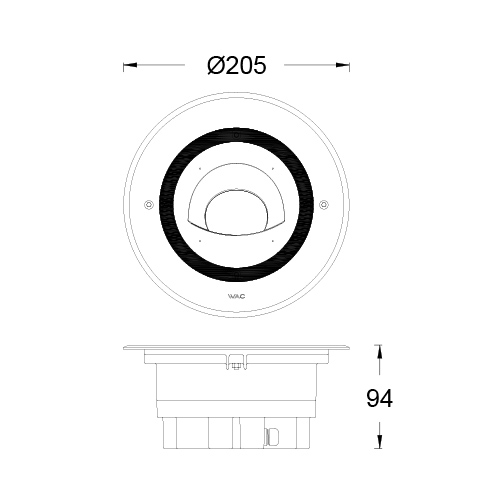

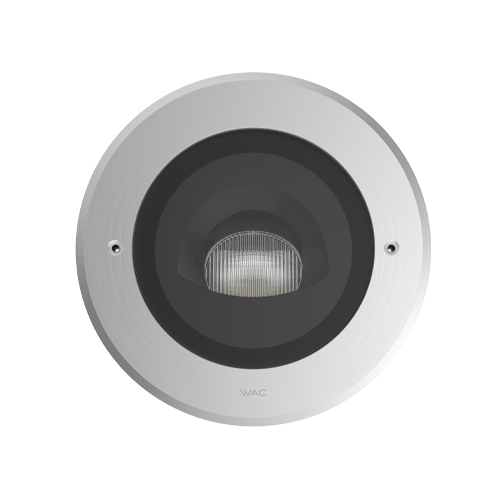

FUEGO COMPACT Wall-Washer COB 205
AEIR7S/Wall Washer Light/COB/Φ205
Engineered for powerful vertical articulation, FUEGO COMPACT Wall-Washer COB 205 pairs a 316 stainless steel trim with a reinforced die-cast housing for demanding exterior conditions. Rated IP68 and IK10 with load resistance up to 2000kg, it delivers uniform wall-wash performance through a patented optical system calibrated at a 1:1:3 distance-to-height ratio. An embedded sleeve simplifies installation and maintenance in plazas, façades, and civic environments.
Videos
FUEGO COMPACT
Specifications
Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIR7S | F Frame | 18 18(Max) | COB | 920 | EL ON-OFF | W Wall Washer | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
Example: AEIR7SF-18ELW27SS
