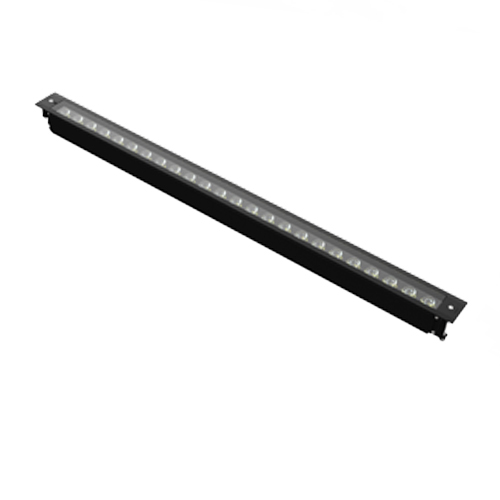

FUEGO PRO Linear AEIL4
Specifications
| Model | Length (mm) | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIL403 | 250 | F Fixed | 12(Max) | 5 | 653 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | S 8° 1 15° 3 30° 4 40° E 9°X15° G 10°X50° W Wall Washer | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIL405 | 500 | F Fixed | 28(Max) | 12 | 1953 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 8° 1 15° 3 30° 4 40° E 9°X15° G 10°X50° W Wall Washer | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIL410 | 1000 | F Fixed | 56(Max) | 24 | 3956 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 8° 1 15° 3 30° 4 40° E 9°X15° G 10°X50° W Wall Washer | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIL403 | 250 | A Adjustable | 08(Max) | 5 | 553 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | S 8° 1 15° 3 30° 4 40° E 9°X15° G 10°X50° W Wall Washer | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIL405 | 500 | A Adjustable | 20(Max) | 12 | 1654 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 8° 1 15° 3 30° 4 40° E 9°X15° G 10°X50° W Wall Washer | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEIL410 | 1000 | A Adjustable | 40(Max) | 24 | 3350 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply EL ON-OFF 220V AC Power Supply ML DMX512 Dimming 220V AC Power Supply | S 8° 1 15° 3 30° 4 40° E 9°X15° G 10°X50° W Wall Washer | 27 2700K 30 3000K 40 4000K | BK Black |
Example: AEIL403A-08ETS30BK
