ULTRA TUNABLE

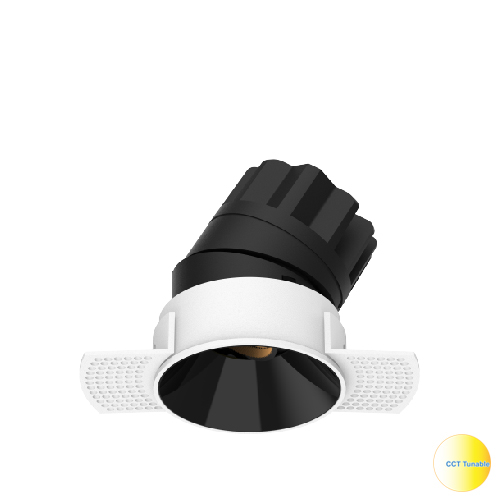

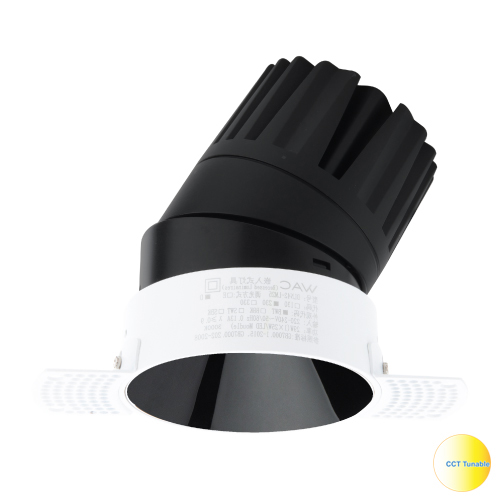

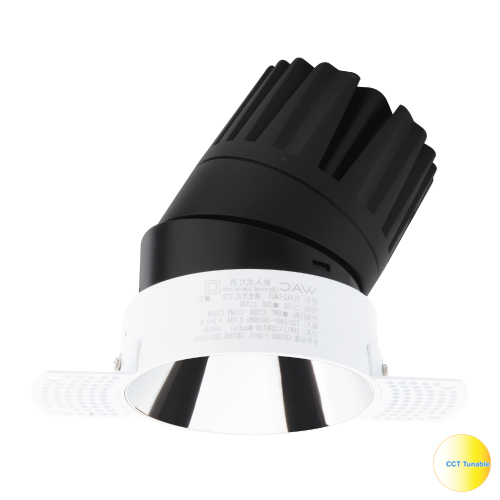

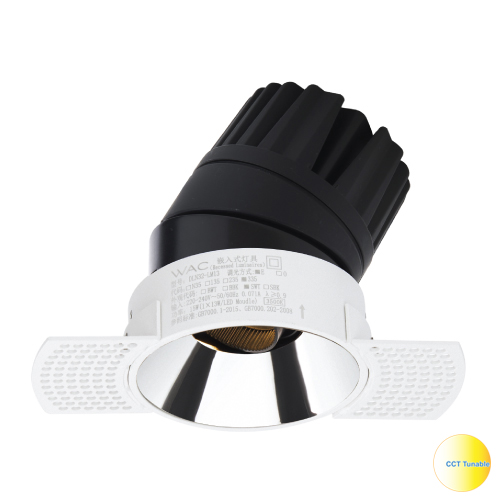

ULTRA Tunable Round Fixed/Adj.
ADLN22/ADLN32/ADLN42 2/3/4" Tunable White
Designed for versatility without visual compromise, ULTRA Tunable Round Fixed/Adj. features a unique tilt adjustment system that allows a single luminaire to serve multiple lighting functions. Fully sealed construction eliminates light leakage throughout movement, preserving beam integrity and ceiling precision. Advanced darklight technology enhances glare control, while tunable white capability supports layered lighting strategies across hospitality, residential, and commercial environments.
Features

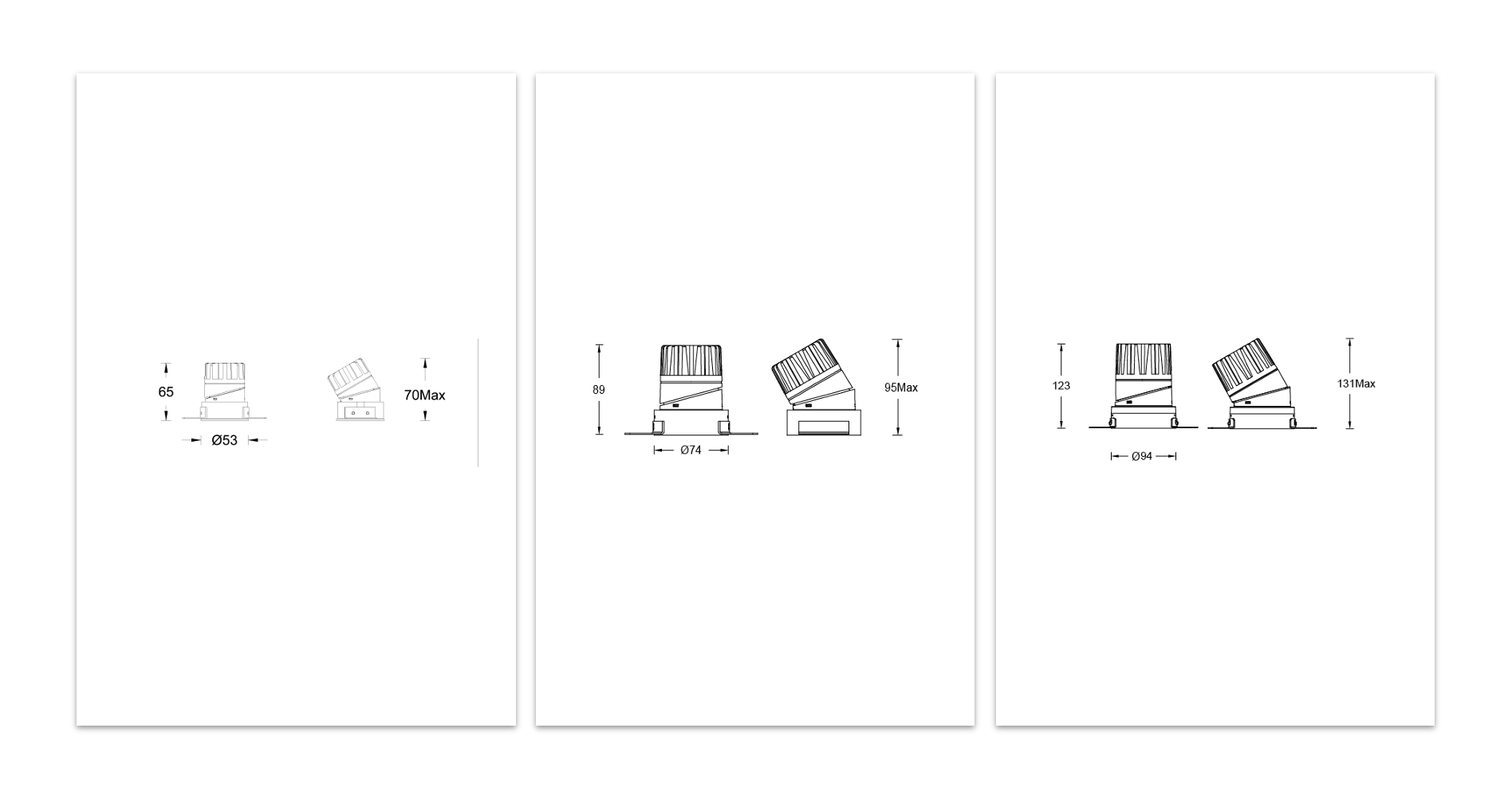

Product Line Drawing

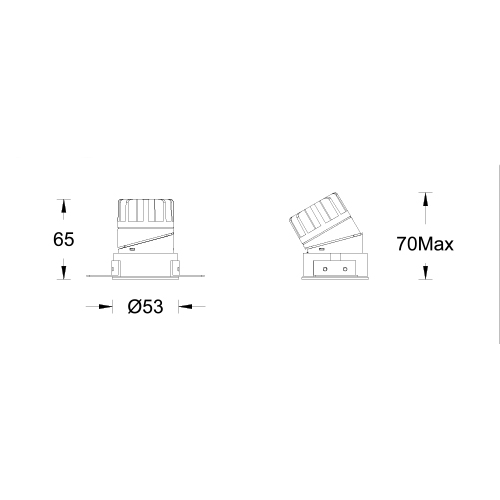

2/3/4 Line Drawing Preview
The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Through the patented tilt angle adjustment design, it makes to realize both fixed and adjustable downlight. Sealed design of the whole fixture ensures no light leakage in the process of tilt the angle.
No messy fish tail light spot
The spot remains clean and intact complete status throughout the ULTRA adjustment process

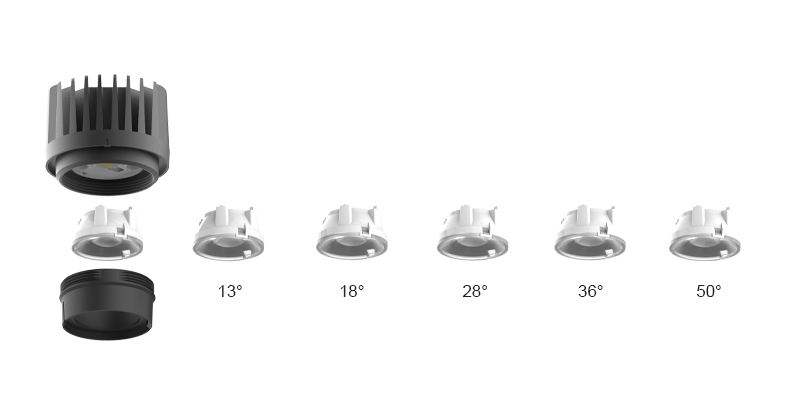

Easy to get multiple light effect, one light for multi-purpose
Do not use any external force, add three times optical accessories to get rich light effect. Even the lens module can be disassembled and replaced with bare hands on site, one light can be used for multiple purposes.
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 2 2” | 2 Round Trimless | LM07 COB 07W | A DALI N No Driver | 2 24° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 3 3” | 2 Round Trimless | LM13 COB 13W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 4 4” | 2 Round Trimless | LM25 COB 25W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Example: ADLN32-LM13A2CCSWT
Note: Factory standard for 3" 18° is with honeycomb.
