ULTRA TUNABLE

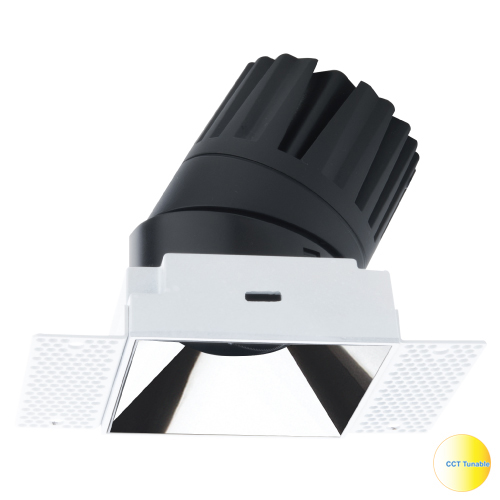

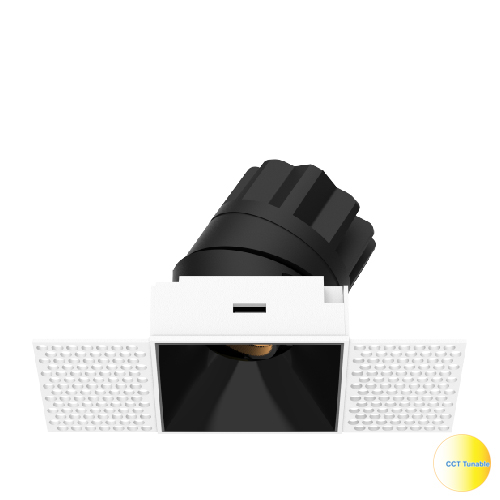

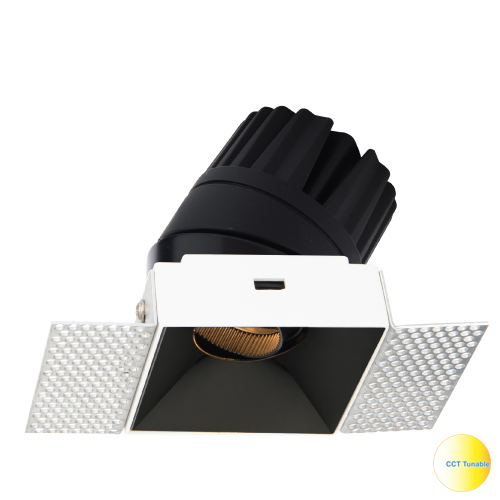

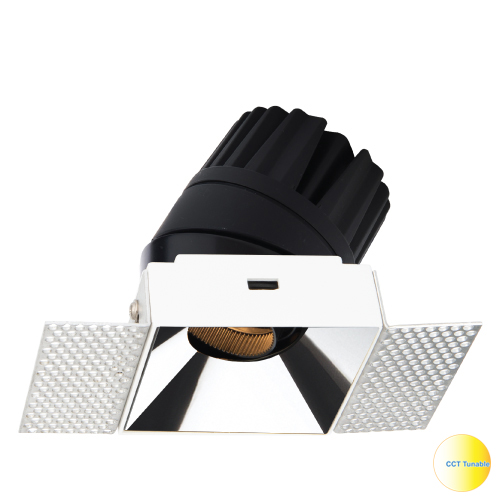

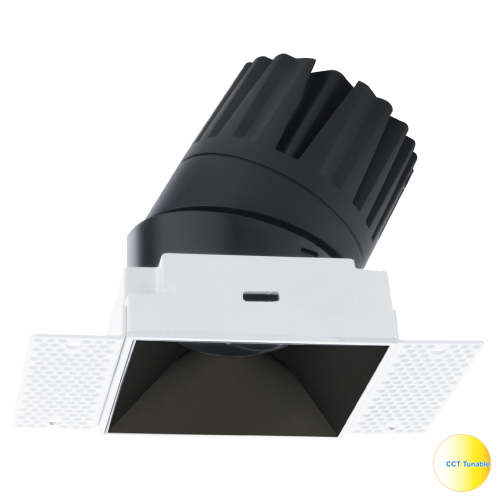

ULTRA TUNABLE Square Trimless Fixed & Adj.
ADLN26/ADLN36/ADLN46 2/3/4" Tunable
Versatility is engineered into every detail of ULTRA TUNABLE Square Trimless Fixed & Adj.. A unique angle adjustment system allows a single luminaire to perform multiple lighting roles while maintaining a fully sealed optical chamber that prevents light leakage during aiming. Modular construction enables on-site replacement of reflectors and light engines, supporting long-term adaptability. Concealed optical technology and tunable white capability deliver refined glare control and color consistency across hotels, villas, and commercial interiors.
Features

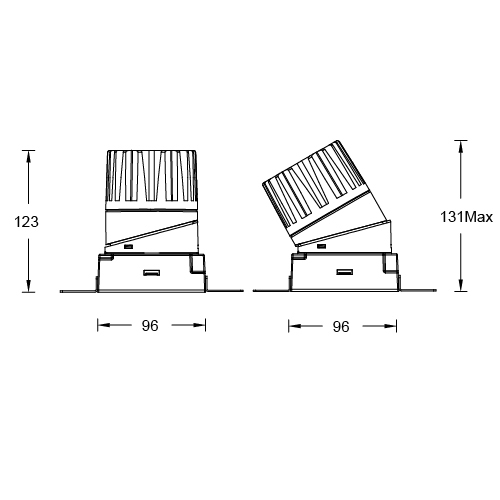

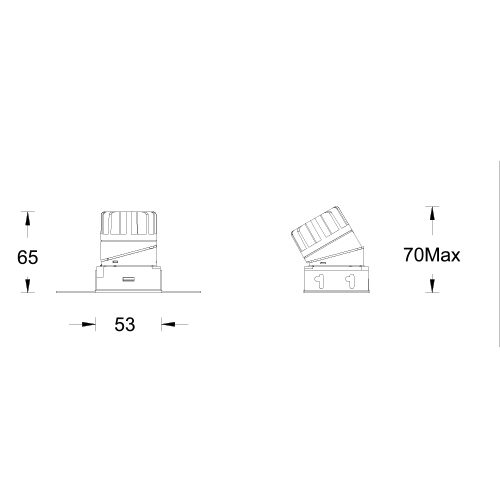

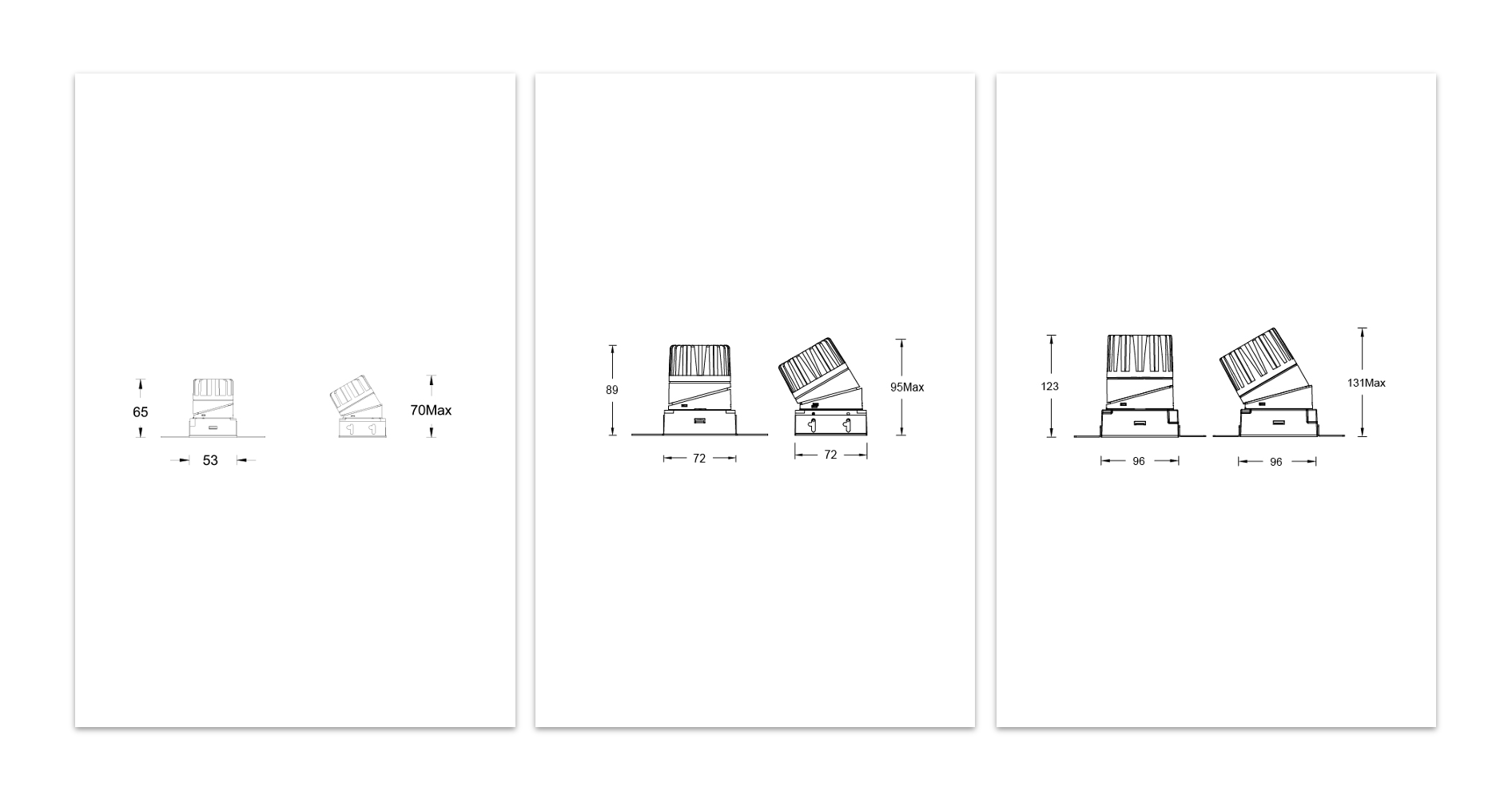

Product Line Drawing
2/3/4 Line Drawing Preview
The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Through the patented tilt angle adjustment design, it makes to realize both fixed and adjustable downlight. Sealed design of the whole fixture ensures no light leakage in the process of tilt the angle.
No messy fish tail light spot
The spot remains clean and intact complete status throughout the ULTRA adjustment process

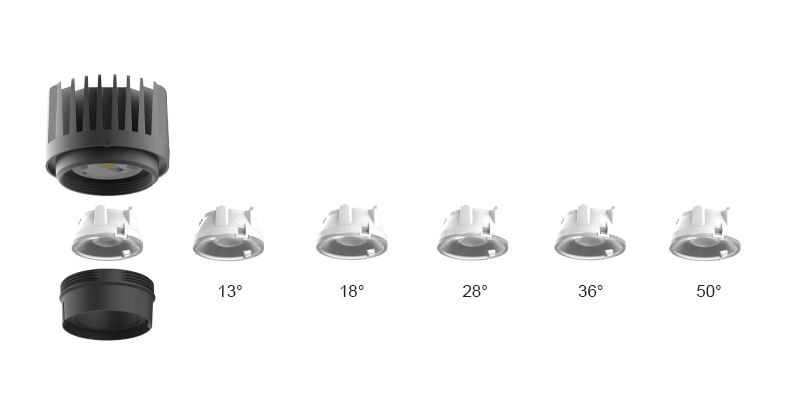

Easy to get multiple light effect, one light for multi-purpose
Do not use any external force, add three times optical accessories to get rich light effect. Even the lens module can be disassembled and replaced with bare hands on site, one light can be used for multiple purposes.
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 2 2” | 6 Rectangular Trimless | LM07 COB 07W | A DALI N No Driver | 2 24° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 3 3” | 6 Rectangular Trimless | LM13 COB 13W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 4 4” | 6 Rectangular Trimless | LM25 COB 25W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Example: ADLN36-LM13A2CCSWT
Note: Factory standard for 3" 18° is with honeycomb.
