ULTRA ANTI-FOG

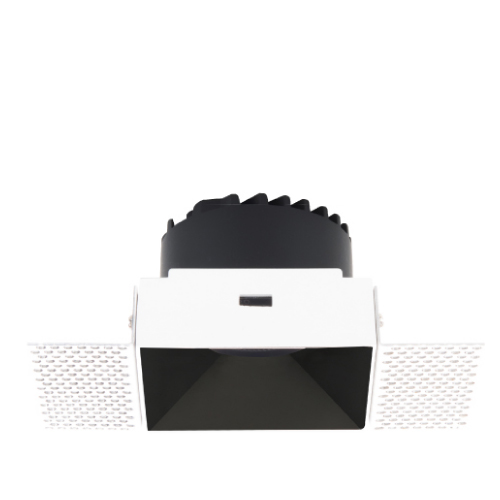

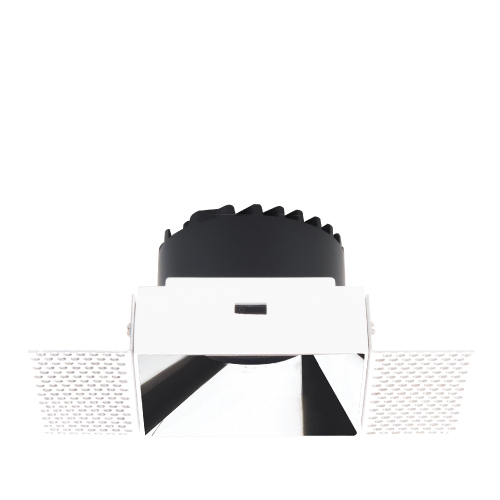

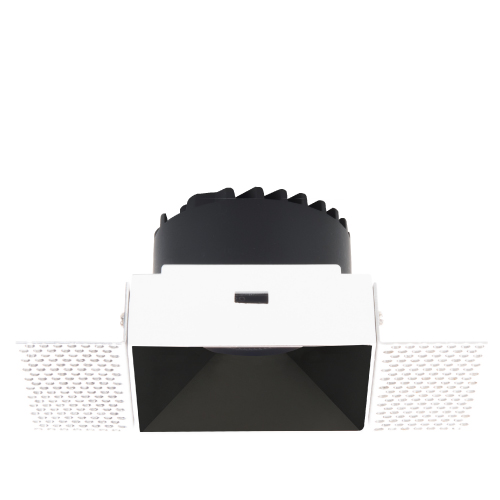

ULTRA ANTI-FOG Square Fixed

ADLN38/ADLN48 Square Trimless Anti-fog Compact Downlight
Architectural precision extends into challenging ceiling conditions with ULTRA ANTI-FOG Square Fixed. Engineered for shallow spaces and anti-fog environments, its modular construction supports flexible on-site reconfiguration. Concealed optical technology enhances glare control and chromatic stability, delivering comfortable, consistent illumination in hospitality and commercial settings.

Specifications


Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3  3”

8  Rectangular Trimless



LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D  0-10V Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black


Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3  3”

8  Rectangular Trimless



LM13  COB 13W

N  No Driver

A  DALI

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50   5000K

B  Black

S   Specular



WT  White

BK   Black


Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4  4”

8  Rectangular Trimless



LM08  COB 8W

E  On-Off

D  0-10V Dimming

S   8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4  4”

8  Rectangular Trimless



LM13  COB 13W

LM18  COB 18W

LM25  COB 25W

E  On-Off

D  0-10V Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLN

Downlight

N series

4  4”

8  Rectangular Trimless



LM25  COB 25W

N  No Driver

A  DALI

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black

Example: ADLN38-LM07E230SWT

Note: Factory standard for 8/13/18° is with honeycomb.
