3-Circuit Track System

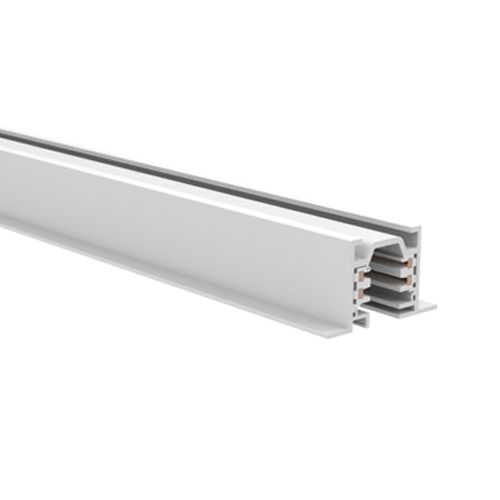

3-CIRCUIT TRACK Recessed
AWT1M/AWT2M/AWT3M W Series/Recessed Installation
Engineered for seamless architectural integration, 3-CIRCUIT TRACK Recessed features high-purity aluminum extrusion for durability and structural performance. The integrated circuit selector allows quick configuration between circuits, while a broad range of accessories supports adaptable installation across varied ceiling types. Designed for flexible commercial and gallery lighting systems.
Features
List of accessories, please refer to the technical specifications for details
<p>A wide range of accessories and functions for many types of ceiling installation.</p>
<table>
<tbody>
<tr>
<td>Model</td>
<td>Description</td>
<td>Function</td>
</tr>
<tr>
<td>WEC</td>
<td>End cap</td>
<td>To cover the end of a track run.</td>
</tr>
<tr>
<td>WEDL</td>
<td>Live end connector left</td>
<td>To start a run.</td>
</tr>
<tr>
<td>WEDR</td>
<td>Live end connector right</td>
<td>To start a run.</td>
</tr>
<tr>
<td>WPC</td>
<td>"I" power connector</td>
<td>Straight line connector used to join two sections of track with electrical continuity.</td>
</tr>
<tr>
<td>WLLC</td>
<td>"L" connector left</td>
<td> To connect two track sections at 90° for a left turn. Power feedable.</td>
</tr>
<tr>
<td>WLTC</td>
<td>"T" connector left</td>
<td>To join three track sections all at 90°. Power feedable.</td>
</tr>
<tr>
<td>WRLC</td>
<td>"L" connector right</td>
<td>To connect two track sections at 90º angle for a right turn.Power feedable.</td>
</tr>
<tr>
<td>WRTC</td>
<td>"T" connector right</td>
<td>To join three track sections all at 90º. Power feedable.</td>
</tr>
<tr>
<td>WXC </td>
<td>"X" connector</td>
<td>To connect four track sections into a cross configuration. Power feedable.</td>
</tr>
<tr>
<td>WIC </td>
<td>"I" connector</td>
<td>Power entry point at the connection of two tracks. To connect two track sections end-to-end to keep a straight line.Power feedable.</td>
</tr>
</tbody>
</table>

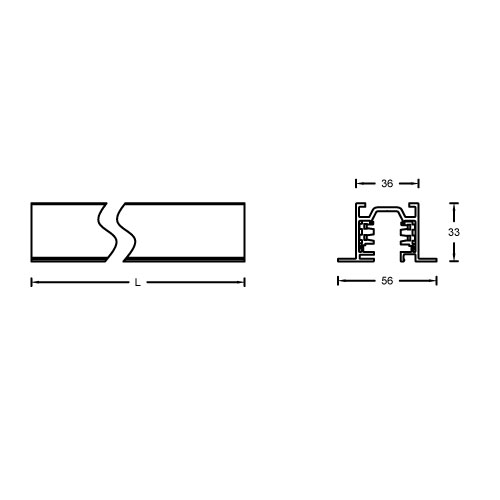

Specifications
| Model | Finish | Weight | Length (mm) |
AWT1M-RT-2 AWT2M-RT-2 AWT3M-RT-2 | BK, PT, WT BK, PT, WT BK, PT, WT | 1.15kg 2.30kg 3.45kg | 1000mm 2000mm 3000mm |
Example: AWT1M-RT2WT
