SHINE PRO

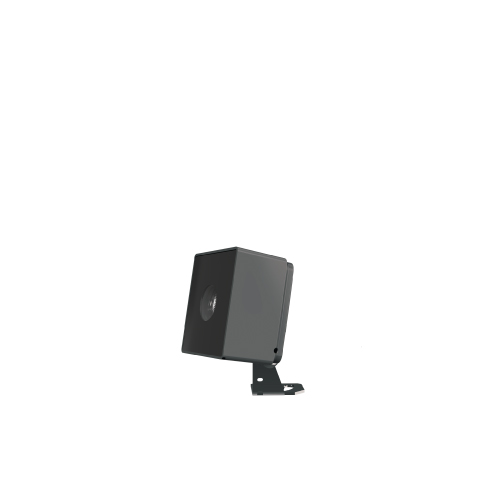

SHINE PRO Mini
EF3N01 Low Power Square Floodlight
Minimal in appearance yet engineered for performance, SHINE PRO Mini features a refined all-glass surface that aligns seamlessly with contemporary architectural design. Concealed modular construction preserves visual clarity while enhancing serviceability. Optimized thermal management supports long-term reliability and sustained output. With vertical, horizontal, and multi-directional aiming capabilities—plus a broad range of sizes, wattages, and beam distributions—SHINE PRO Mini delivers specification-grade flexibility within a clean architectural form.
Features
Double protection, built-in anti-glare structure + special glass surface
Built-in anti-glare module maximizes to reducte the glare damage, the surface of the special glass to ensure light transmittance rate at the same time and eliminate the surface of the stray light
Ultra-narrow beam angle 4°
Multiple beam angle options, 4° extra-narrow beam angle
Simultaneous support for the adjustment of three axes
Single light supports 0-355° horizontal, -30°-150° vertical and 0-90° head adjustment.
Specifications
Model | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF3N01 | 03 03W(Max) | 1 | 158 | ET ON-OFF MT DMX512 Dimming | V 4° S 6° 1 13° 2 20° 3 30° J 8° x 27° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF3N01 | 02 02W(Max) | 1 | 130 | MT DMX512 Dimming 24V DC Power Supply | 1 19° 2 29° 3 37° 5 53° F 23° x 36° | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
Example: EF3N01-03ET-V27BK
