VOLTA Square Fixed

ADLT45/ADLT55/ADLT65 4/5/6"
Precision and restraint converge in VOLTA Square Fixed. A streamlined square aperture integrates a high-transmittance lens and black mirror reflector to deliver strong illumination with disciplined glare control. The sealed optical chamber protects performance in humid environments, while modular reflector and accessory options enhance on-site flexibility.

Features

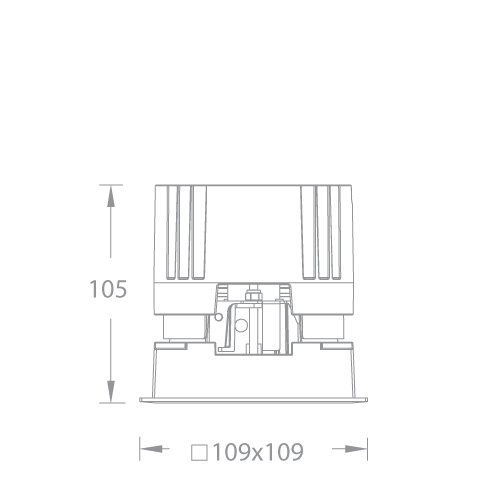

Line drawing of VOLTA square fixed series

Line drawing of VOLTA square fixed series

Detailed Line Drawing for 4/5/6" Fixture
High thermal performance

High thermal performance

Convection cooling + Enclosed chimney cooling to enhance thermal performance
IP44 sealed light source chamber design

IP44 sealed light source chamber design

Ensures stable performance in humid environment
No light spot spill out (right VOLTA)

No light spot spill out (right VOLTA)

Actual light effect with clean, soft spot and no stray light
Adjustment without light leakage (right VOLTA)

Adjustment without light leakage (right VOLTA)

Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle

Videos

VOLTA

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

4 4”

5 Square Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

4 4”

5 Square Trim

LM13  COB 13W

LM18  COB 18W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

4 4”

5 Square Trim

LM18  COB 18W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

5 5”

5 Square Trim

LD24  LED 24W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

5 5”

5 Square Trim

LM18  COB 18W

LM25  COB 25W

LM32  COB 32W


E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

5 5”

5 Square Trim

LM32  COB 32W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

6 6”

5 Square Trim

LD32  LED 32W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50   5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

6 6”

5 Square Trim

LM32  COB 32W

LM43  COB 43W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

6 6”

5 Square Trim

LM43  COB 43W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Example: ADLT65-LM43E230SWT
