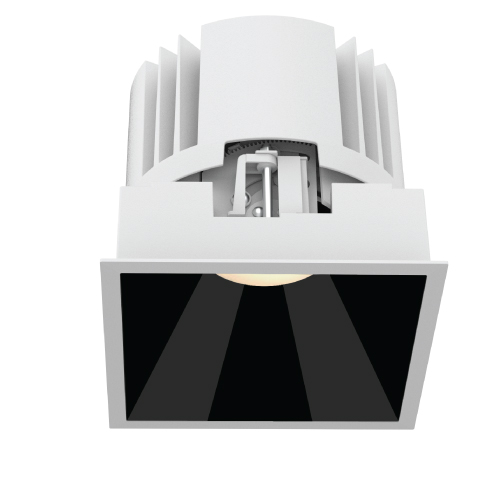

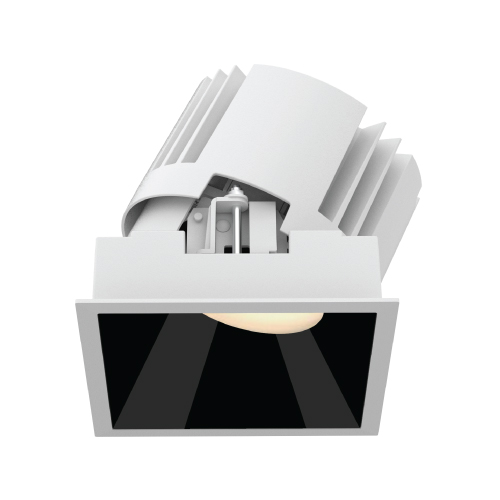

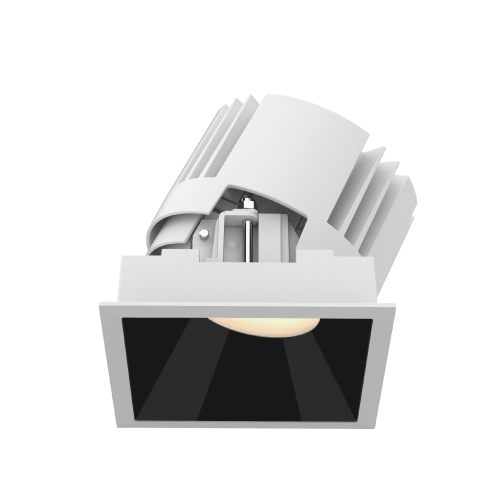

VOLTA Square Adjustable

ADDT45/ADDT55/ADDT65 4/5/6" Square Trm Adjustable Downlight
Targeted performance meets refined design in VOLTA Square Adjustable. The streamlined square profile houses a precision lens and black mirror reflector for controlled output and exceptional glare suppression. A sealed light engine maintains performance stability, while interchangeable optical components allow adaptable configuration in the field.

Features

Line drawing of VOLTA square adjustable series

Line drawing of VOLTA square adjustable series

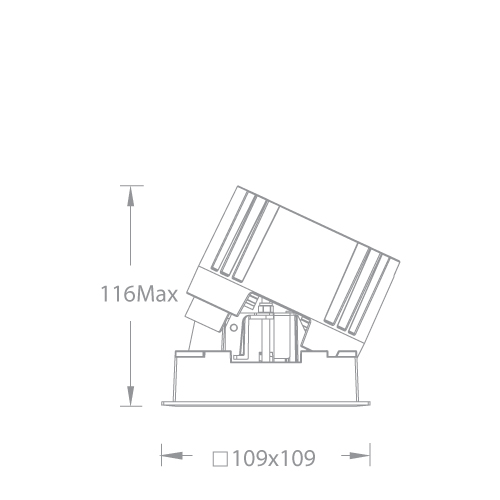

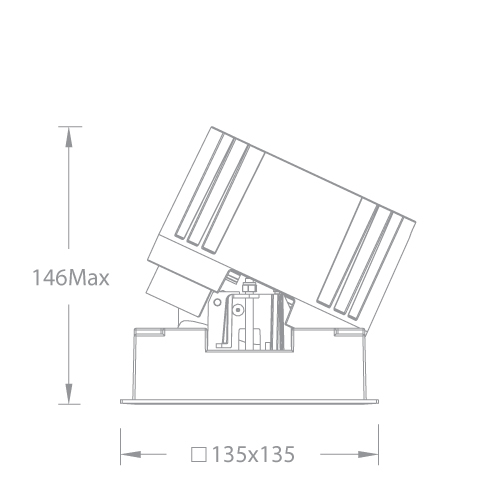

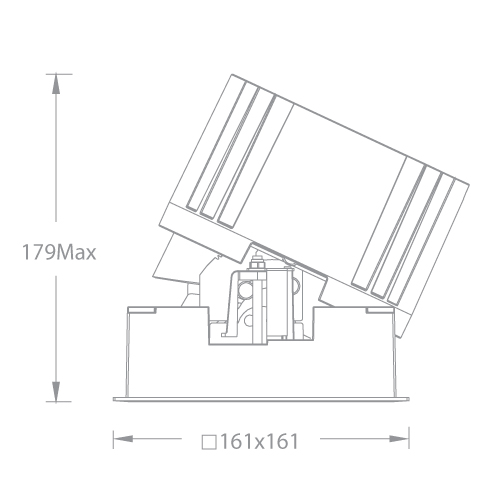

Detailed Line Drawing for 4/5/6" Fixture
Unique appearance design

Unique appearance design

Convection cooling + Enclosed chimney cooling to enhance thermal performance
IP44 sealed light source chamber design

IP44 sealed light source chamber design

Ensures stable performance in humid environment
No light spot spill out (right VOLTA)

No light spot spill out (right VOLTA)

Actual light effect with clean, soft spot and no stray light
Adjustment without light leakage (right VOLTA)

Adjustment without light leakage (right VOLTA)

Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle

Videos

VOLTA

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4 4”

5 Square Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4 4”

5 Square Trim

LM13  COB 13W

LM18  COB 18W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4 4”

5 Square Trim

LM18  COB 18W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

5 Square Trim

LD24  LED 24W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

5 Square Trim

LM18  COB 18W

LM25  COB 25W

LM32  COB 32W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

5 Square Trim

LM32  COB 32W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

6 6”

5 Square Trim

LD32  LED 32W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

6 6”

5 Square Trim

LM32  COB 32W

LM43  COB 43W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

6 6”

1 Round Trim

LM43  COB 43W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Example: ADDT65-LM43E230SWT
