FALCON SQUARE

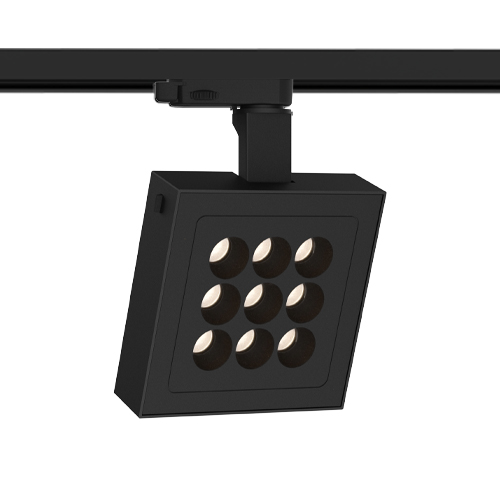

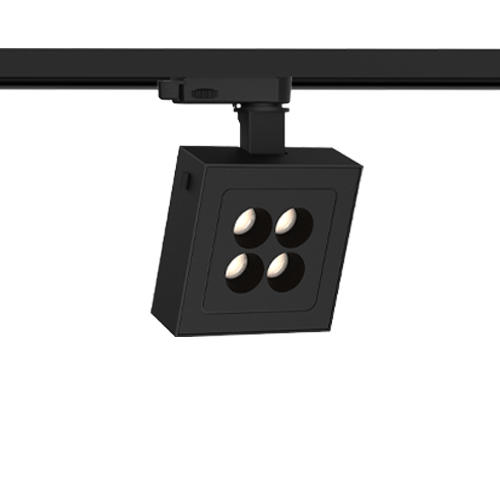

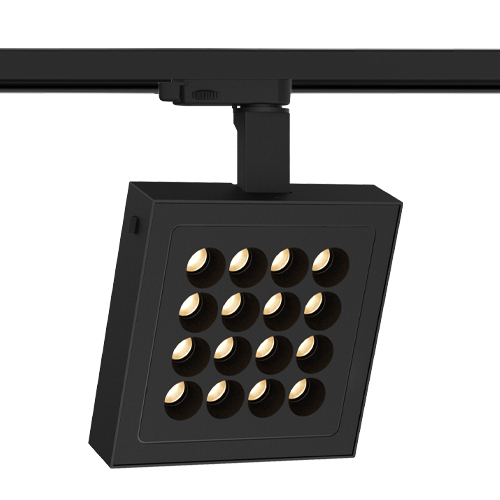

FALCON Square Spot

ATL65S/ATL66S/ATL67S/
At the pinnacle of WAC’s museum-grade lighting portfolio, FALCON Square Spot embodies quiet precision and refined integration. The series reflects a disciplined design language—highly integrated, minimal, and technically assured. Conceived for curated environments, it delivers controlled illumination without distraction, allowing architecture and artwork to remain the focus. Sophisticated in performance yet restrained in presence, FALCON Square Spot offers specification-grade excellence without overt display.

Features

Industry First, SUBROSA Invisible Light Technology

Industry First, SUBROSA Invisible Light Technology

WAC LIGHTING has the industry's first SUBROSA technology. Accurately calculating and controlling light, deep anti-glare, greatly improving the light experience.
Multiple options of beam angle, tailor-made for different sizes of exhibits.

Multiple options of beam angle, tailor-made for different sizes of exhibits.

Ultra-narrow beam angle of 4°, up to 60°. Elliptical light distribution and wall-washing light distribution, "tailored" for different sizes of exhibits.Excellent stray light control, light and shadow flow, don't take over the host's place, make the details to the extreme.
Multiple options of light distribution accessories to choose

Multiple options of light distribution accessories to choose

Specifications

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL65S

FALCON SQUARE

LD03  LED 3W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

V    4°

9  90

A  97

30  3000K

40   4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL65S

FALCON SQUARE

LD08 LED 8W

LD12  LED 12W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

S   7°

1   14°

2   20°

3   30°

4   40°

G  20*55°

E  10*30°

9  90

A  97

30  3000K

40   4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL66S

FALCON SQUARE

LD12  LED 12W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

V    4°

9  90

A  97

30  3000K

40   4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL66S

FALCON SQUARE

LD18  LED 18W

LD27  LED 27W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

S   7°

1   14°

2   20°

3   30°

4   40°

G  20*55°

E  10*30°

9  90

A  97

30  3000K

40  4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL67S

FALCON SQUARE

LD27  LED 27W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

V  4°

9  90

A  97

30  3000K

40  4000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

ATL67S

FALCON SQUARE

LD32  LED 32W

LD43  LED 43W

O  On-boarding

D  0-10V Dimming

B  Wireless

A  DALI

S   7°

1  14°

2  20°

3  30°

4  40°

G  20*55°

E  10*30°

9  90

A  97

30  3000K

40  4000K

WT  White

BK  Black

Example: ATL67SLD32-O2930WT
