SLANA PRO

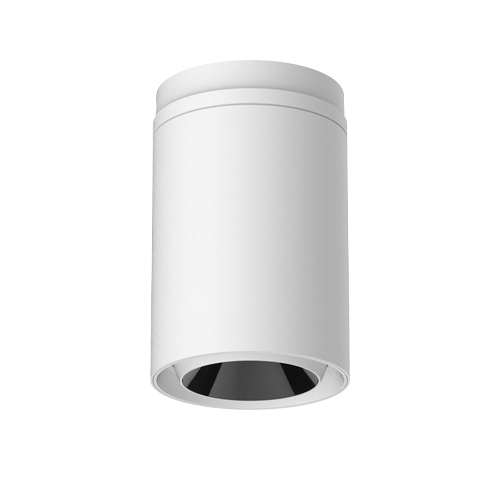

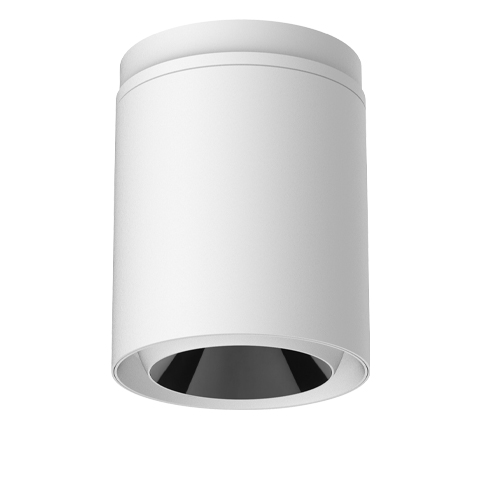

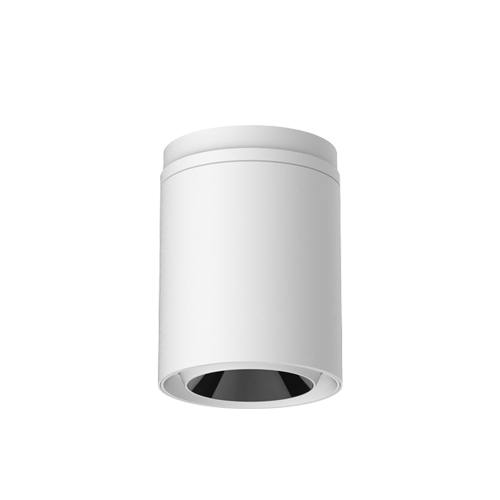

SLANA PRO Round Adjustable

AES3N/AES3S/AES3M IP65 Fixed and Adjustable 2IN1 Surface-mounted Downlight
Engineered for resilience and precision, SLANA PRO Round Adjustable is an IP65-rated surface-mounted downlight integrating both fixed and adjustable functionality within a refined architectural form. Its disciplined structural design and advanced optical system deliver controlled illumination with consistent visual comfort, even in demanding environments. Designed for reliability in high-ceiling public spaces, SLANA PRO Round Adjustable balances durability with architectural clarity in a flexible, specification-grade solution.

Features

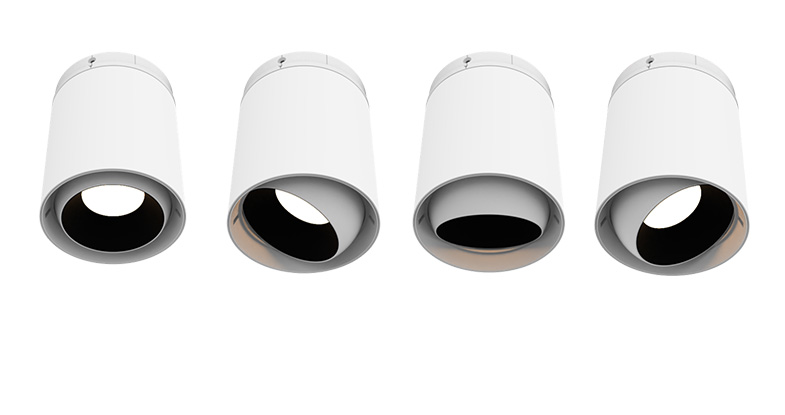

Integration of fixed angle adjustable downlight

Integration of fixed angle adjustable downlight

Horizontal Adjustment 0-355°, Vertical Adjustment ± 25°

Specifications

Model

Comment

Power

(W)

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Reflector

Finish

AES3N

C Ceiling Mounted

13 13(Max)

COB

690

EL ON-OFF

220V AC Power Supply

DL 0-10V Dimming

220V AC Power Supply

1 13°

2 20°

3 30°

4 40°

30 3000K

40 4000K

B  Black

S  Specular

WT    White

Model

Comment

Power

(W)

LEDs

(quantity)

Max Lumen

(lm)

Control Systems

Beam

CCT

Reflector

Finish

AES3S

C Ceiling Mounted

18 18(Max)

COB

1500

EL ON-OFF

220V AC Power Supply

DL 0-10V Dimming

220V AC Power Supply

1 19°

2 26°

3 38°

5 52°

30 3000K

40 4000K

B  Black

S  Specular

WT    White

Model

Comment

Power

(W)

LEDs

(quantity)

Max Lumen

(lm)

Control Systems

Beam

CCT

Reflector

Finish

AES3M

C Ceiling Mounted

33 33(Max)

COB

2500

EL ON-OFF

220V AC Power Supply

DL 0-10V Dimming

220V AC Power Supply

1 19°

2 26°

3 38°

5 52°

30 3000K

40 4000K

B  Black

S  Specular

WT    White

Example: AES3MC-33EL130BWT
