VOLTA TUNABLE

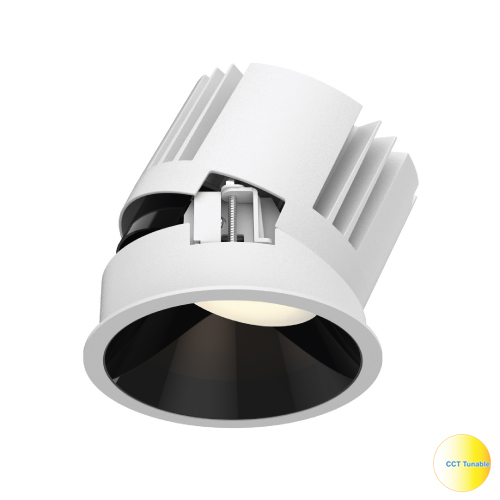

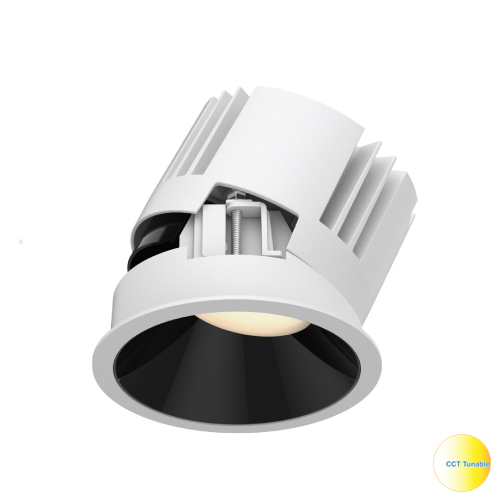

VOLTA Tunable Round Adjustable
ADDT41/ADDT51/ADDT61 4/5/6" Round Narrow Trim Tunable Adjustable Downlight
Purpose-built for dynamic environments, VOLTA Tunable Round Adjustable pairs a streamlined narrow-trim profile with precision optical engineering. Its lens and black mirror reflector system deliver controlled illumination with advanced glare suppression, maintaining comfort across the full adjustment range. A sealed light engine safeguards performance in humid or demanding conditions. Interchangeable reflectors and accessories support adaptable beam control and simplified serviceability throughout the life of the project.
Features

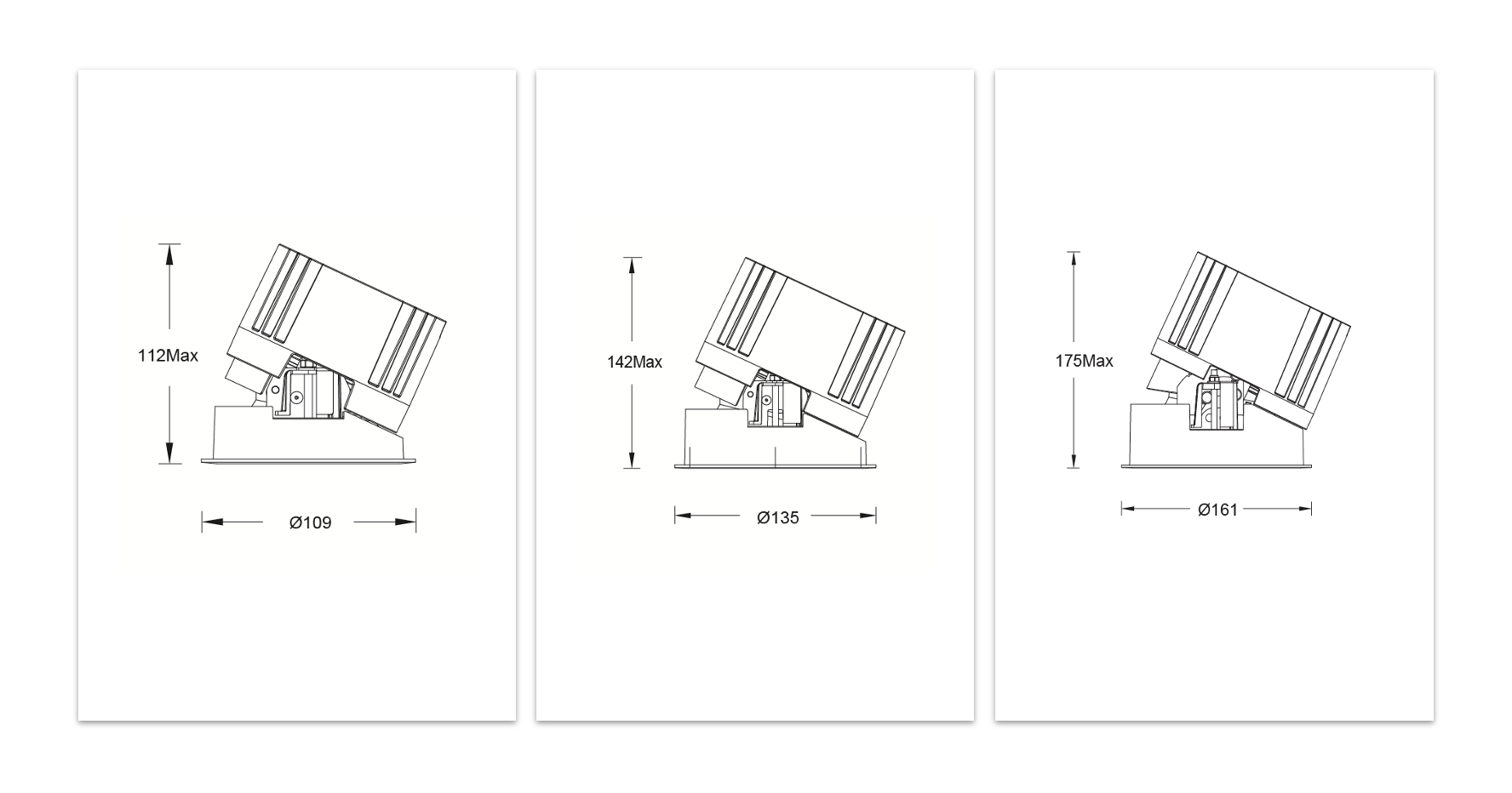

Line drawing of VOLTA adjustable series

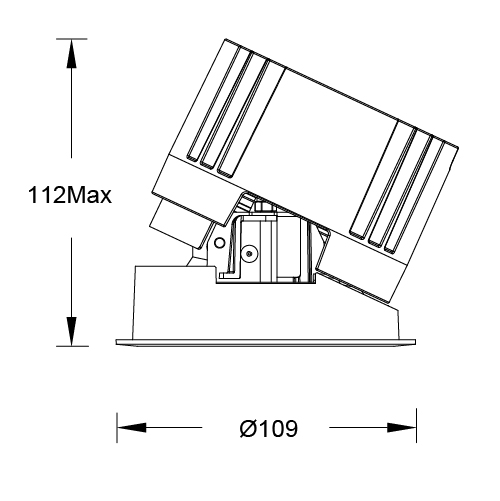

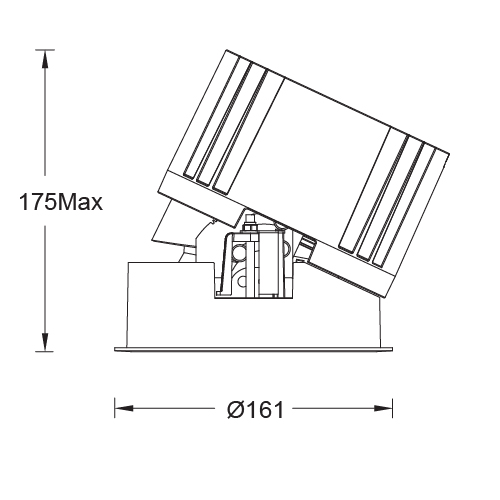

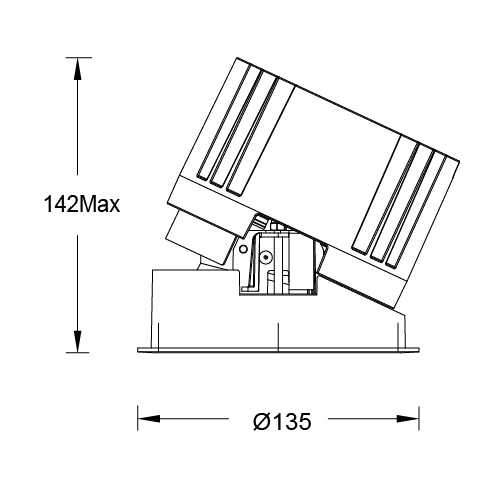

Detailed Line Drawing for 4/5/6" Fixture

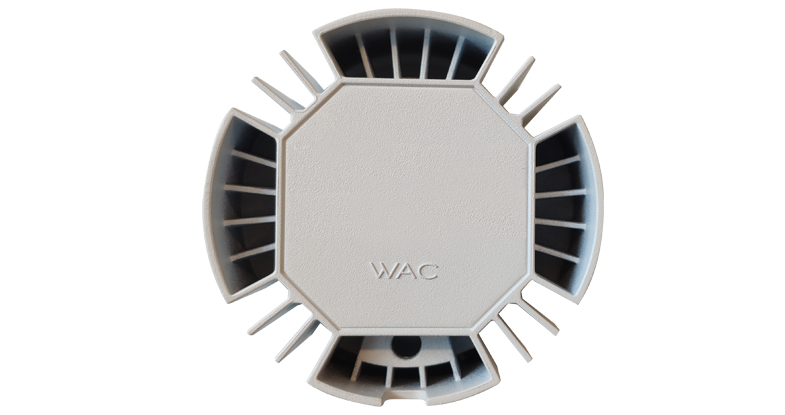

Unique appearance design
Convection cooling + Enclosed chimney cooling to enhance thermal performance
IP44 sealed light source chamber design
Ensures stable performance in humid environment

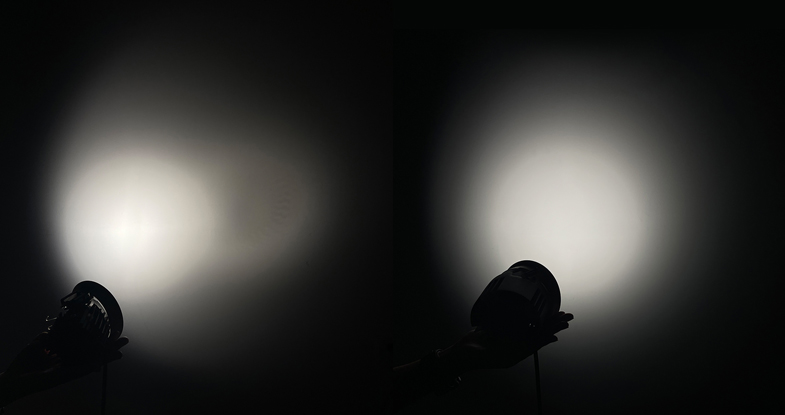

No light spot spill out (right VOLTA)
Actual light effect with clean, soft spot and no stray light

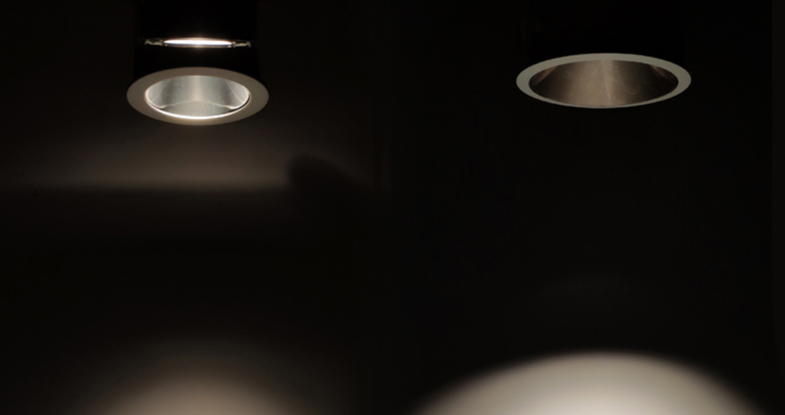

Adjustment without light leakage (right VOLTA)
Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle
Videos
VOLTA
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 4 4” | 1 Round Trim | LM18 COB 18W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 5 5” | 1 Round Trim | LM25 COB 25W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 6 6” | 1 Round Trim | LM43 COB 43W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Example: ADDT61-LM43A2CCSWT
