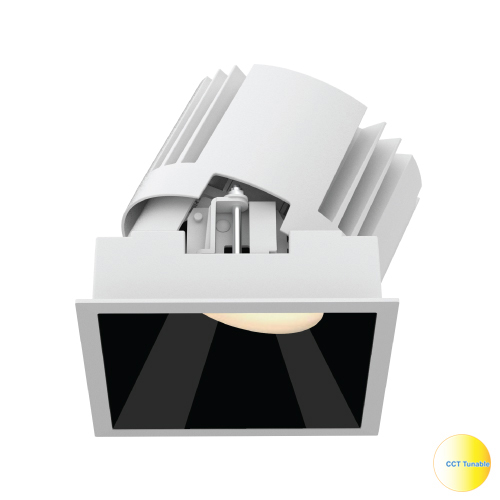

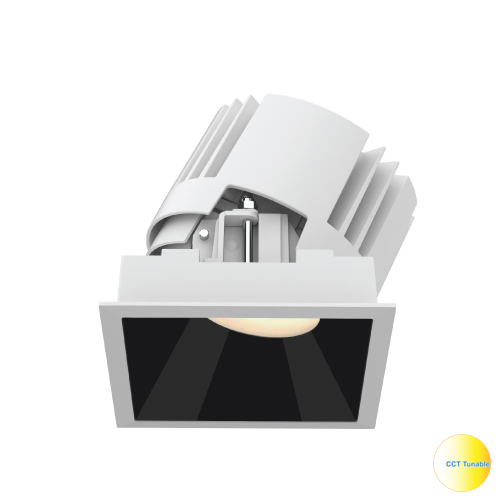

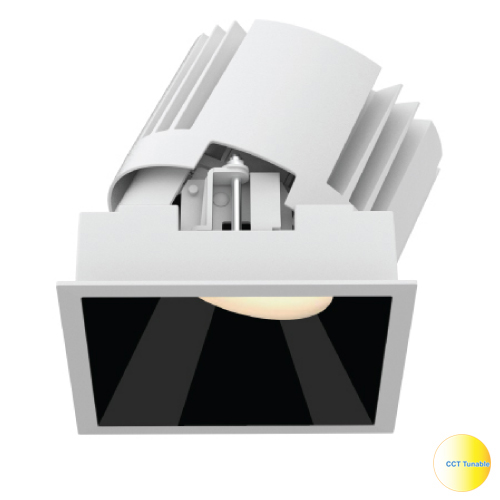

VOLTA TUNABLE Square Adjustable
ADDT45/ADDT55/ADDT65 4/5/6" Square Trim Tunnable Adjustable Downlight
Adaptive precision defines VOLTA TUNABLE Square Adjustable. A refined square aperture integrates a high‑transmittance lens and black mirror reflector to deliver disciplined beam control with advanced glare suppression. The sealed optical chamber protects long‑term performance in humid environments, while tunable white capability and interchangeable optical components provide flexible on‑site configuration for hospitality and commercial interiors.
Features
Line drawing of VOLTA square adjustable series
Detailed Line Drawing for 4/5/6" Fixture
Unique appearance design
Convection cooling + Enclosed chimney cooling to enhance thermal performance
IP44 sealed light source chamber design
Ensures stable performance in humid environment
No light spot spill out (right VOLTA)
Actual light effect with clean, soft spot and no stray light
Adjustment without light leakage (right VOLTA)
Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle
Videos
VOLTA
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 4 4” | 5 Square Trim | LM18 COB 18W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 5 5” | 5 Square Trim | LM25 COB 25W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 6 6” | 1 Round Trim | LM43 COB 43W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Example: ADDT65-LM43A2CCSWT
