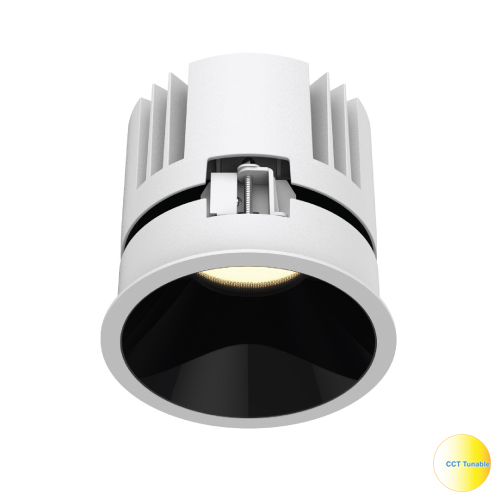

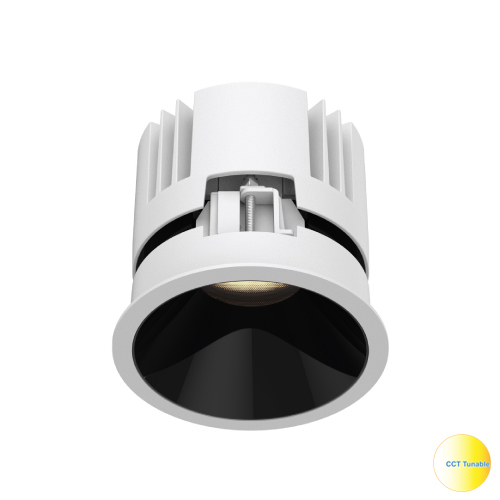

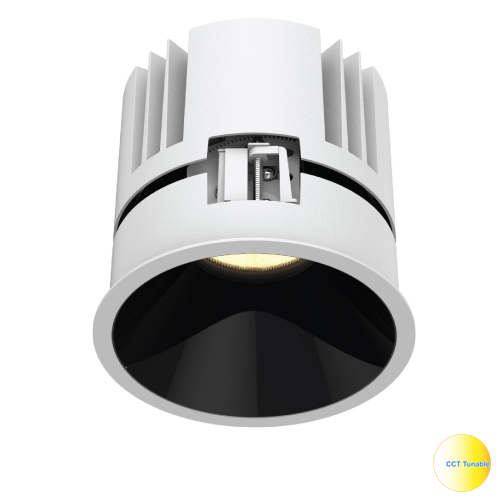

VOLTA TUNABLE Round Fixed
ADLT41/ADLT51/ADLT61 4/5/6" Tunable Downlight
Refined circular geometry defines VOLTA TUNABLE Round Fixed. A precision lens and black mirror reflector maintain beam integrity while achieving advanced glare suppression. The sealed light engine safeguards performance in moisture‑affected environments, and tunable white capability supports adaptable lighting strategies.
Features
Line drawing of VOLTA fixed series

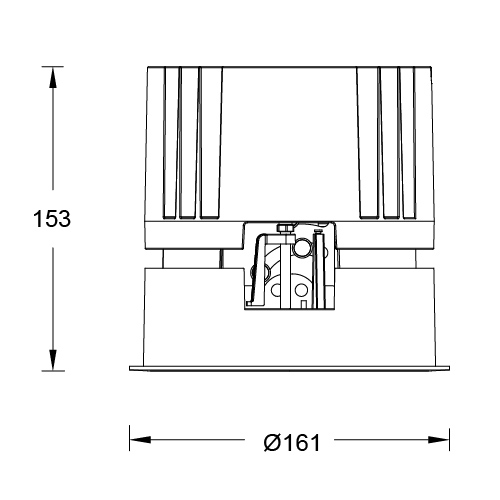

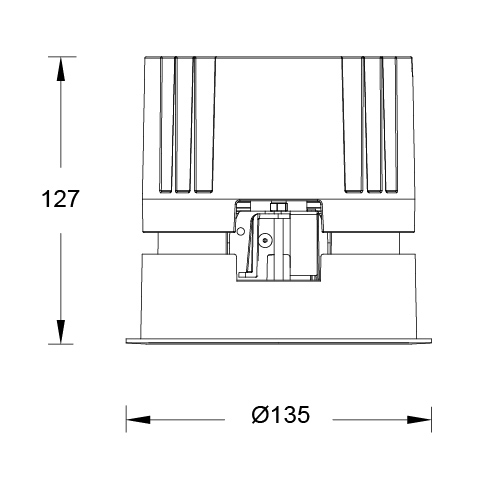

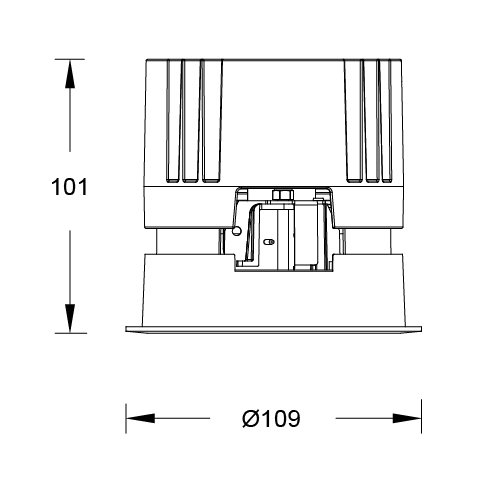

Detailed Line Drawing for 4/5/6" Fixture
High thermal performance
Convection cooling + Enclosed chimney cooling to enhance thermal performance
IP44 sealed light source chamber design
Ensures stable performance in humid environment
No light spot spill out (right VOLTA)
Actual light effect with clean, soft spot and no stray light
Adjustment without light leakage (right VOLTA)
Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle
Videos
VOLTA
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 4 4” | 1 Round Trim | LM18 COB 18W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 5 5” | 1 Round Trim | LM25 COB 25W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 6 6” | 1 Round Trim | LM43 COB 43W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Example: ADLT61-LM43A2CCSWT
