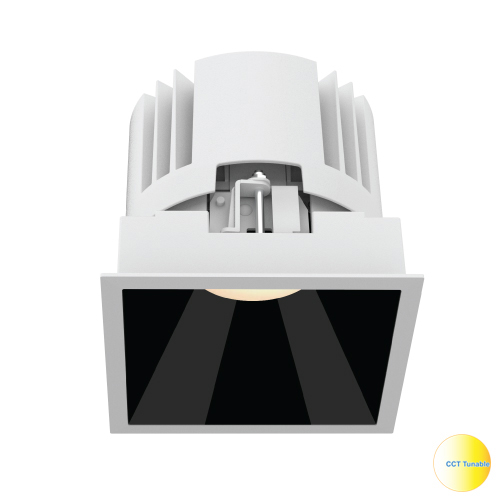

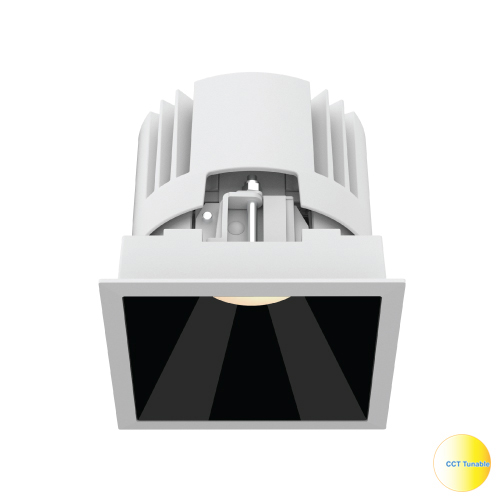

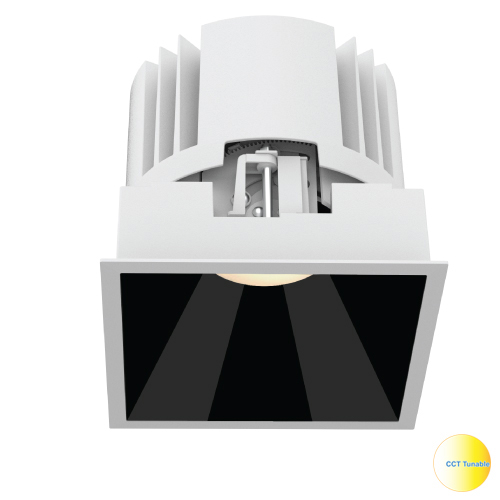

VOLTA TUNABLE Square Fixed
ADLT45/ADLT55/ADLT65 4/5/6" Square Tunable Downlight
Architectural clarity meets tunable performance in VOLTA TUNABLE Square Fixed. Its streamlined square aperture houses a precision lens and black mirror reflector for disciplined light control and minimal glare. Modular optical components allow field replacement while maintaining long‑term reliability.
Features
Line drawing of VOLTA fixed series
Detailed Line Drawing for 4/5/6" Fixture
High thermal performance
Convection cooling + Enclosed chimney cooling to enhance thermal performance
IP44 sealed light source chamber design
Ensures stable performance in humid environment
No light spot spill out (right VOLTA)
Actual light effect with clean, soft spot and no stray light
Adjustment without light leakage (right VOLTA)
Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle
Videos
VOLTA
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 4 4” | 5 Square Trim | LM18 COB 18W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 5 5” | 5 Square Trim | LM25 COB 25W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 6 6” | 5 Square Trim | LM43 COB 43W | A DALI N No Driver | 1 18° 2 28° 3 38° 5 50° | CC 2700K-6000K Tunable | B Black S Specular | WT White BK Black |
Example: ADLT65-LM43A2CCSWT
