SLANA PRO

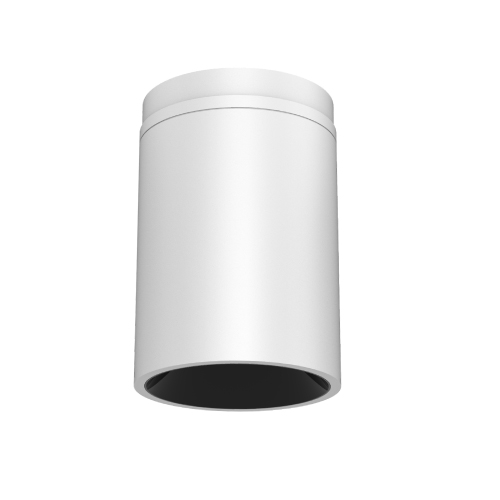

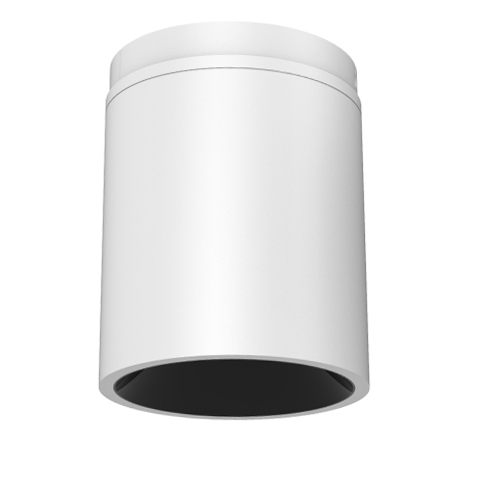

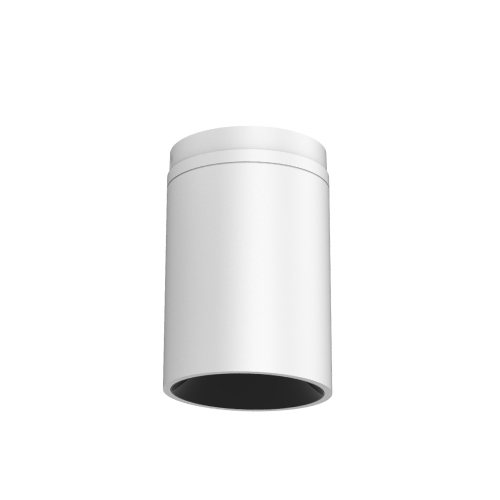

SLANA PRO Round
AES3NF/AES3SF/AES3MF IP65 Surface-mounted Downlight
Decorative presence meets optical discipline in SLANA PRO Round. Suitable for ceiling or boom mounting, the sculpted architectural form integrates refined light control for feature illumination in public spaces. Designed to balance visual impact with composed distribution performance.
Features

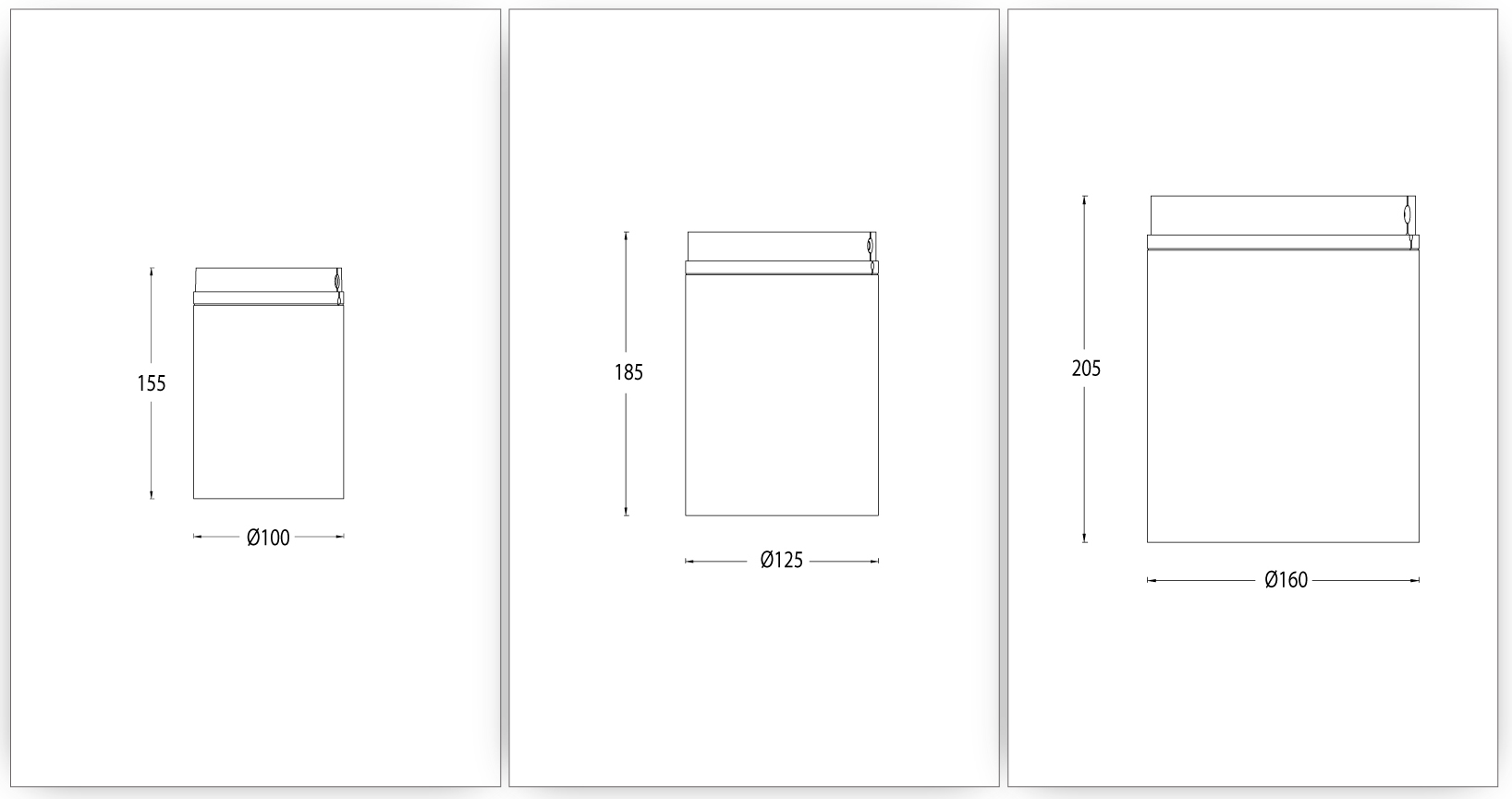

Product Line Drawing

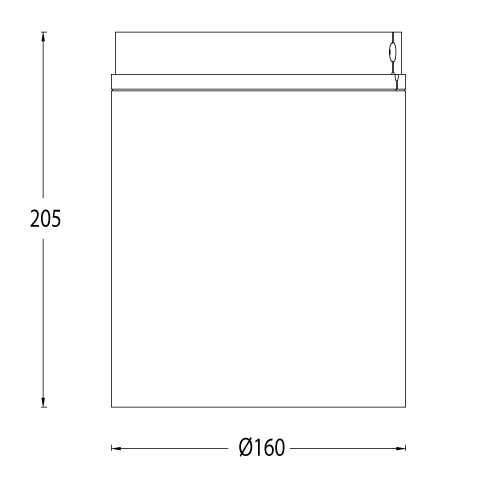

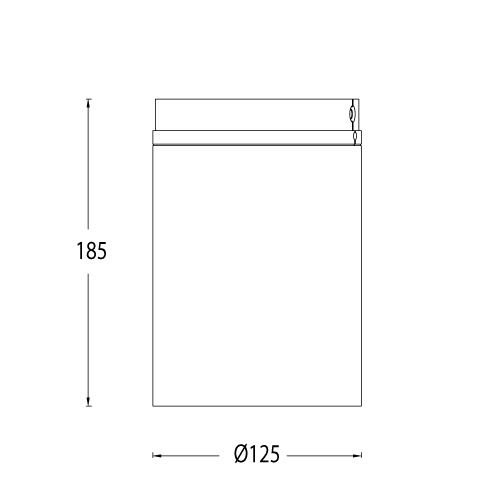

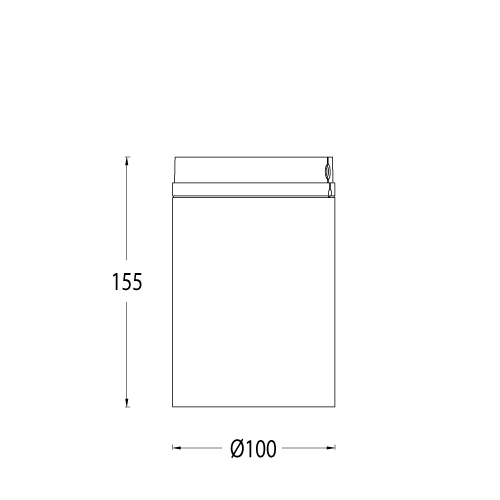

3/4/5" Line Drawing Preview
Specifications
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
AES3N | F Fixed | 25 25W(Max) | COB | 2628 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
AES3S | F Fixed | 33 33(Max) | COB | 3680 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
AES3M | F Fixed | 43 43(Max) | COB | 4350 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 24° 3 36° 5 50° | 30 3000K 40 4000K | B Black S Specular | WT White |
Example: AES3MF-43EL130BWT
