SHINE PRO

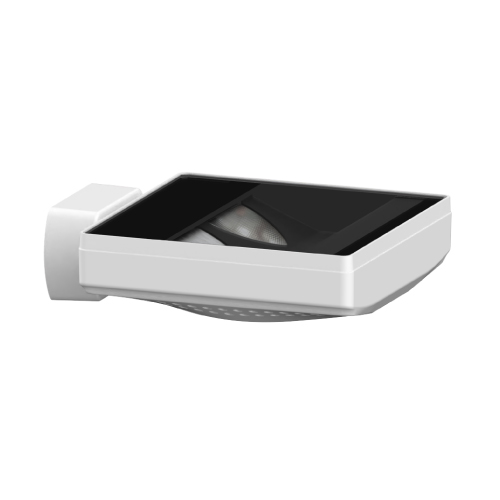

SHINE PRO Wash Ceiling
AEW3C Wall Mounted Ceiling Wall Washer
Ceiling planes become luminous architectural elements with SHINE PRO Wash Ceiling. Its ultra‑thin wall‑mounted form integrates cleanly into high public spaces while offering horizontal or vertical distribution options. Advanced optics and angular structural design deliver controlled ceiling washing with refined visual comfort.
Features
Two types of wash system options
The design of wall washing system, precise control of the light path, to ensure that the light effciency is maximized under the constraint conditions. Horizontal (W-type) & vertical (U-type) wall washer, two choices, to establish a perfect wall washer lighting system.
Ultra-wide light distance, outstanding wall washing effect
Left is the horizontal wall washing H:D=1:2.5 & 1:4.5 effect comparison; right is the vertical wall washing H:D=1:2 & 1:3 effect comparison.
Specifications
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
AEW3 | C Ceiling Wash | 40 40(Max) | COB | 2251 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | U Washer (1:3) W Washer (1:4.5) | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Example: AEW3C-40ELU27BK
Note: Wall wash ratio refers to the ratio of the distance of the luminary from the ceiling to the distance between the two lamps, see the installation diagram for details.
