SILO PRO 3-circuits

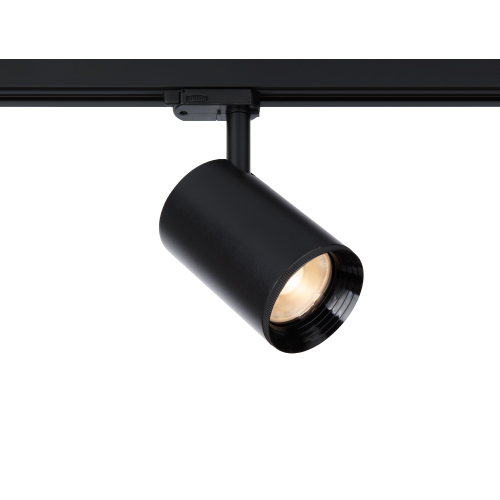

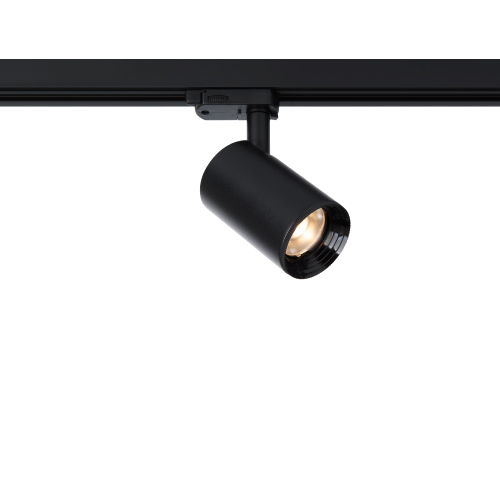

SILO PRO Spot Fixed
ATL15H/ATL16H/ATL17H 3-circuits Tracklight
Compact restraint meets high performance in SILO PRO Spot Fixed. The die‑cast aluminum body conceals thermal management within a clean architectural profile, while a COB LED module and flicker‑free driver ensure stable, high‑fidelity illumination. Multiple beam distributions support both accent and ambient applications.
Features

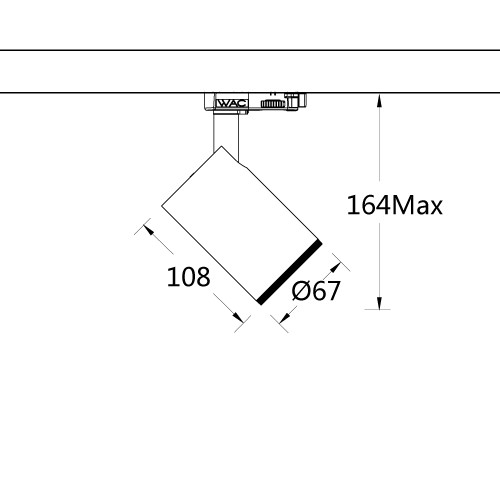

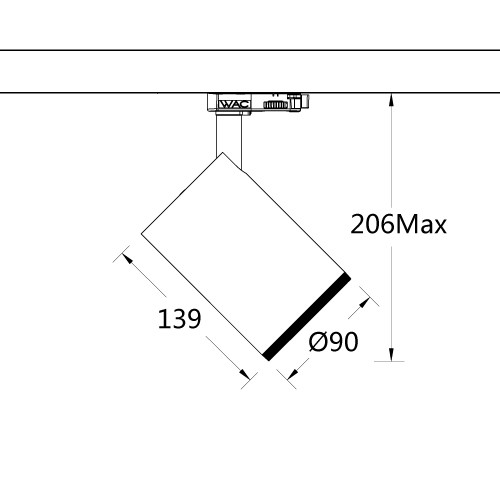

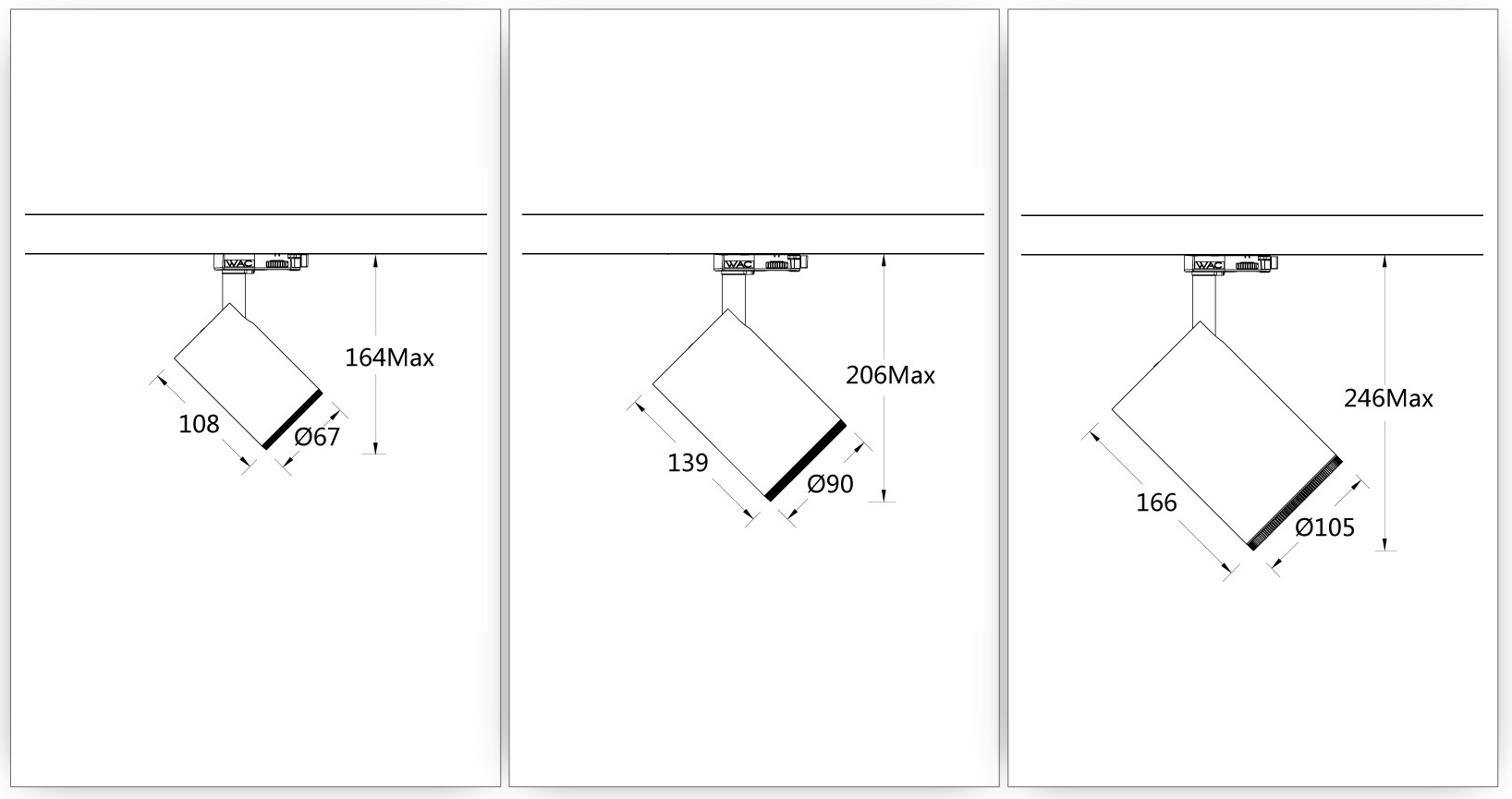

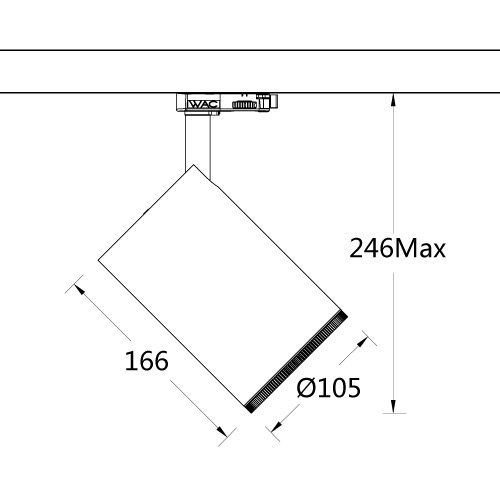

Product Line Drawing
TL15H/TL16H/TL17H Line Drawing Preview
Specifications
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL15H SILO Pro | LM06 COB 6W LM12 COB 12W | O On-board D 0-10V Dimming | 1 13° 2 24° 3 36° 5 55° | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL16H SILO Pro | LM18 COB 18W LM26 COB 26W | O On-board A DALI D 0-10V Dimming | 1 13° 2 24° 3 36° 5 55° | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL17H SILO Pro | LM34 COB 34W | O On-board A DALI D 0-10V Dimming | 1 13° 2 24° 3 36° 5 55° | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Example: ATL17HLM34-O2930WT
