OCULARC

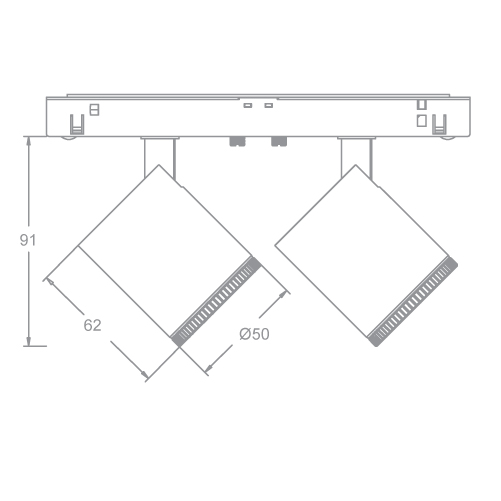

OCULARC Track Twin Fixed
ASL48S Twins Mini Zoomale Tracklight
Dual‑source precision characterizes OCULARC Track Twin Fixed. Designed for the WAC mini track system, it integrates concealed glare‑controlled optics within a compact architectural form. Ideal for focused display and museum applications.
Features

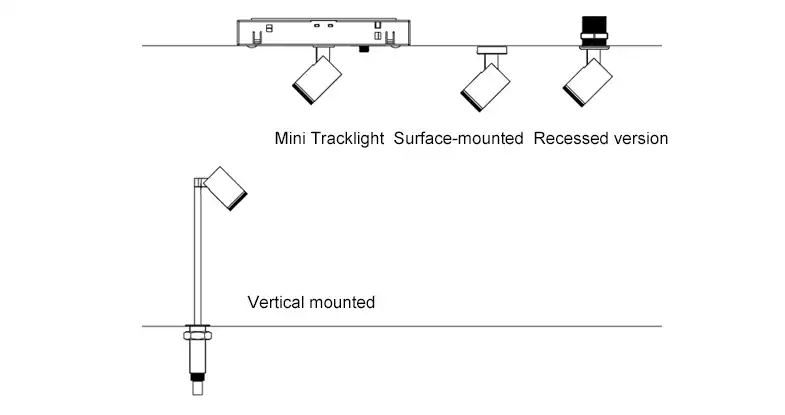

Multiple installation options available
The Ocularc series offers three mounting options, track mount, surface mount (ceiling & recessed), and pole mount, to meet the needs of a wide variety of installations.
Specifications
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
ASL48S Ocularc | LD20 LED 2*10W | O On-boarding E ON-OFF | 1 15° 2 24° 3 36° 6 60° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
Example: ASL48SLD20-O2930BK
Remarks: 1) Support the system dimming, you need to match the remote driver of constant voltage (the dimming method is determined by the constant voltage driver.) 2) factory standard for 15° is with honeycomb, not for other beam angles.
