VOLTA

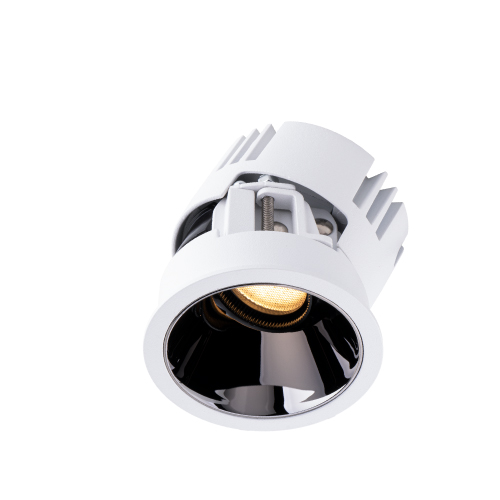

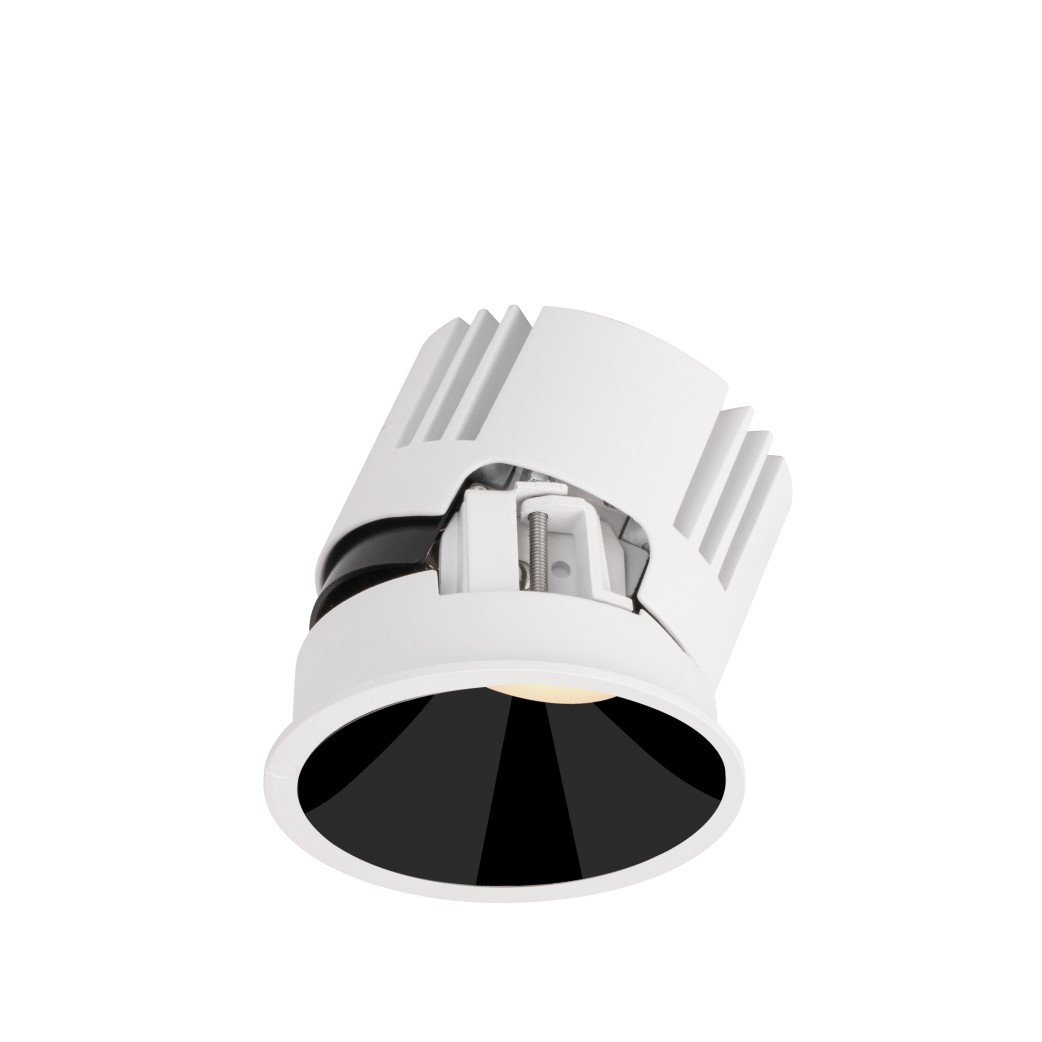

VOLTA Round Adjustable 2/3

ADDT21/ADDT31 2/3" Adjustable Downlight
Targeted flexibility defines VOLTA Round Adjustable 2/3. The precision lens and reflector system maintain beam integrity during aiming, while the sealed optical chamber safeguards long‑term performance. Interchangeable optical accessories enhance field adaptability.

Features

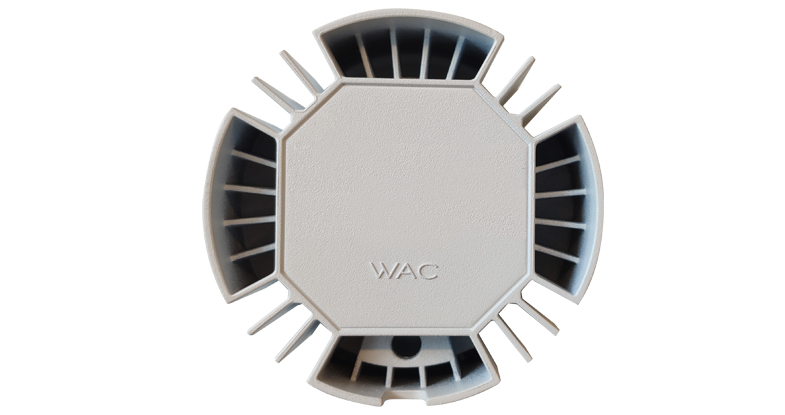

High thermal performance

High thermal performance

Convection cooling + Enclosed chimney cooling to enhance thermal performance

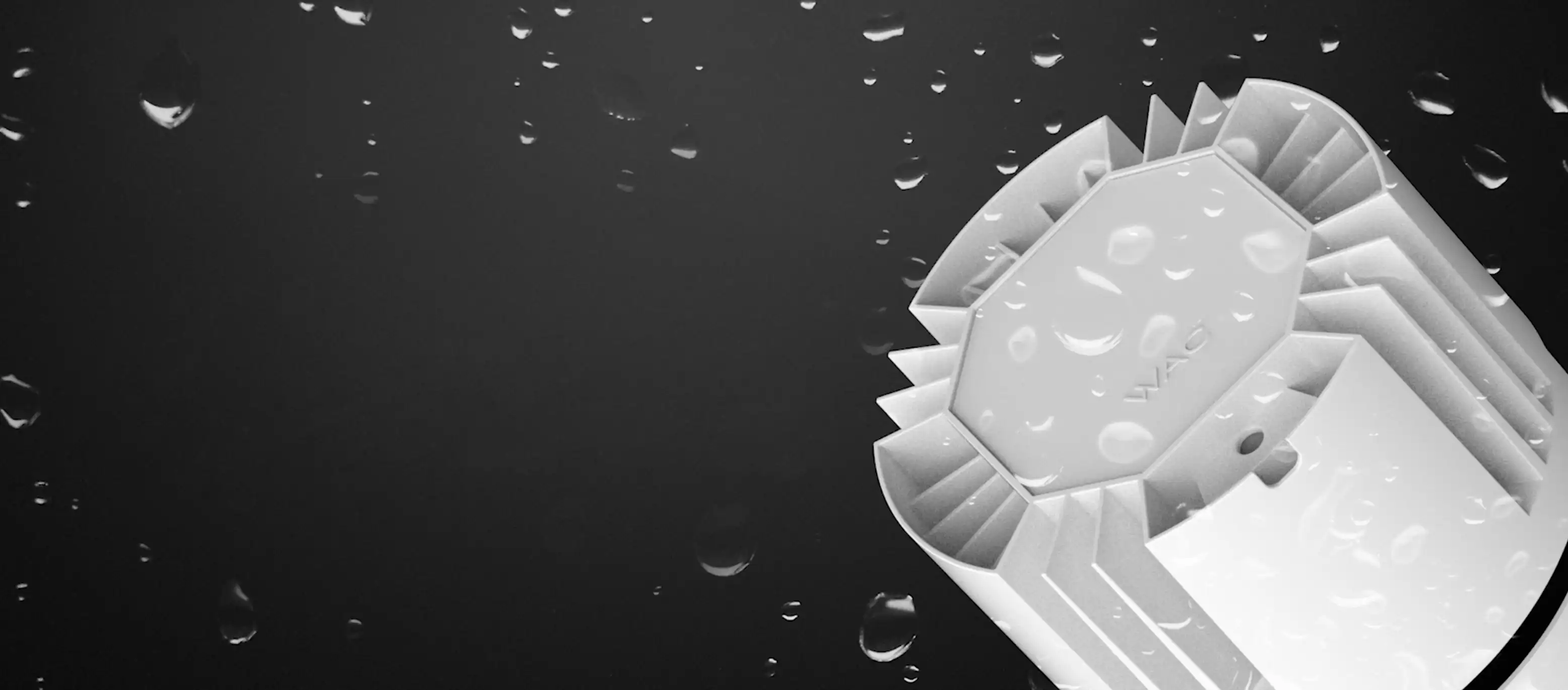

IP44 sealed light source chamber design

IP44 sealed light source chamber design

Ensures stable performance in humid environment
No light spot spill out (right VOLTA)

No light spot spill out (right VOLTA)

Actual light effect with clean, soft spot and no stray light
Adjustment without light leakage (right VOLTA)

Adjustment without light leakage (right VOLTA)

Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

2 2”

1 Round Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

3 3”

1 Round Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

3 3”

1 Round Trim

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W


E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

3 3”

1 Round Trim

LM13  COB 13W


A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Example: ADDT31-LM13E230SWT
