LIGNE PRO

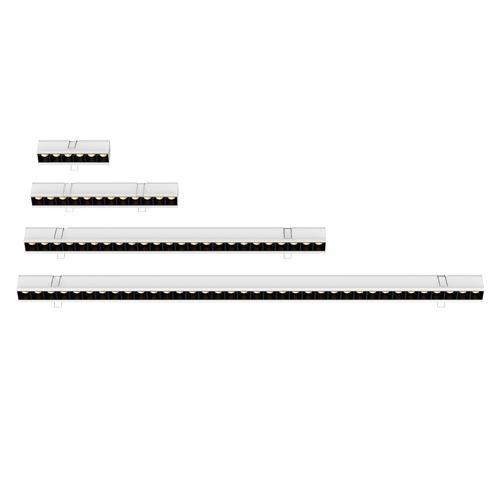

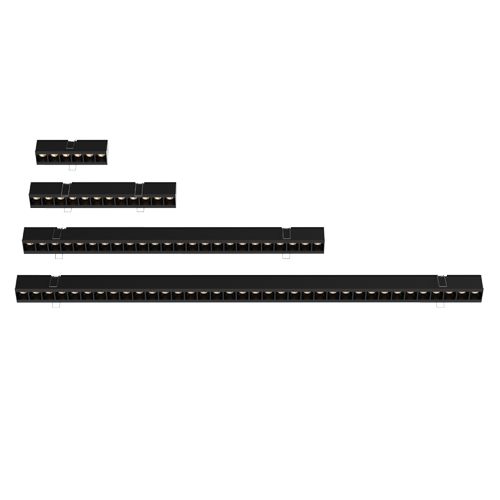

LIGNE PRO Recessed Graze
ALGAR5 Recessed Linear Graze Light
Engineered for precise surface articulation, LIGNE PRO Recessed Graze delivers controlled linear illumination from a discreet recessed profile. Offered in multiple LED configurations with selectable output levels and beam distributions, it supports tailored grazing and wall-wash strategies across demanding projects. Designed for continuous end-to-end connection without visible breaks, it maintains seamless uniformity along extended runs. Ideal for concealed slot installations in hospitality and commercial environments, LIGNE PRO Recessed Graze provides specification-grade performance where architectural surfaces become focal points.
Features

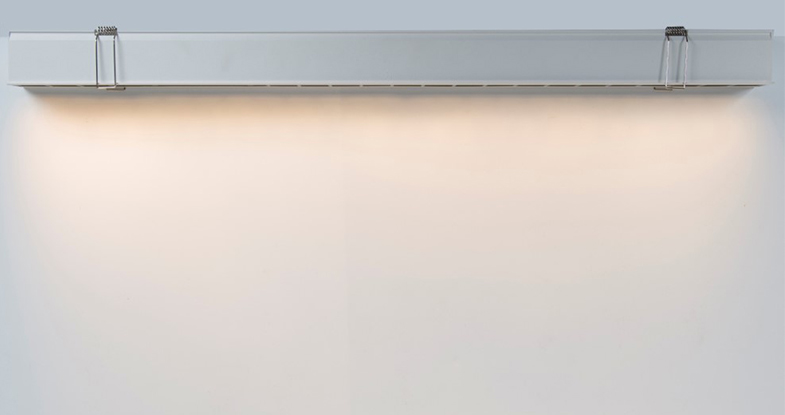

SUBROSA Invisible Light Technology for Ultimate Visual Experience

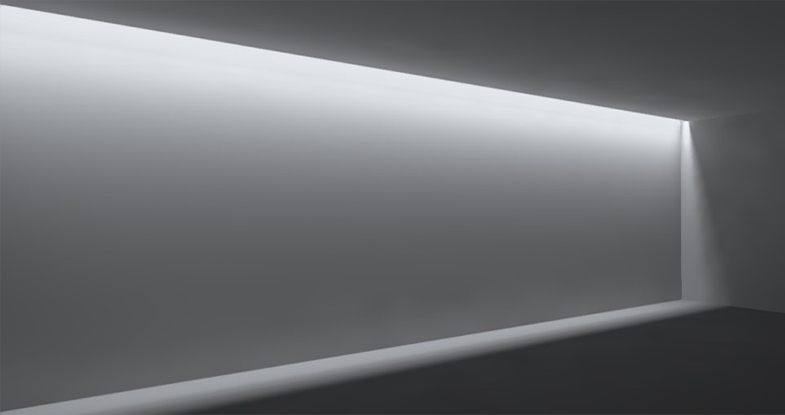

4.5m high wall with 18W/m LIGNE Pro Graze Linear Light actual simulation effect
Specifications

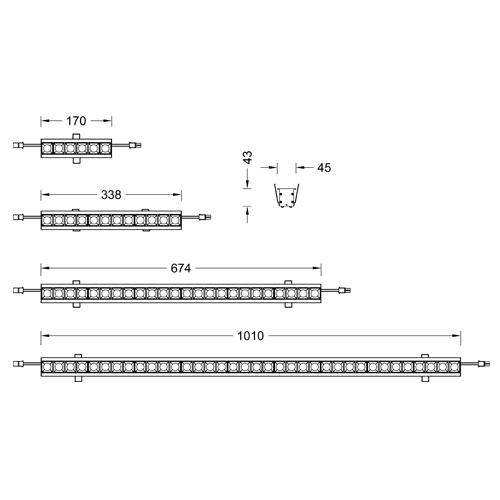

Model | Sys. Power | LED Num. | Length | Driver | Beam | CCT | Reflector | Finish |
ALGAR5 Linear Graze A series Recessed mounting | 18 18W/m 30 30W/m | 06 6 pcs 12 12 pcs 24 24 pcs 36 36 pcs | 170mm 338mm 674mm 1010mm | N No Driver | E 22°x44° 1 16° 2 22° 3 33° 4 44° | 27 2700K 30 3000K 40 4000K | B Black | WT White BK Black |
Example: ALGAR5-3036N230BWT
