LIGNE PRO
LIGNE PRO Surface Graze
ALGAS6 Linear Graze Light
LIGNE PRO Surface Graze is a surface-mounted linear system engineered for disciplined wall articulation. Multiple LED configurations, selectable output levels, and defined beam distributions allow precise grazing and wall-wash effects tailored to architectural intent. Designed for seamless end-to-end connection, it maintains uniform illumination without visible breaks. LIGNE PRO Surface Graze delivers specification-grade linear performance with clean visual continuity in hospitality and commercial environments.
Features

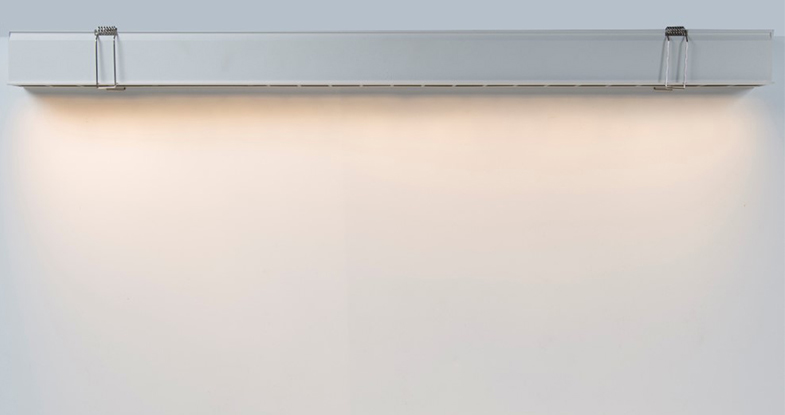

SUBROSA Invisible Light Technology for Ultimate Visual Experience

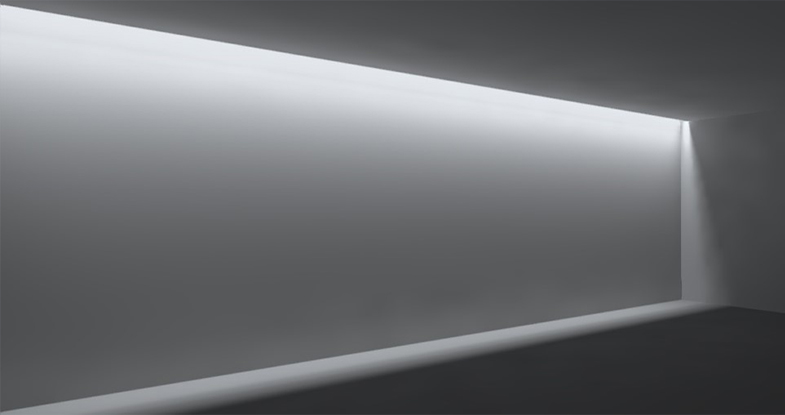

4.5m high wall with 18W/m LIGNE Pro Graze Linear Light actual simulation effect
Specifications
Model | Sys. Power | LED Num. | Length | Driver | Beam | CCT | Reflector | Finish |
ALGAS6 Linear Graze A series Surface mounting | 18 18W/m 30 30W/m | 06 6 pcs 12 12 pcs 24 24 pcs 36 36 pcs | 170mm 338mm 674mm 1010mm | N No Driver | E 22°x44° 1 16° 2 22° 3 33° 4 44° | 27 2700K 30 3000K 40 4000K | B Black | BK Black WT White |
Example: ALGAS6-3036N230BBK
