MERE

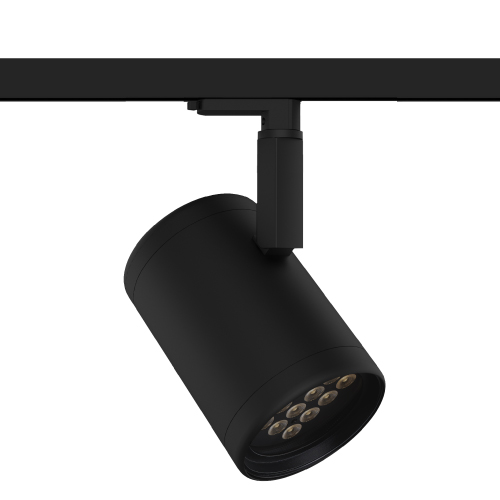

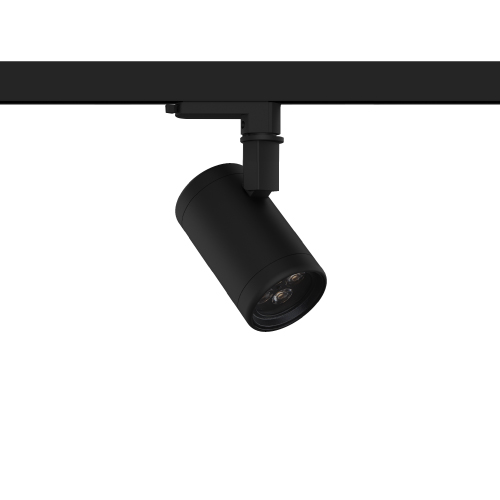

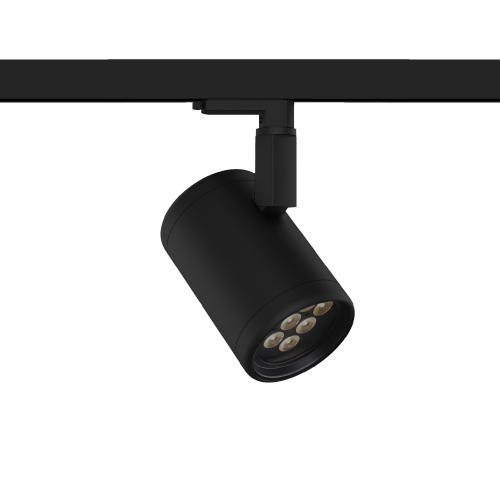

MERE Multi HP
ATL36SLD/ATL37SLD/ATL38SLD
MERE Multi HP redefines track flexibility with intelligent control and vibrant performance options. Offering extensive optical configurations, multiple CCT selections, accessory compatibility, and an optional DIY smart control module, it adapts seamlessly to evolving project needs. Integrated 0–10V and rotary knob dimming allow simplified commissioning and precise on-site adjustment.
Features

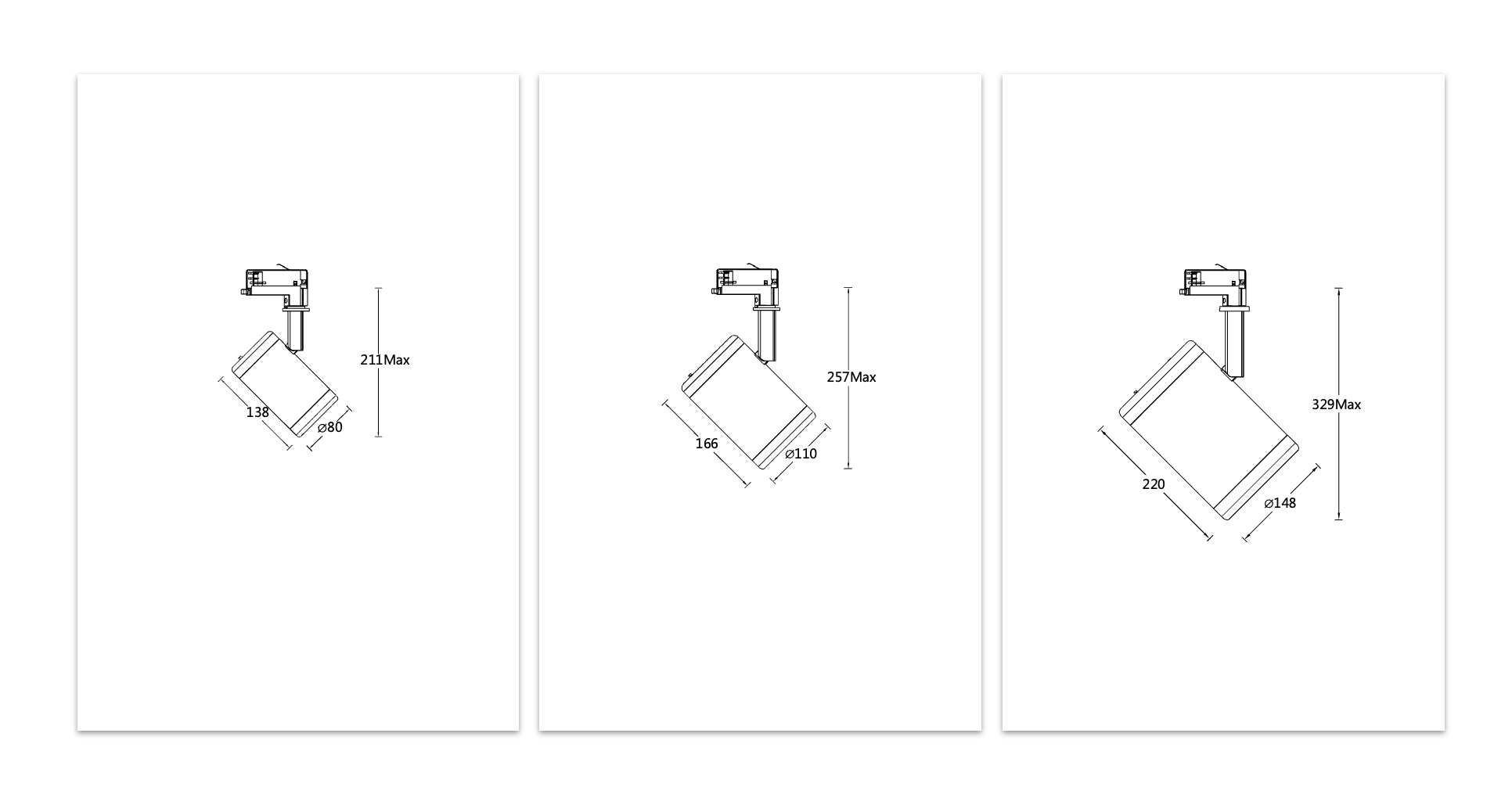

Product Line Drawing
ATL36SLD/ATL37SLD/ATL38SLD
Videos
MERE
Specifications
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL36S MERE | LD08 LED 8W LD12 LED 12W | D 0-10V+ On-board A DALI | S 6° N 10° 1 15° 2 24° 3 36° 5 50° E 10*50° G 25*55° W Wash | 9 90 A 97 | 27 2700K 30 3000K 35 3500K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL37S MERE | LD18 LED 18W LD27 LED 27W | D 0-10V+ On-board A DALI | S 6° N 10° 1 15° 2 24° 3 36° 5 50° E 10*50° G 25*55° W Wash | 9 90 A 97 | 27 2700K 30 3000K 35 3500K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL38S MERE | LD32 LED 32W LD48 LED 48W | D 0-10V+ On-board A DALI | S 6° N 10° 1 15° 2 24° 3 36° 5 50° E 10*50° G 25*55° W Wash | 9 90 A 97 | 27 2700K 30 3000K 35 3500K 40 4000K | WT White BK Black |
Example: ATL38SLD48-D2930WT
