RING

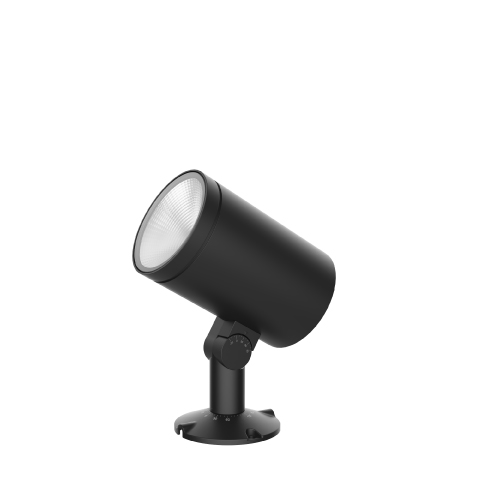

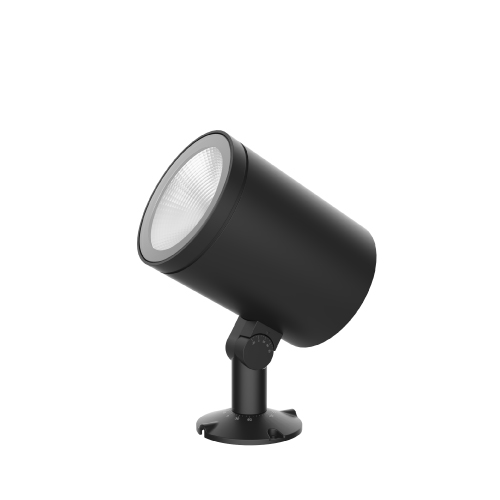

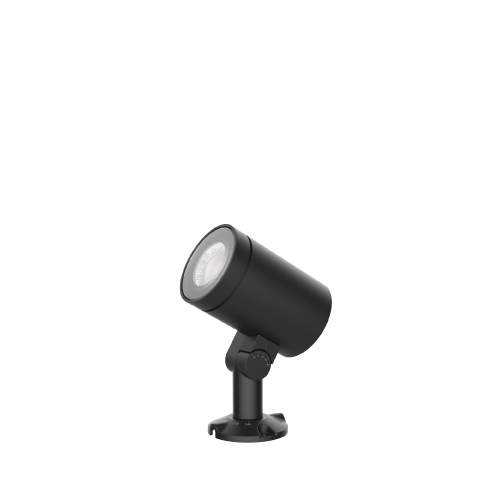

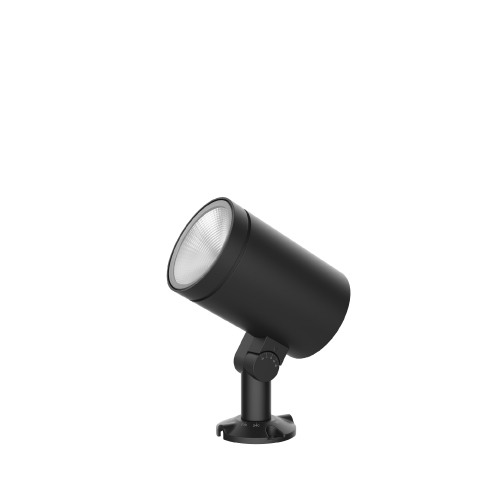

RING Spot COB 220

AEP9NI/AEP9SI/AEP9MI/AEP9LI Projector
RING Spot COB 220 combines compact form with advanced thermal management for long LED life and sustainable performance. Precision steering adjustments support both vertical and horizontal aiming, making it ideal for façade, landscape, and sculptural illumination.

Features

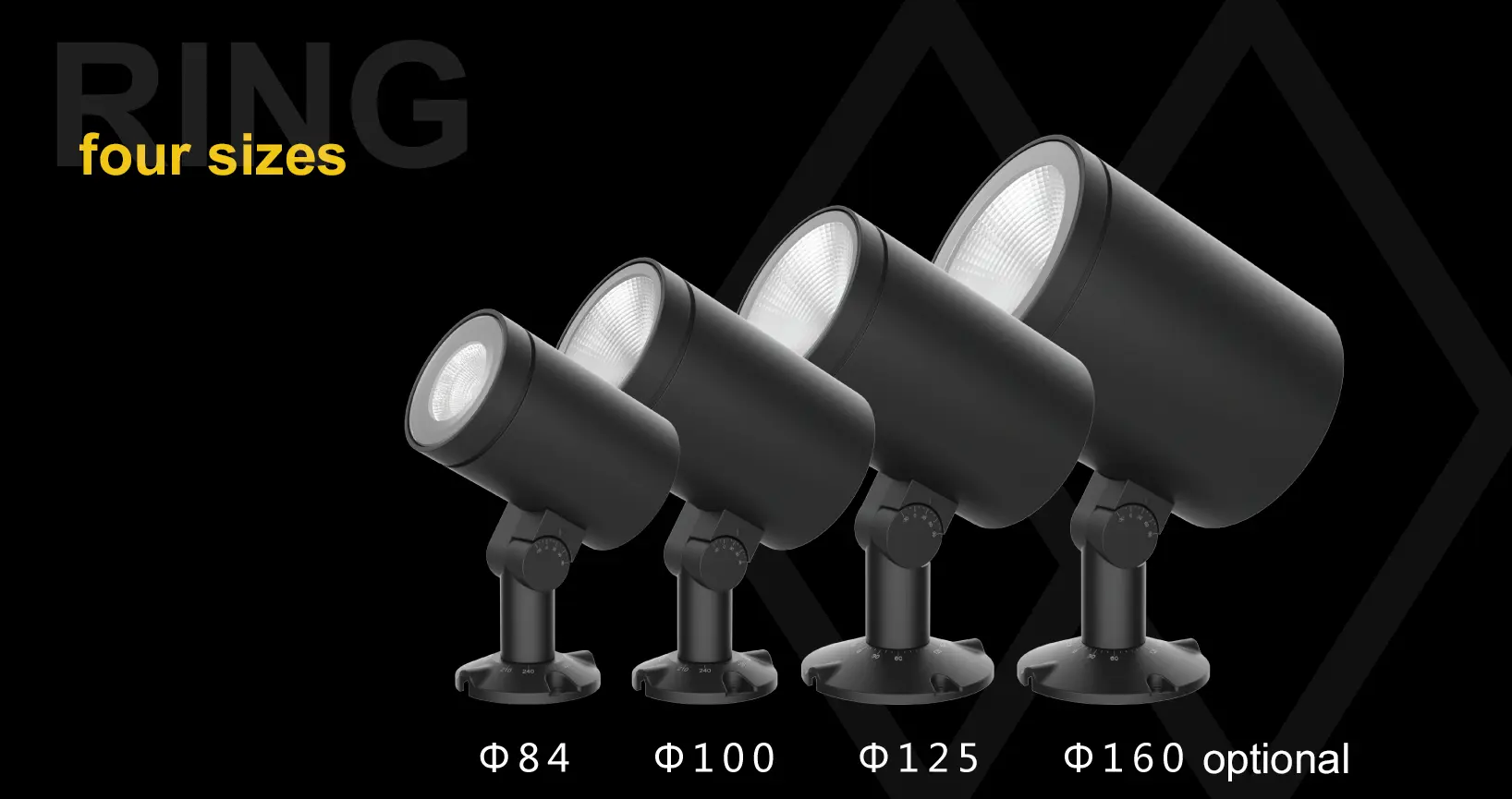

Multiple sizes optional for easier application

Multiple sizes optional for easier application

RING

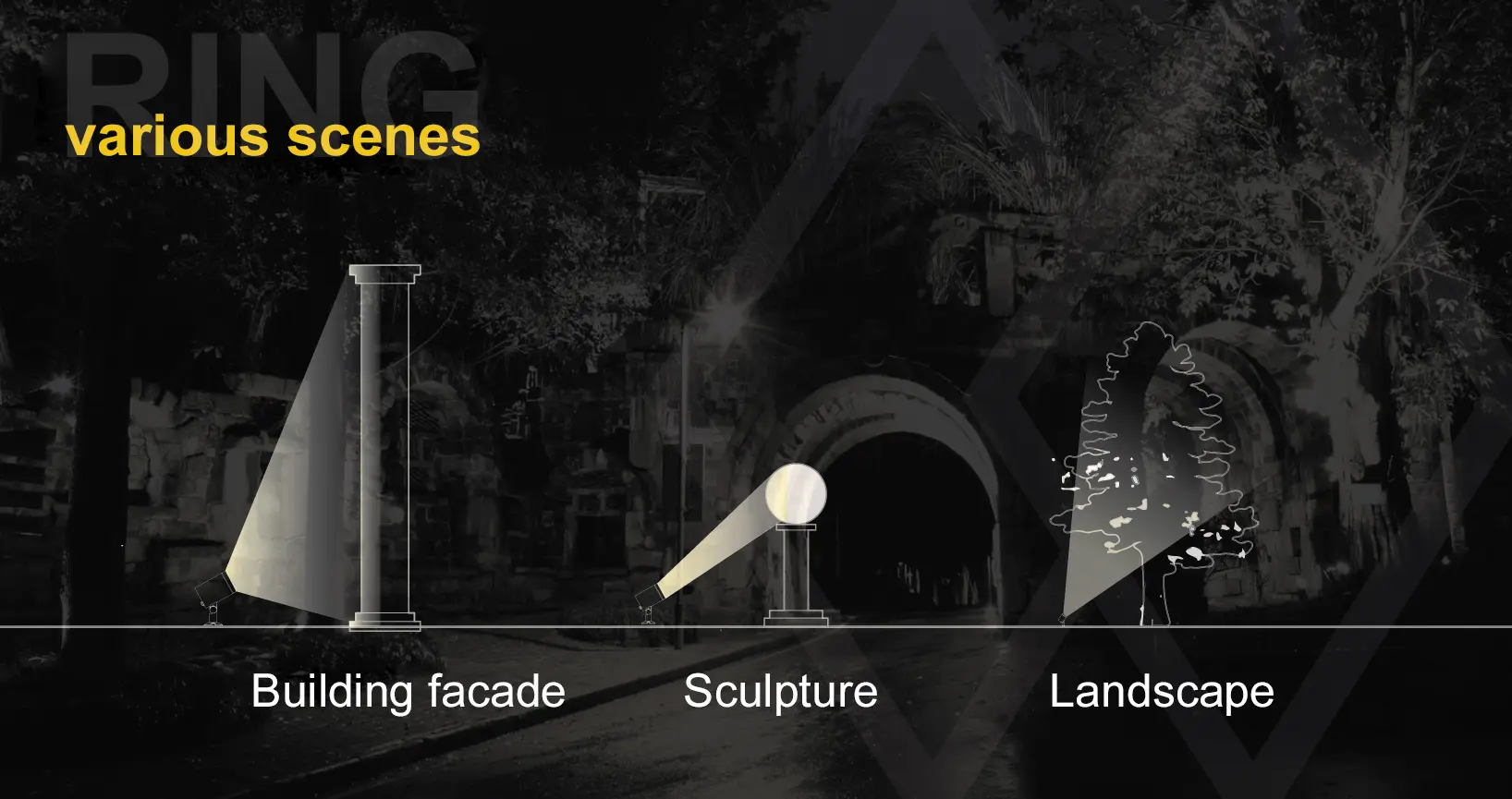

A floodlight fixture, can meet the needs of a variety of scenes

A floodlight fixture, can meet the needs of a variety of scenes

RING

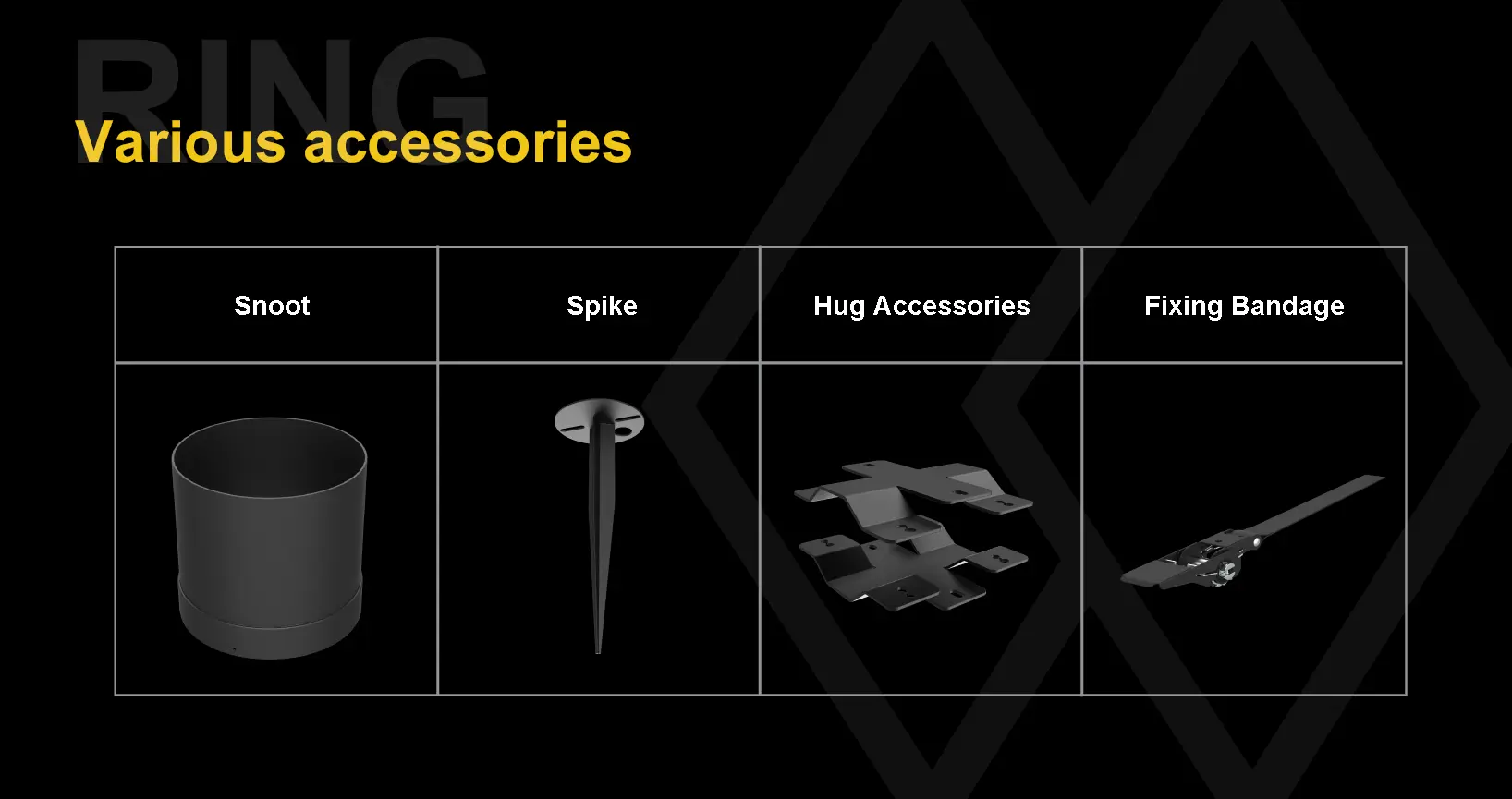

Variety of accessories to meet more derived needs

Variety of accessories to meet more derived needs

RING

Specifications

Model

Power

LEDs (quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEP9NI

18  18W(Max)

COB

1635

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

1  17°

2  25°

3  36°

27  2700K

30  3000K

40  4000K

BK  Black

Model

Power

LEDs (quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEP9SI

32  32W(Max)

COB

2978

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

1  17°

2  23°

3  33°

27      2700K

30   3000K

40   4000K

BK  Black

Model

Power

LEDs (quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEP9MI

47  47W(Max)

COB

5286

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

2  23°

3  35°

4  45°

27      2700K

30   3000K

40   4000K

BK  Black

Model

Power

LEDs (quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEP9LI

68  68W(Max)

COB

7623

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

2  23°

3  35°

4  45°

27      2700K

30   3000K

40   4000K

BK  Black

Example: AEP9LI-68EL330BK
