TRINITY

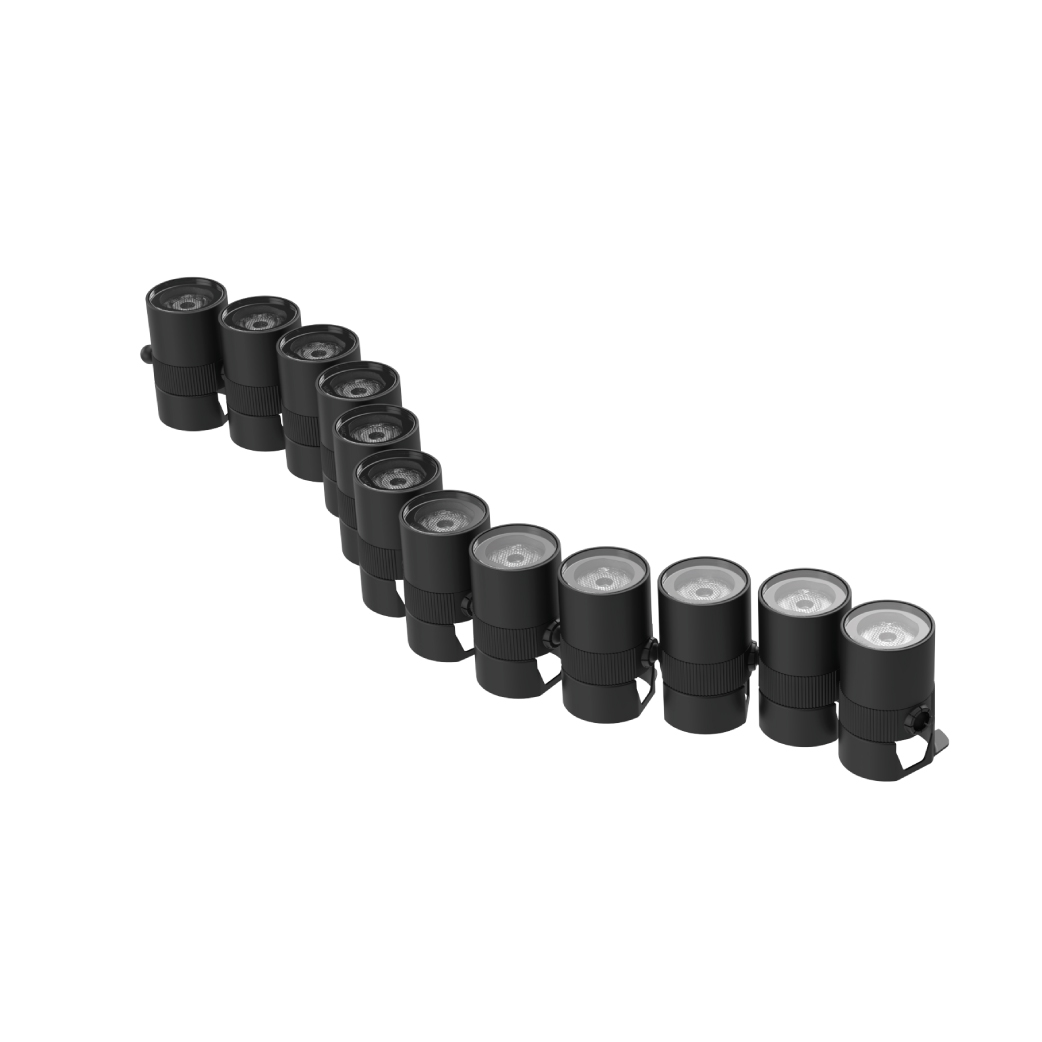

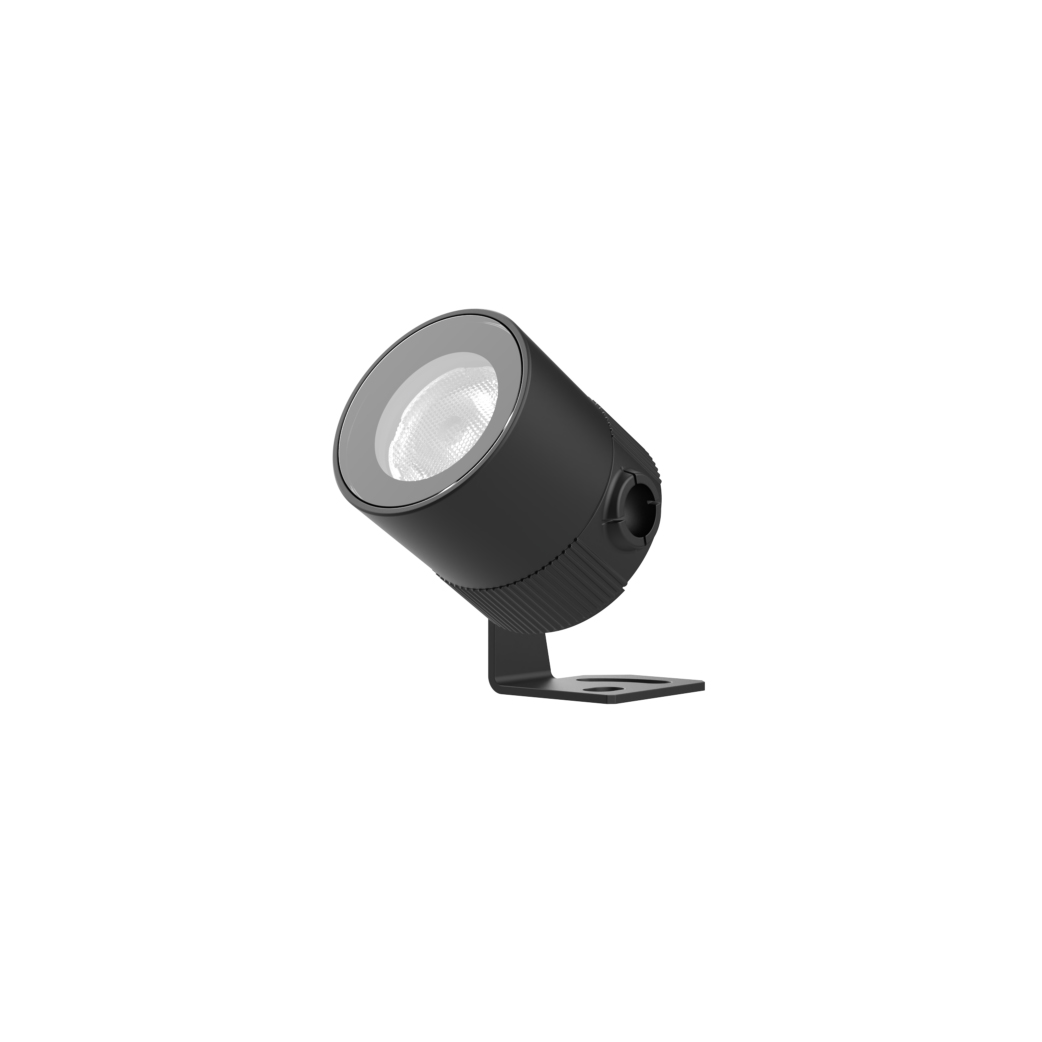

TRINITY Chain

AELS403/AELS405/AELS410
TRINITY Chain defines high-end outdoor flexibility with a sleek all-glass surface and multi-directional adjustability. Designed for premium architectural venues, it integrates seamlessly with varied mounting accessories to meet complex exterior lighting demands.

Features

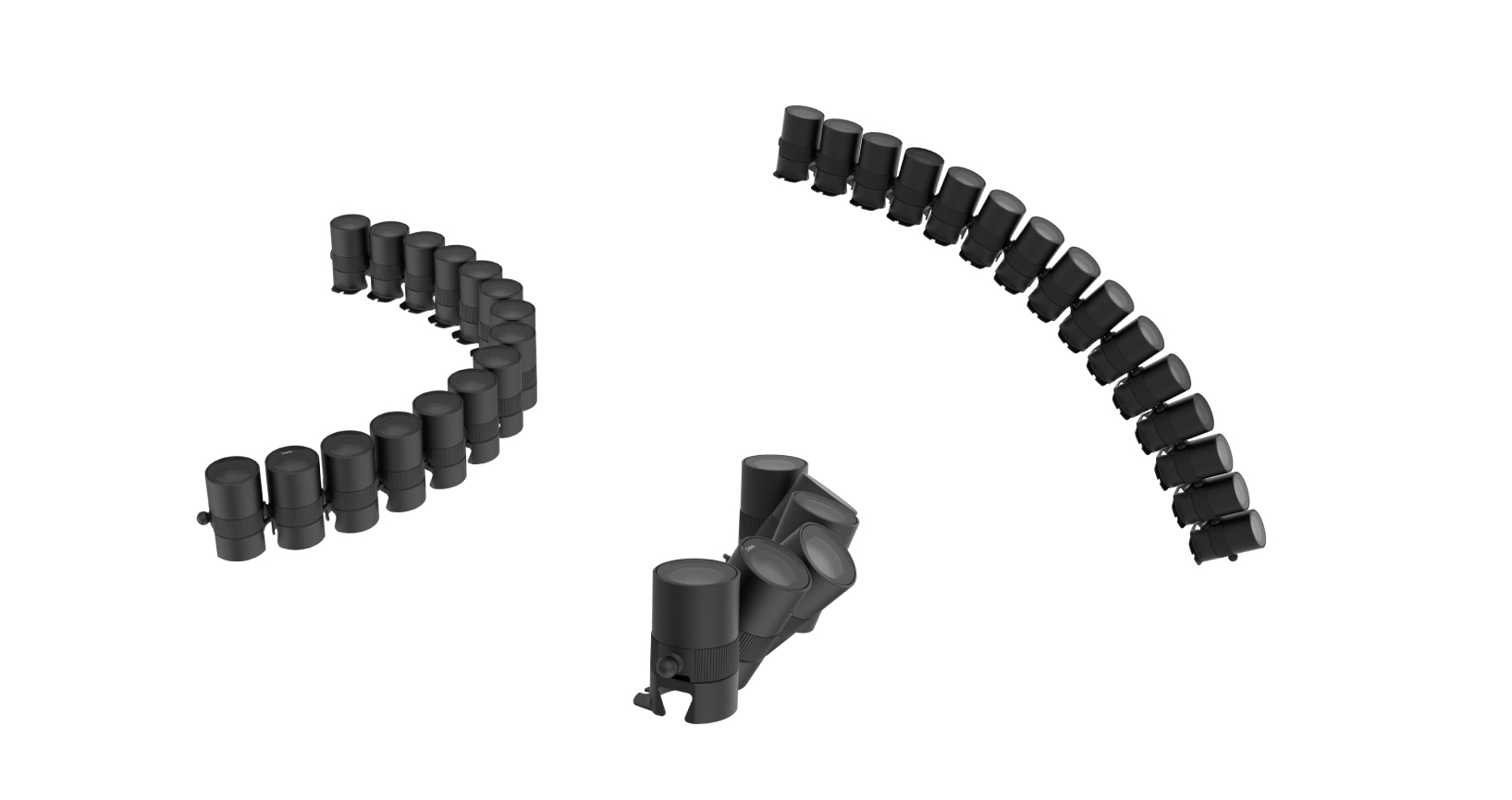

Great Flexibility

Great Flexibility

Available for multi-dimensional adjustment of the projection direction, suitable for complex application scenarios.

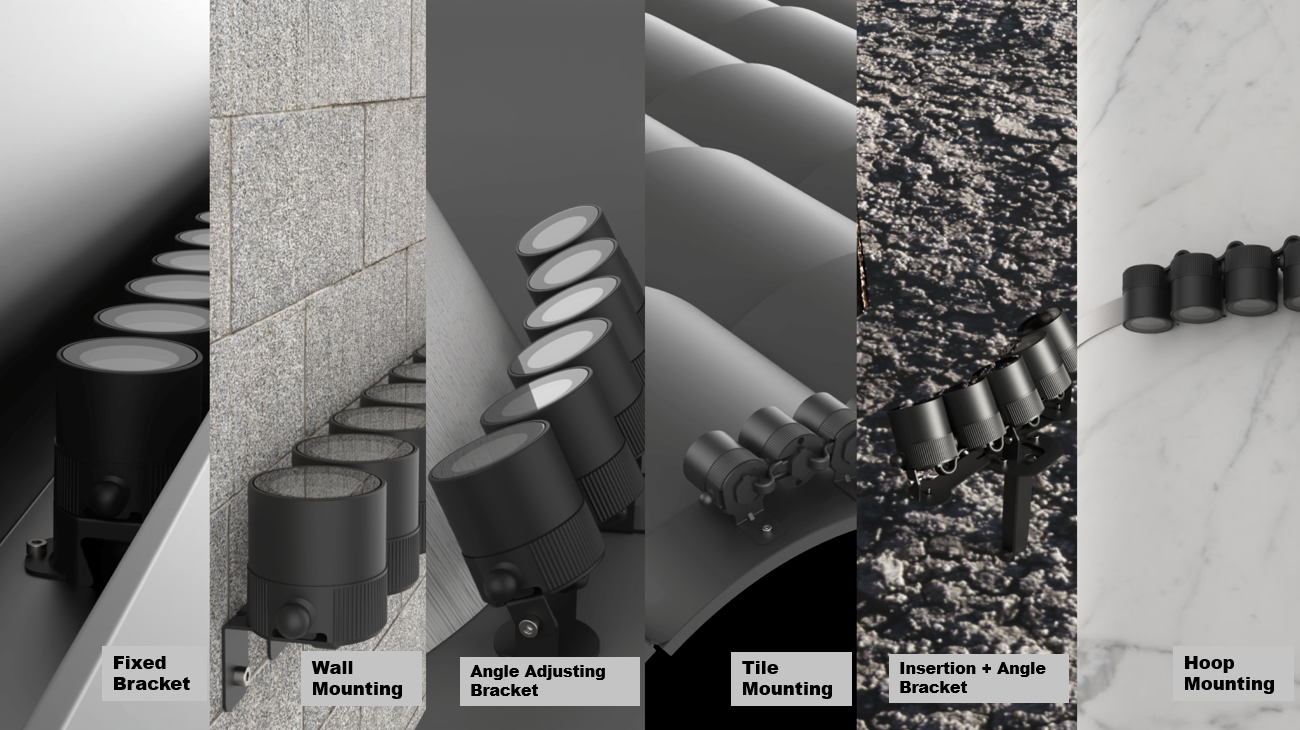

A wide range of mounting accessories

A wide range of mounting accessories

Videos

Trinity Video

Specifications

Model

Power

(W)

LEDs

(quantity)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

AELS401

03  3(Max)

1

121

ET  ON-OFF

24V~48V DC Power Supply

MT  DMX512 Dimming

24V~48V DC Power Supply

S  9°

1  12°

2  20°

3  33°

5  51°

E  14°×56°

27  2700K

30  3000K

40  4000K

BK  Black

Model

Power

(W)

LEDs

(quantity)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

AELS401

03  3(Max)

1

53

MT  DMX512 Dimming

24V~48V DC Power Supply

1  18°

2  28°

5  51°

G  23°×32°

F30  RGBW(3000K)

F40  RGBW(4000K)

F60  RGBW(6000K)

BK  Black

Model

Length

(mm)

Power

(W)

LEDs

(quantity)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

AELS403-19

AELS405-39

AELS410-78

250

500

1000

19(Max)

39(Max)

78 (Max)

6

12

24

282

565

1129

MT  DMX512 Dimming

24V~48V DC Power Supply

1  18°

2  28°

5  51°

G  23°×32°

F30  RGBW(3000K)

F40  RGBW(4000K)

F60  RGBW(6000K)

BK  Black

Model

Length

(mm)

Power

(W)

LEDs

(quantity)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

AELS403-19

AELS405-39

AELS410-78

250

500

1000

19(Max)

39(Max)

78 (Max)

6

12

24

730

1459

2918

ET  ON-OFF

24V~48V DC Power Supply

MT  DMX512Dimming

24V~48V DC Power Supply

S  9°

1  12°

2  20°

3  33°

5  51°

E  14°×56°

27  2700K

30  3000K

40  4000K

BK  Black

Example: AELS403-19MT-S30BK
