VOLTA WALL WASHER

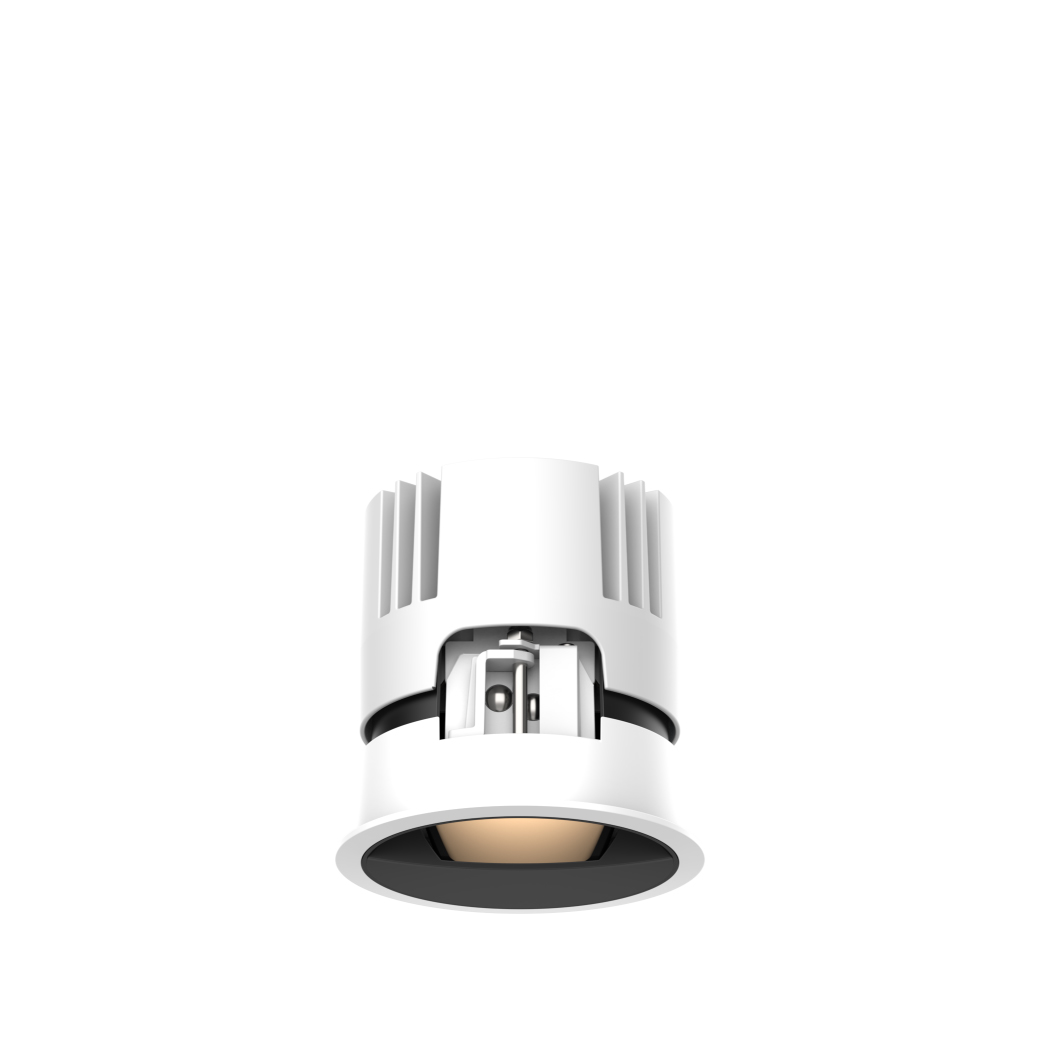

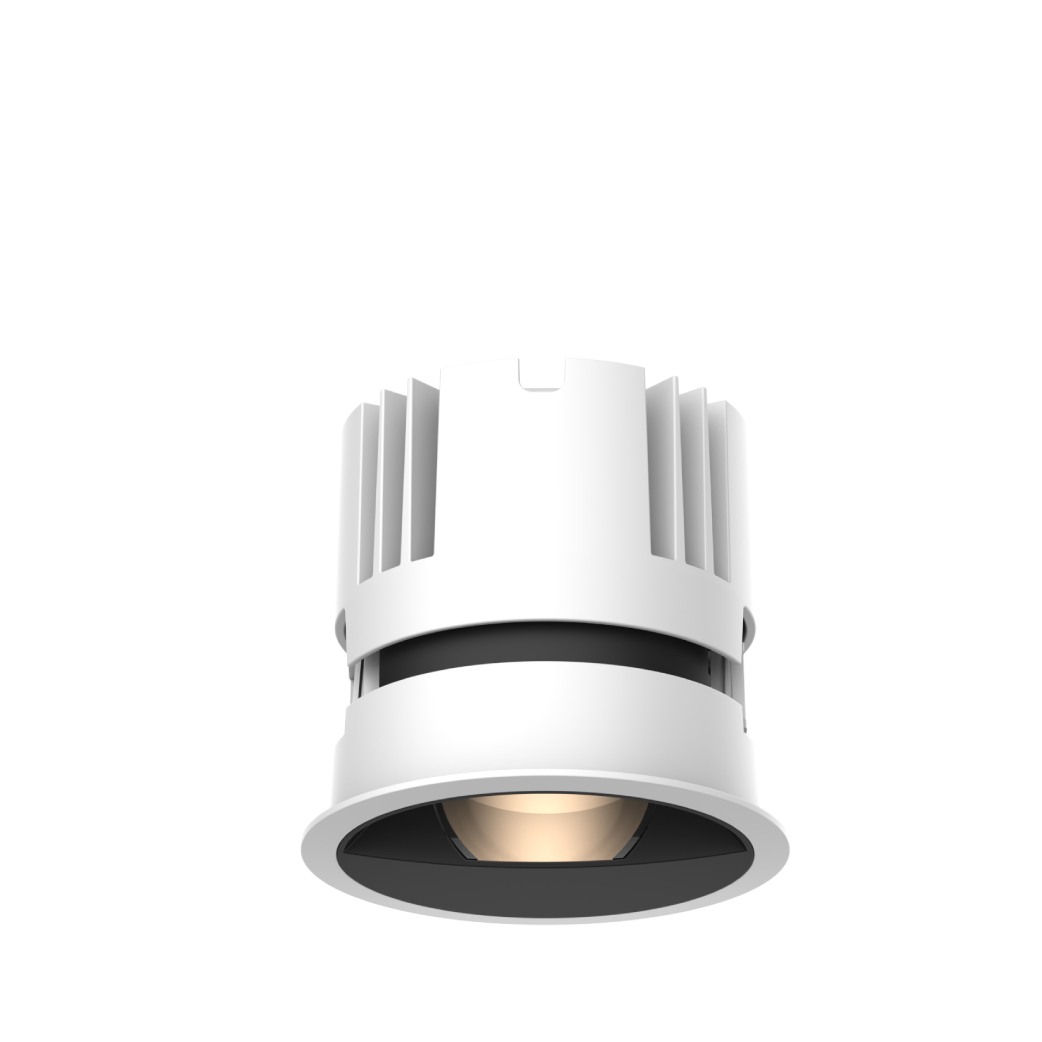

VOLTA Round Wall-Washer
ADWT31/ADWT41 3”/4”
VOLTA Round Wall-Washer delivers disciplined vertical illumination within a streamlined recessed profile. Its precision reflector ensures smooth wall washing with advanced glare suppression for hotel and commercial interiors.
Features

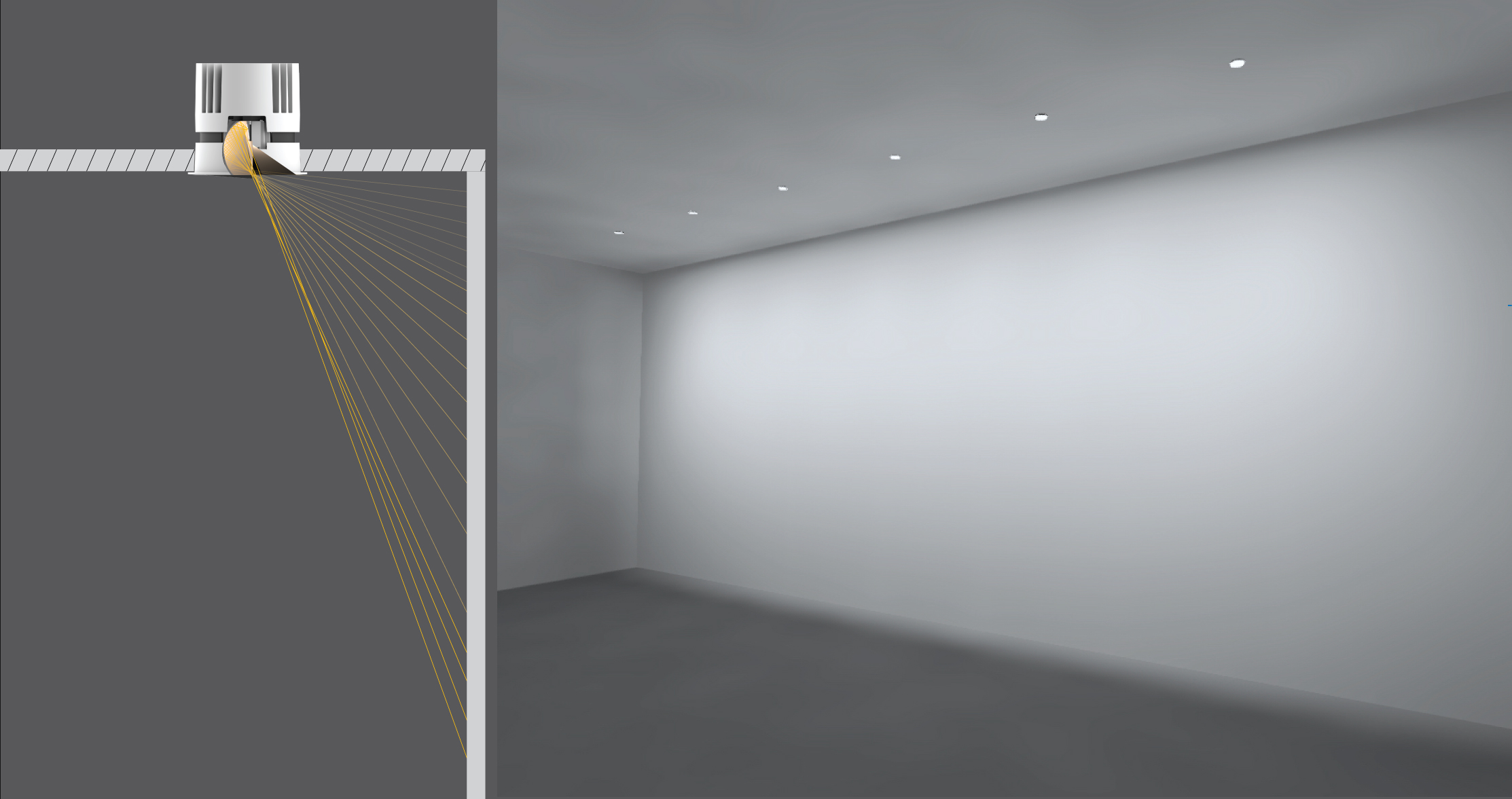

VOLTA Wall Wash Series brings greater light concentration to the wall, increasing the rate at which light reaches the wall.
A lighting system designed to distribute light with a high degree of uniformity and precision control, utilizing a unique exterior appearance and extreme flexibility.
The full beam of light is crafted to ensure that the light is elegantly projected onto the wall with a high degree of precision.
The ultimate in the art of light and shadow.

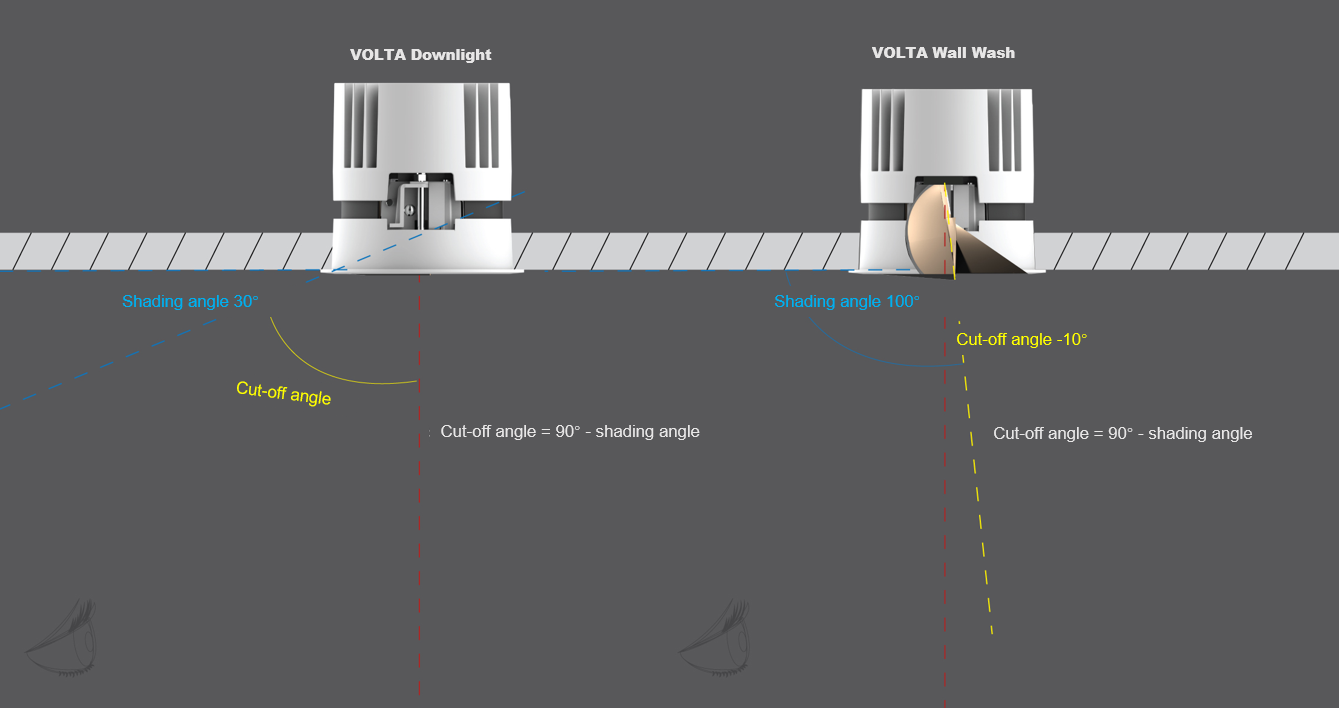

“-10° Cut-off angle” for Optimum Anti-glare Effect
VOLTA Wall Washer Series luminaires introduce the concept of “Negative Cutoff Angle”.
More than simply limiting the distribution of light, VOLTA Wallwash luminaires are designed with more complex and refined optics.
The “-10° Cut-off Angle” design allows for maximum light output in the projection process.
This minimizes light loss and ensures the quality of illumination, and ensures that the human eye is not affected by visual glare.
Specifications
| Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
| ADWT | 3 3'' | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E ON-OFF D 0-10V Dimming | W Wall Washer | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black | WT White BK Black |
| Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
| ADWT | 3 3'' | 1 Round Trim | LM13 COB 13W | A DALI N No Driver | W Wall Washer | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black | WT White BK Black |
| Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
| ADWT | 4 4'' | 1 Round Trim | LM13 COB 13W LM18 COB 18W | E ON-OFF D 0-10V Dimming | W Wall Washer | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black | WT White BK Black |
| Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
| ADWT | 4 4'' | 1 Round Trim | LM18 COB 18W | A DALI N No Driver | W Wall Washer | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black | WT White BK Black |
Example: ADWT41-LM18EW30BWT
