FUEGO COMPACT

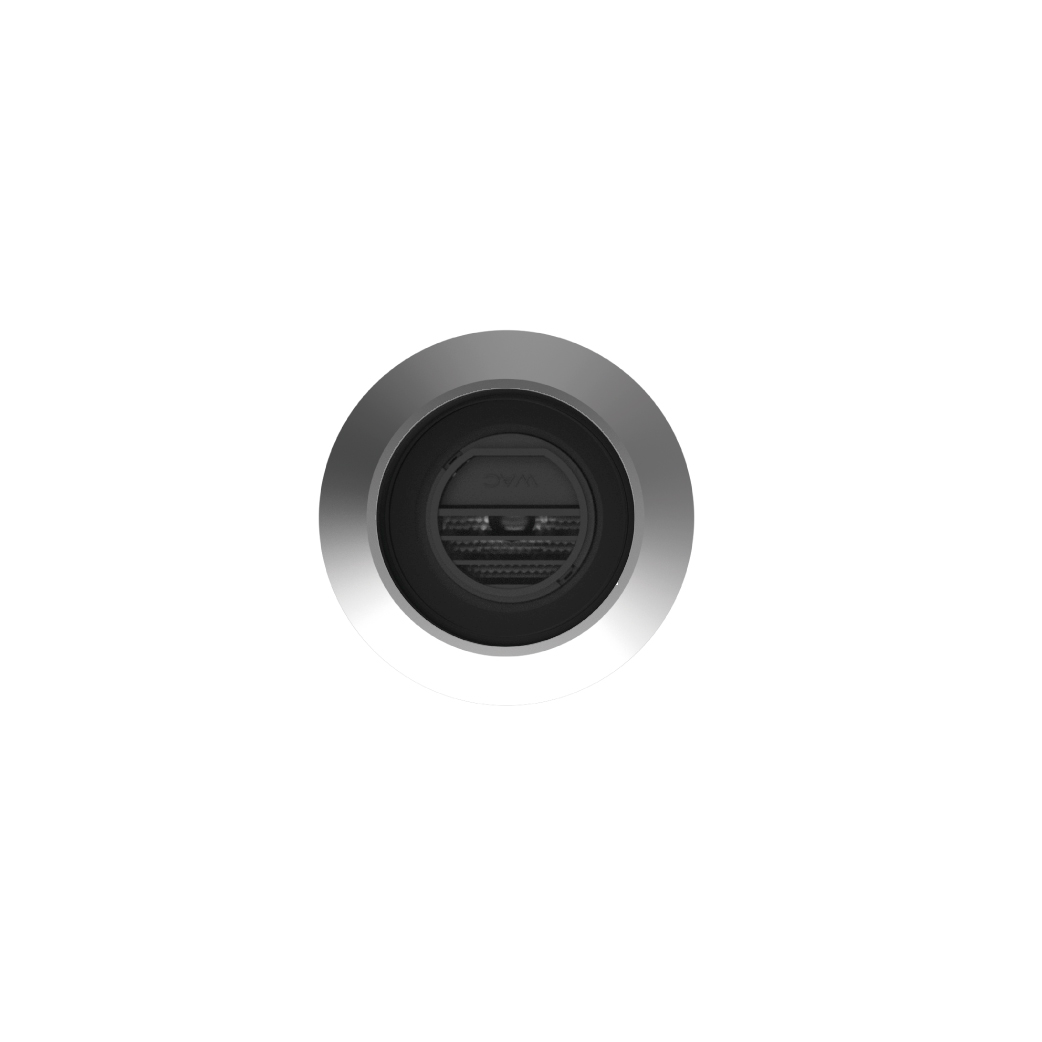

FUEGO COMPACT 53

AEIR4NF/AEIR2NF
FUEGO COMPACT 53 offers robust in-ground performance with stainless steel construction and high impact resistance. Designed for pressurized environments up to 500 kg, it ensures long-term durability in exterior architectural settings.

Features

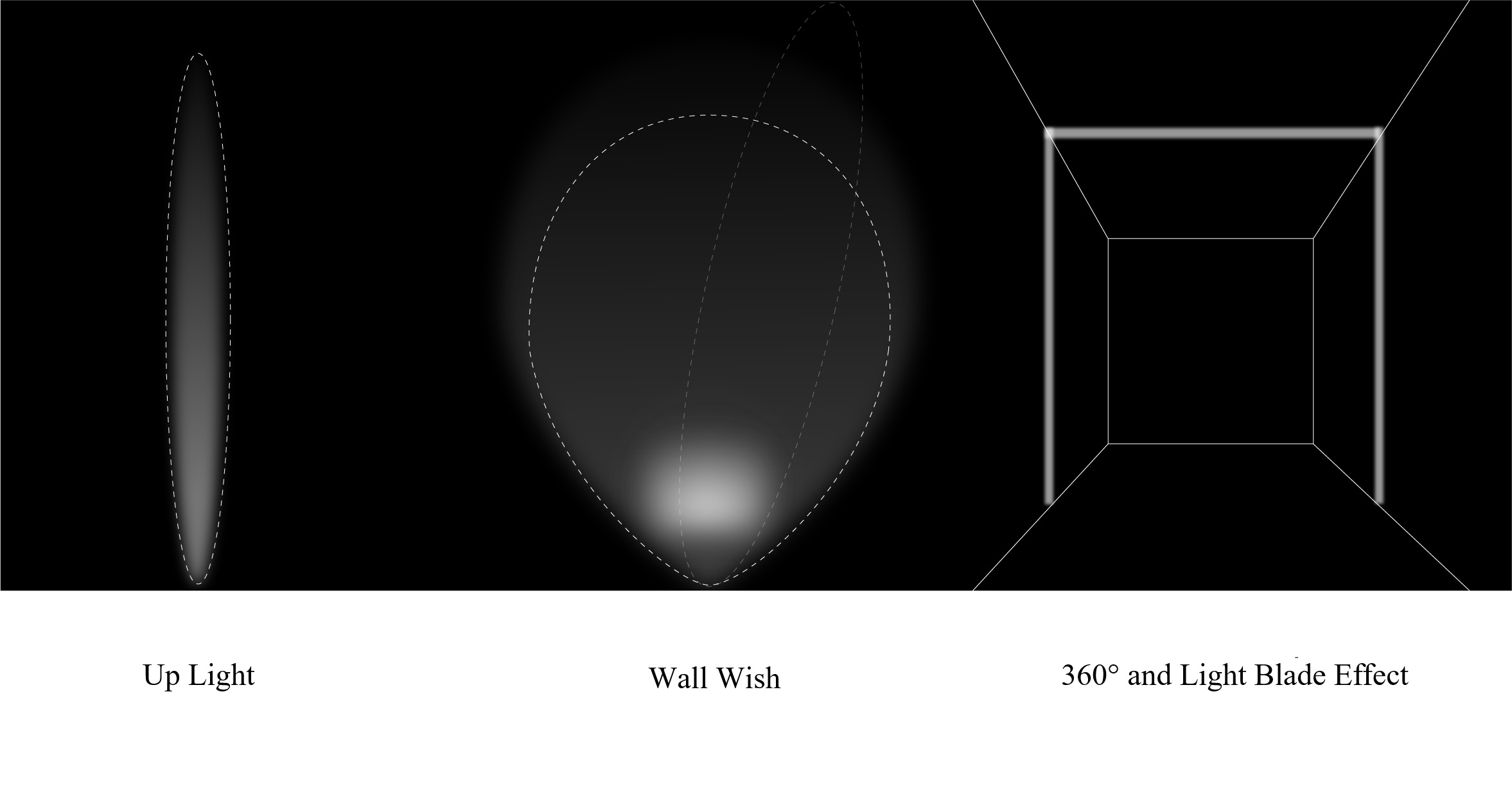

Multiple Optical Configurations

Multiple Optical Configurations

Uplight/ Wall wash/ 360° and light blade effect

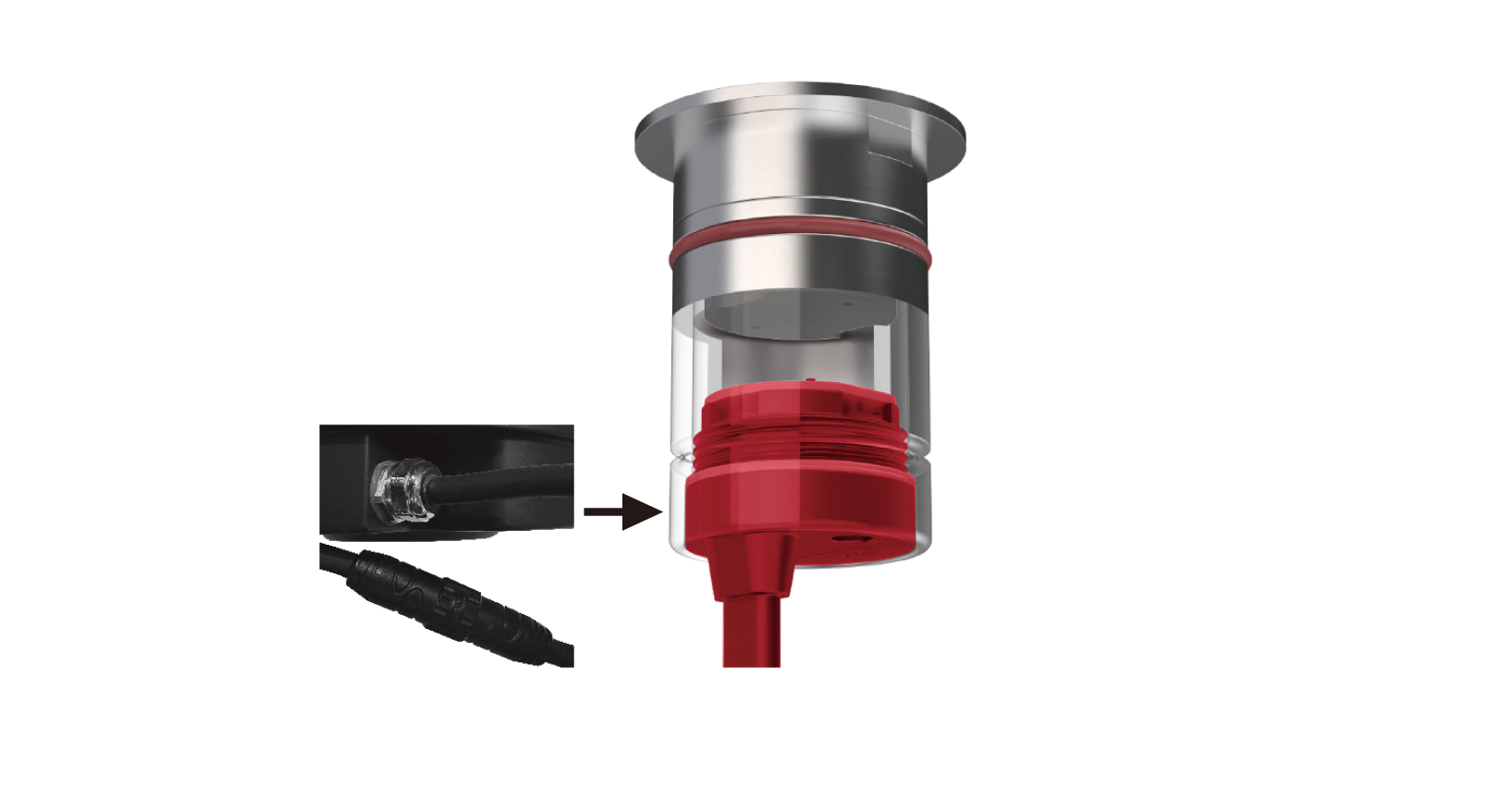

Integral Molding Technology

Integral Molding Technology

Built-in anti-siphon injection molding device to enhance the waterproof performance of luminaires

Videos

FUEGO

Specifications

Model

Power

(W)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

AEIR2NF-04

4(Max)

119

ET ON-OFF

12-24V DC Power Supply

MT DMX512 Dimming

12-24V DC Power Supply

DT 0-10V Dimming

12-24V DC Power Supply



W Wall Washer

L LASER BLADE

S 6°

1 10°

2 20°

3 30°

27 2700K

30 3000K

40 4000K

SS Stainless Steel

Model

Power

(W)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

AEIR2NF-04

4(Max)

87

MT DMX512 Dimming

24V DC Power Supply

1 14°

3 35°

5 50°

F 14X34°

F3 RGBW (3000K)

F4 RGBW (4000K)

F6 RGBW (5700K)

SS Stainless Steel

Model

Power

(W)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

AEIR4NF-04

4(Max)

119

ET ON-OFF

12-24V DC Power Supply

MT DMX512 Dimming

12-24V DC Power Supply

DT 0-10V Dimming

12-24V DC Power Supply



W Wall Washer

L LASER BLADE

S 6°

1 10°

2 20°

3 30°

27 2700K

30 3000K

40 4000K

SS Stainless Steel

Model

Power

(W)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

AEIR4NF-04

4(Max)

87

MT DMX512 Dimming

24V DC Power Supply

1 14°

3 35°

5 50°

F 14X34°

F3 RGBW (3000K)

F4 RGBW (4000K)

F6 RGBW (5700K)

SS Stainless Steel

Example: AEIR4NF-04MT1F3SS
