SHINE PRO MONO

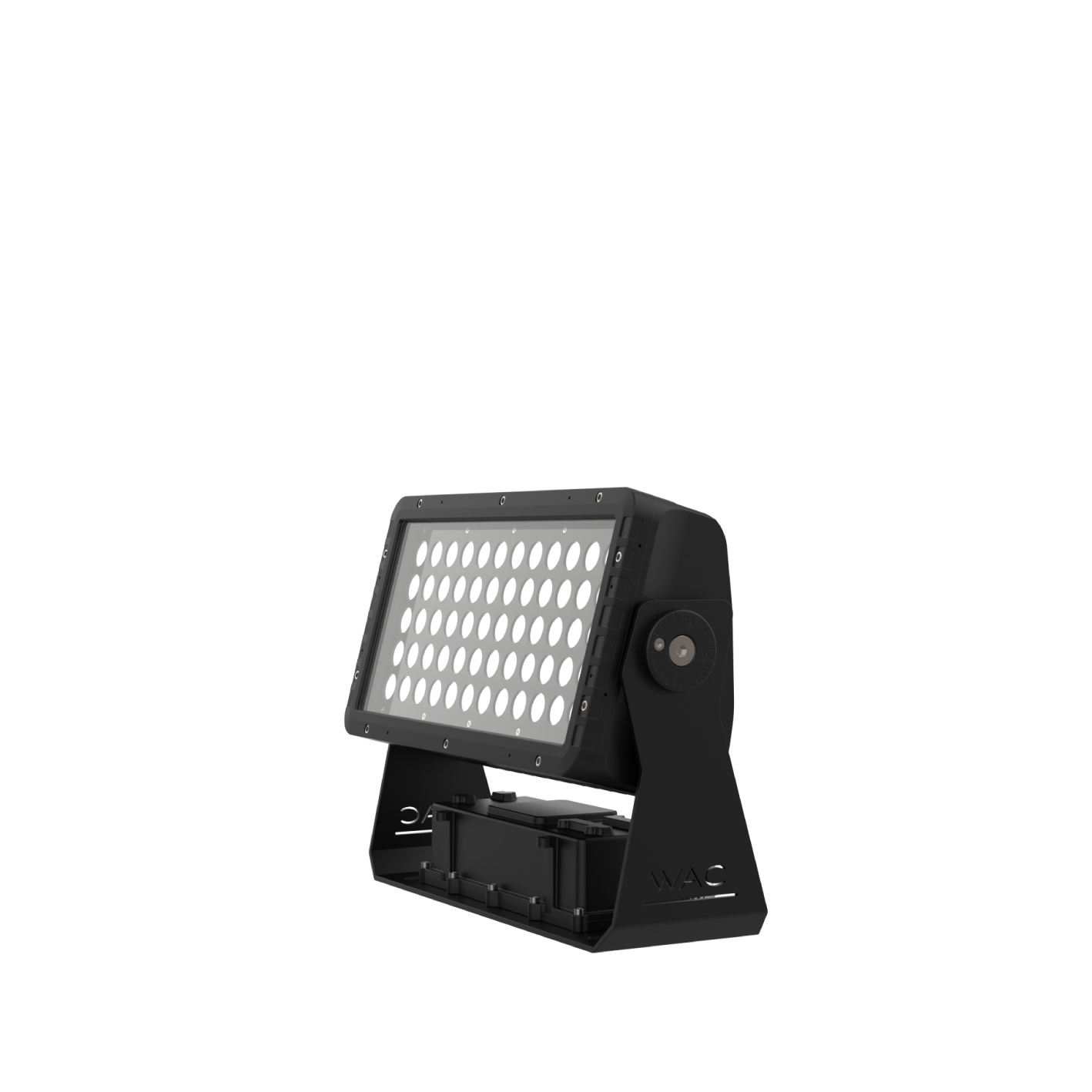

SHINE PRO Mono Flood HP

AEF4TI/AEF4NI/AEF4SI/AEF4MI/AEF4LI
SHINE PRO Mono Flood HP defines high-end exterior flood performance with aerodynamic heat dissipation and integrated breathing valve technology to prevent condensation. Available in multiple sizes and beam angles for architectural façade applications.

Features

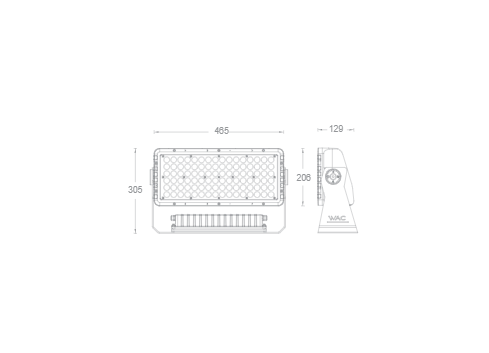

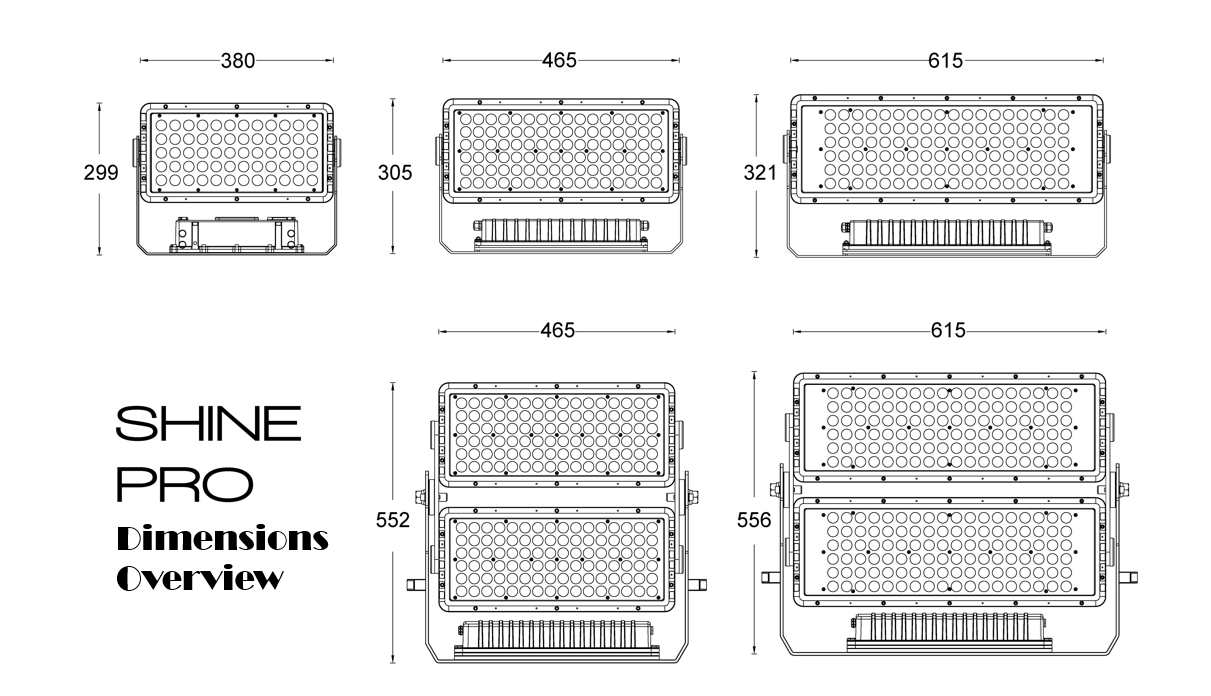

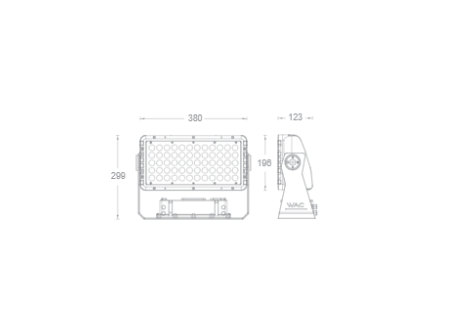

Dimensions Overview

Dimensions Overview

A wide range of size options and power coverage to meet the diverse lighting needs of major bridges and building facades.

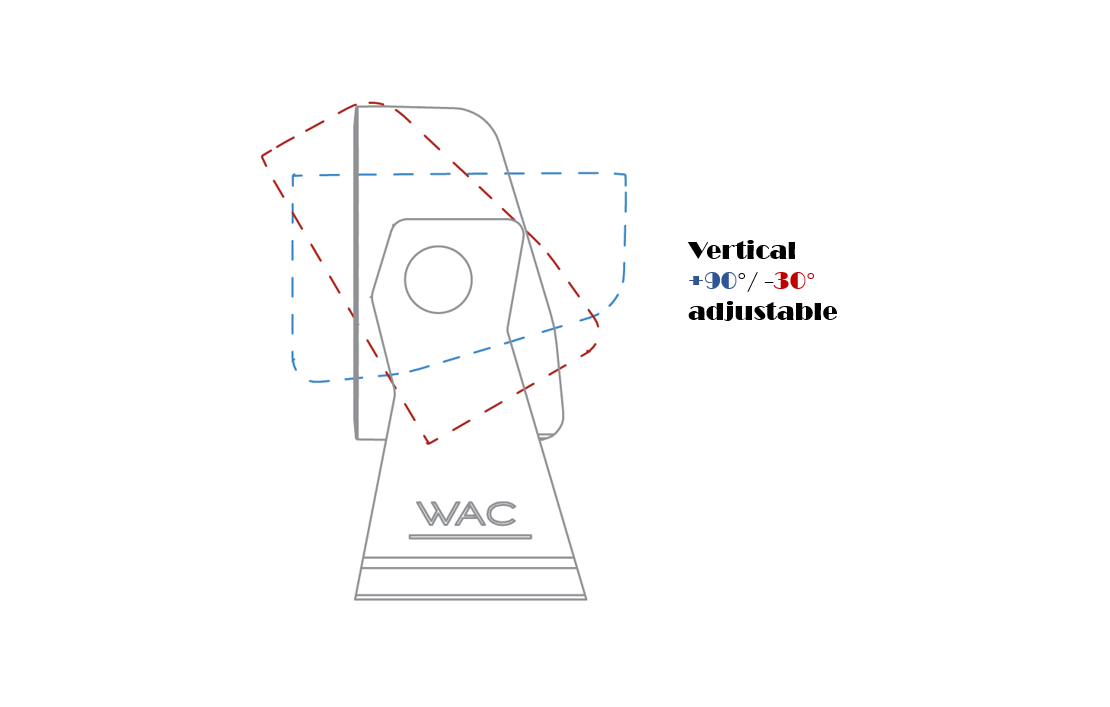

Adjustable Bracket

Adjustable Bracket

Vertical +90°/-30° adjustable. Available with ultra-narrow angle accessory. It ensures high power and precise illumination of the illuminated surface at a small angle and reduces the need to adjust the fixture's position repeatedly.

Specifications

Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4TI

130  130W(Max)

60

10504

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

S  7°

1  12°

2   21°

3   36°

5   50°

J  14° x 56°

27  2700K

30  3000K

40   4000K

BK  Black

Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4NI

190 190W(Max)

96

14779

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

S  9°

1  12°

2   25°

3   36°

5   50°

J  14° x 56°

27  2700K

30  3000K

40   4000K

BK  Black

Model

Power

LEDs (quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4SI

280  280W(Max)

108

21417

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

S  9°

1  12°

2   24°

3   37°

5   50°

J  19° x 56°

27  2700K

30   3000K

40   4000K

BK  Black

Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4MI

380  380W(Max)

192

28274

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

S  9°

1  12°

2   25°

3   36°

5   50°

J  14°*56°

27  2700K

30  3000K

40   4000K

BK  Black

Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4LI

560 560W(Max)

216

42834

EL  ON-OFF

220V AC Power Supply

ML  DMX512
220V AC Power Supply

S  9°

1  12°

2   24°

3   37°

5   50°

J  19° x 56°

27  2700K

30  3000K

40   4000K

BK  Black

Example: AEF4LI-560EL130BK
