SHINE PRO RGBW

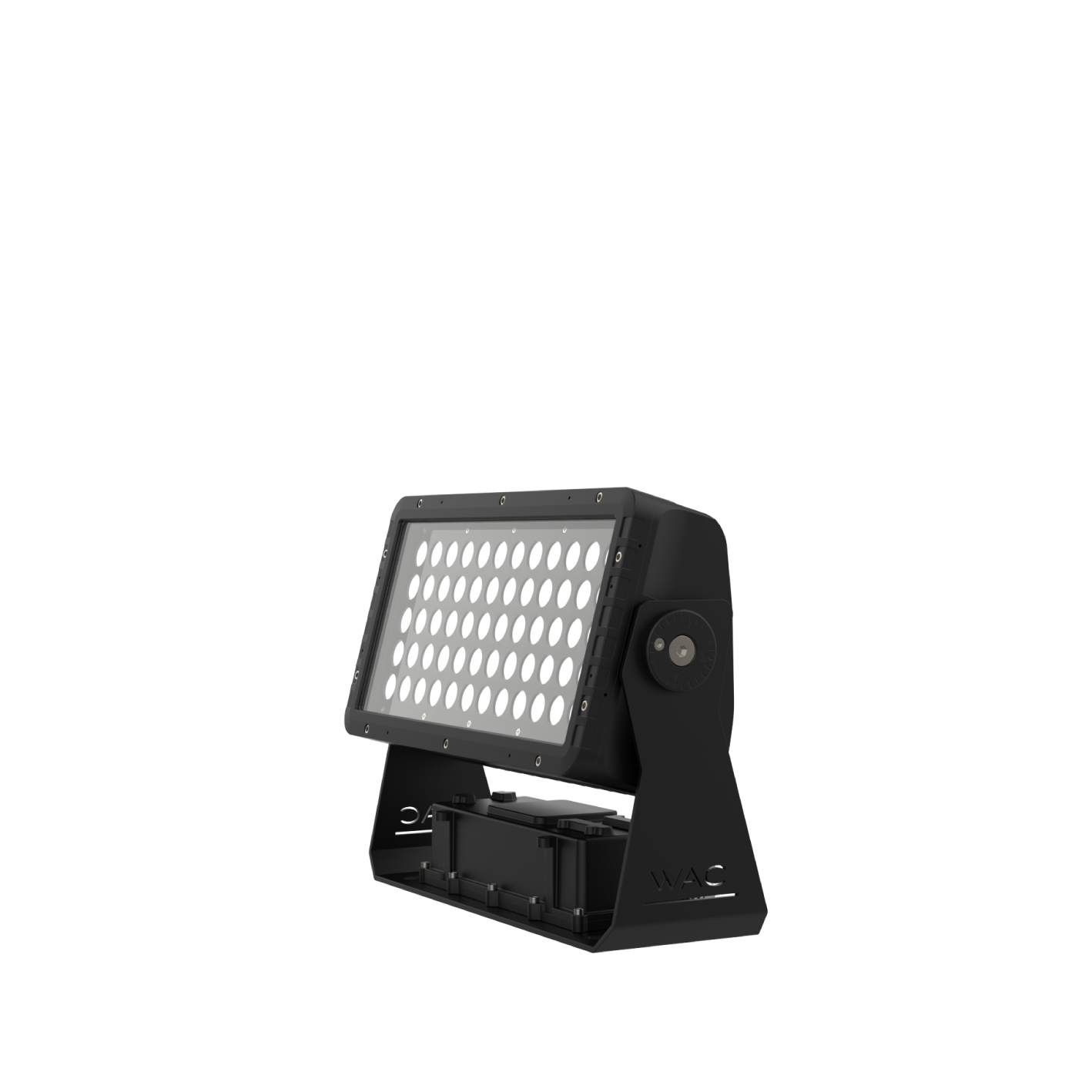

SHINE PRO Flood RGBW HP

AEF4TI/AEF4NI/AEF4SI/AEF4MI/AEF4LI
SHINE PRO Flood RGBW HP combines architectural flood performance with dynamic RGBW capability. Advanced thermal management and condensation control ensure long-term reliability across high-end exterior applications.

Features

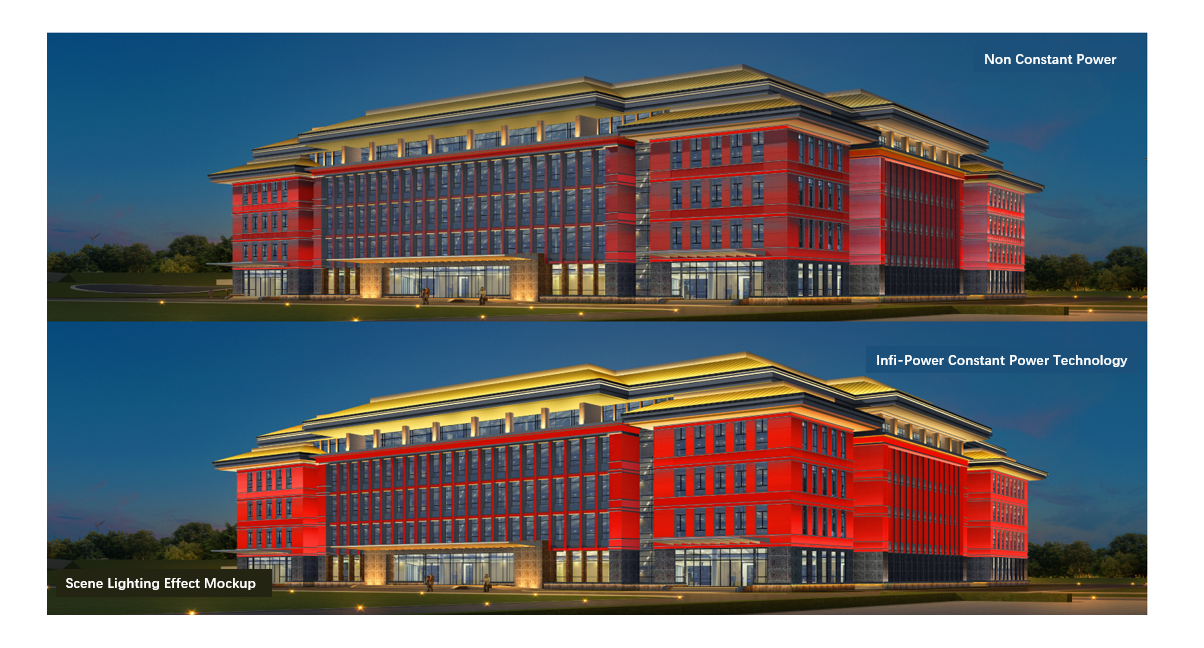

Load Infi-Power Constant Power Technology

Load Infi-Power Constant Power Technology

WAC full-color RGBW whole light provides higher utilization efficiency and maximizes lumen output, whether it is single-color, dual-color or tri-color mixing. Color output brightness is precisely controlled to maintain an excellent balance. In addition to providing unlimited possibilities for color variation, it also eliminates visual disparity and brings a more comfortable visual experience.
Color Blending Up to 14°

Color Blending Up to 14°

Brilliant color is added to accent lighting while maintaining a soft receding halo characteristic that allows for a natural transition of light and provides greater visual comfort.
Adjustable Bracket

Adjustable Bracket

Vertical +90°/-30° adjustable. Available with ultra-narrow angle accessory. It ensures high power and precise illumination of the illuminated surface at a small angle and reduces the need to adjust the fixture's position repeatedly.

Specifications

Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4TI

118  118W(Max)

60

3879

ML  DMX512

220V AC Power Supply

1  12°

2  28°

5   50°

J   14°x27°

F30  RGBW(3000K)

F40  RGBW(4000K)

F60  RGBW(6000K)

BK  Black



Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4NI

161 161W(Max)

96

7334

ML  DMX512

220V AC Power Supply

1  14°

2  29°

5   50°

J   17°x29°

F30  RGBW(3000K)

F40  RGBW(4000K)

F60  RGBW(6000K)

BK  Black



Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4SI

227  227W(Max)

108

10031

ML  DMX512

220V AC Power Supply

1  13°

2  29°

5  50°

J  22°x29°

F30  RGBW(3000K)

F40  RGBW(4000K)

F60  RGBW(6000K)

BK  Black



Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4MI

322  322W(Max)

192

14668

ML  DMX512
  220V AC Power Supply

1  14°

2  29°

5  50°

J  17°x29°

F30  RGBW(3000K)

F40  RGBW(4000K)

F60  RGBW(6000K)

BK  Black



Model

Power

LEDs (Quantity)

Max Lumens (lm)

Control Systems

Beam

CCT

Finish

AEF4LI

454  454W(Max)

216

20063

ML  DMX512

220V AC Power Supply

1  13°

2  29°

5  50°

J  22°x29°

F30  RGBW(3000K)

F40  RGBW(4000K)

F60  RGBW(6000K)

BK  Black

Example: AEF4TI-118ML1F30BK
