35mm Pendant

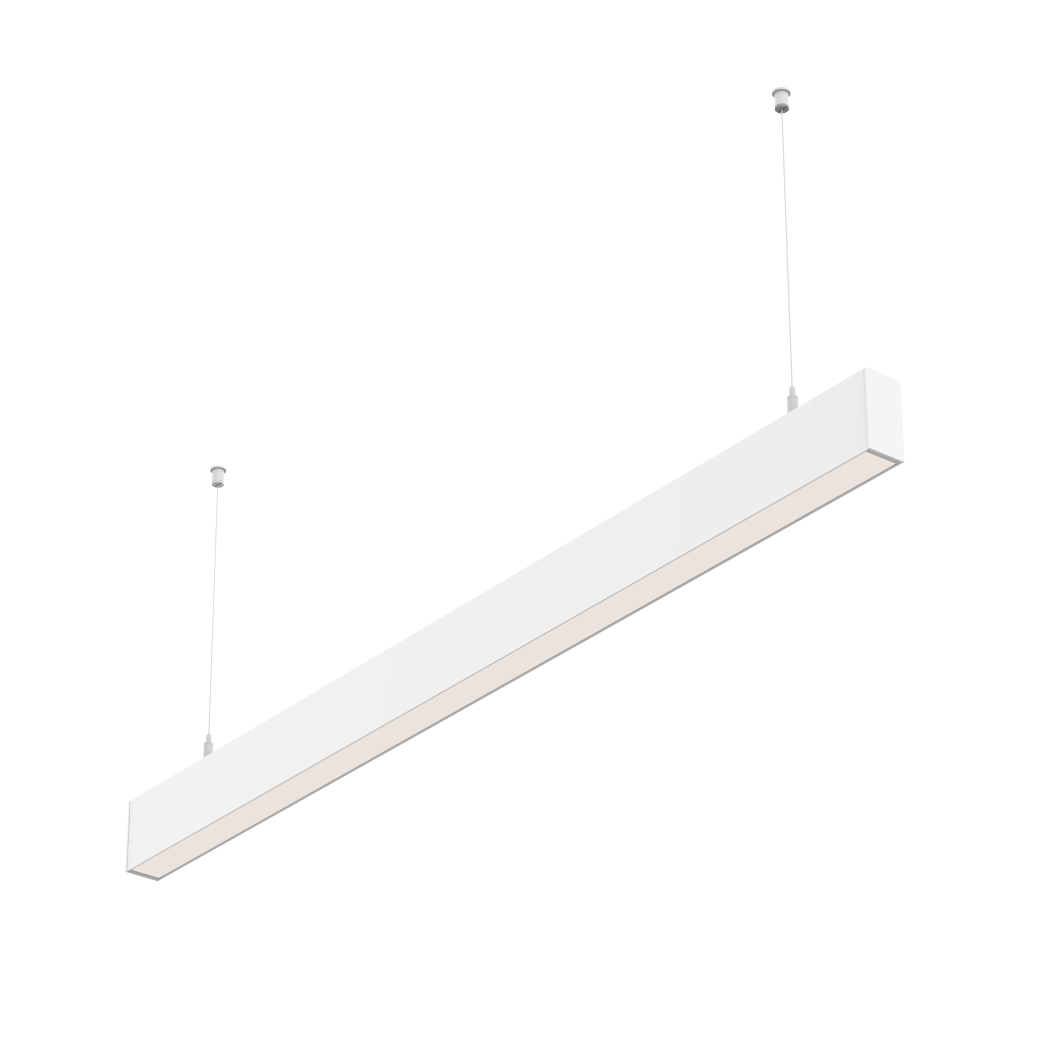

VOLO Pendant 35
OP1NS/OP1ND
VOLO Pendant 35 brings refined linear performance to commercial interiors. Its aluminum profile housing ensures efficient thermal management while delivering energy-efficient, glare-controlled illumination. Customizable lengths and seamless end-to-end connectivity support scalable suspended installations.
Features

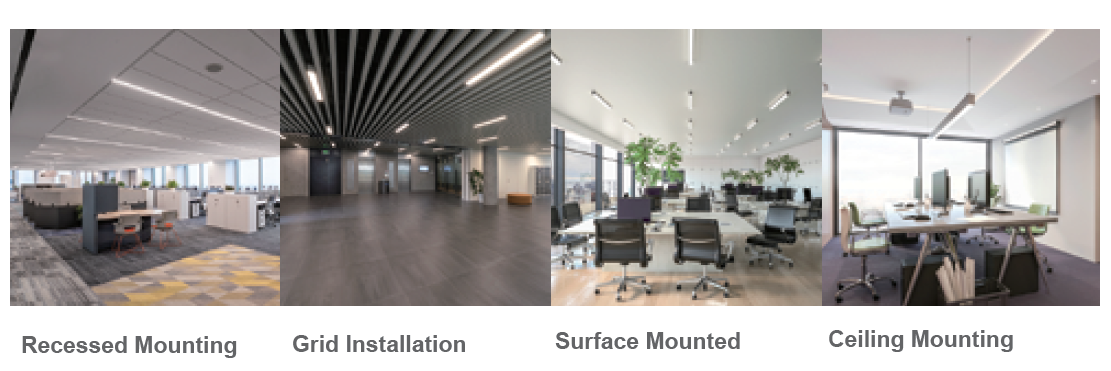

Various Mounting Options Available for VOLO Series
Recessed / Grille Mount / Surface Mount / Suspended Mount

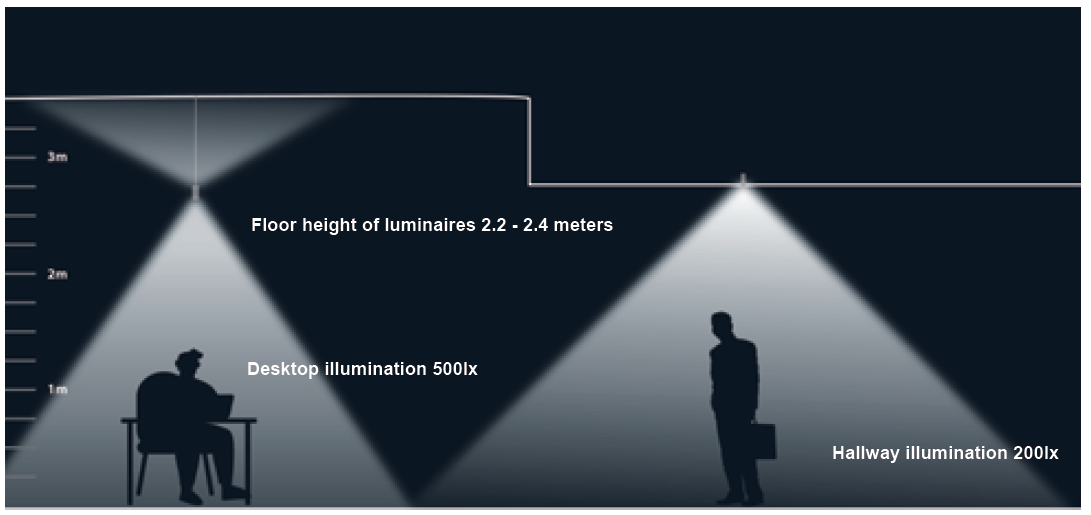

Recommended Luminaire Mounting Height

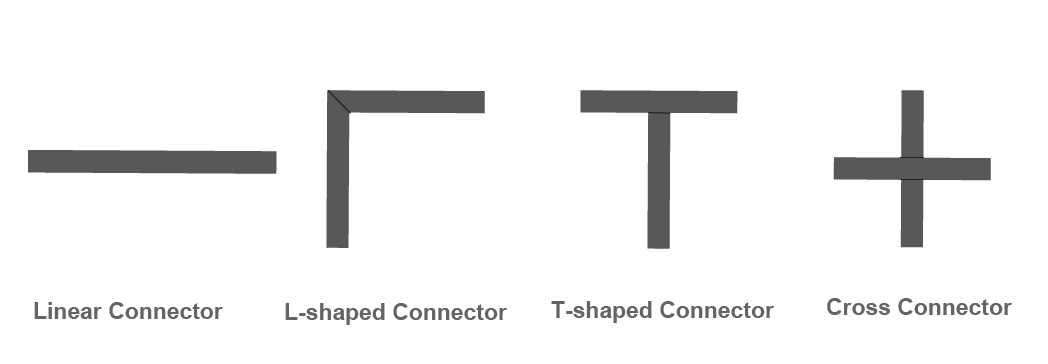

Wide Range of Accessory Options for Different Applications
The patented track connector ensures that the luminaire can be individually adapted to the needs of different settings.
Specifications

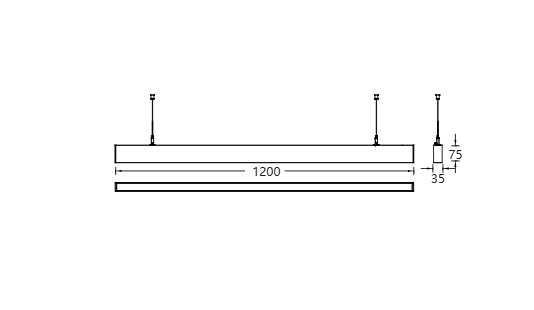

| Model | Comment | Length(mm) | Power(W) | Driver | Beam | CCT | Finish |
| OP1N | S Single Directional Downward-illuminated | 12 1200 | 25 25W | E ON-OFF D 0-10V Dimming A DALI | P Matte Y Prism | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |

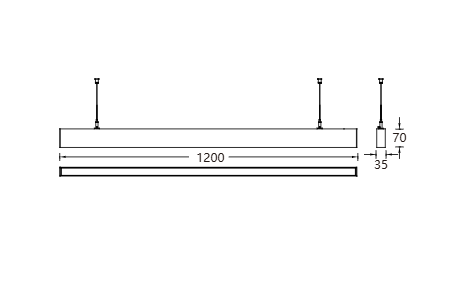

| Model | Comment | Length(mm) | Power(W) | Driver | Beam Up | Beam Down | CCT | Finish |
| OP1N | D Double Directional Two-sided illuminated | 12 1200 | 35 35W (Down:25W, Up:10W) | E ON-OFF D 0-10V Dimming A DALI | F Frosted | P Matte Y Prism | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Example: OP1ND-1235E-FY40WT
