1 / 2
40mm Rimmed Mounted

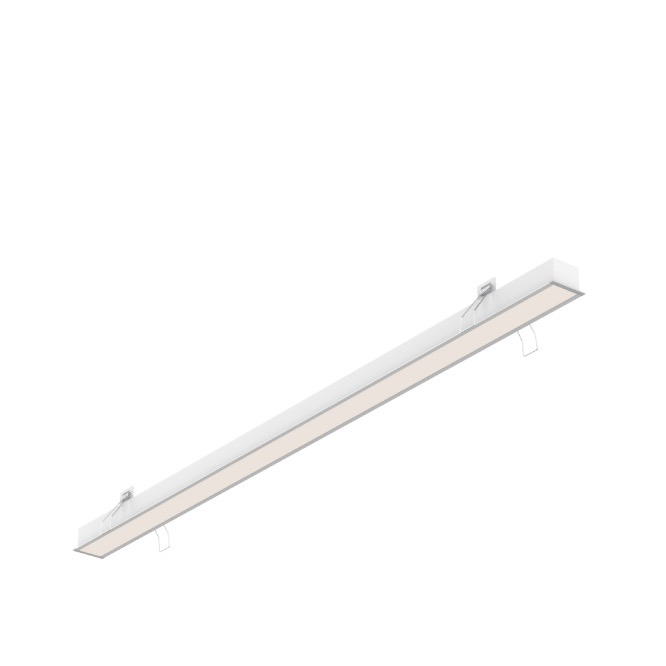

VOLO Rimless Mounted 40
OR1ST
VOLO Rimless Mounted 40 brings refined linear performance to commercial interiors. Its aluminum profile housing ensures efficient thermal management while delivering energy-efficient, glare-controlled illumination. Customizable lengths and seamless end-to-end connectivity support scalable rimless mounted installations.
Features

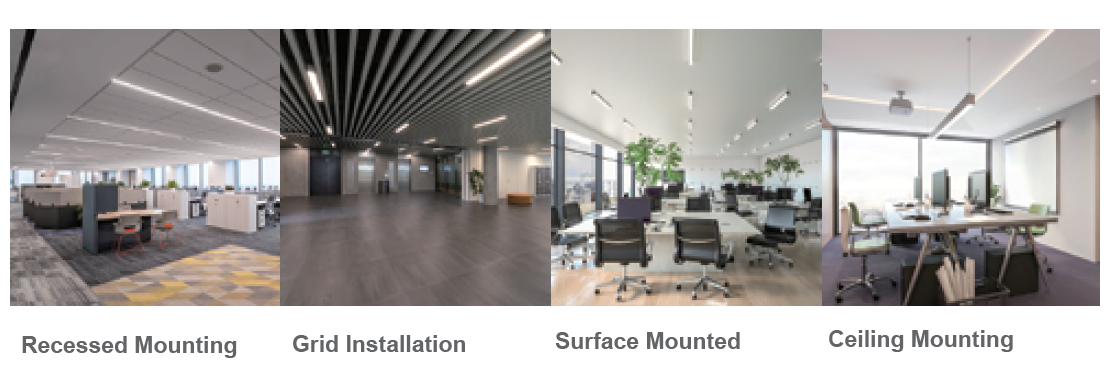

Various Mounting Options Available for VOLO Series
Recessed / Grille Mount / Surface Mount / Suspended Mount

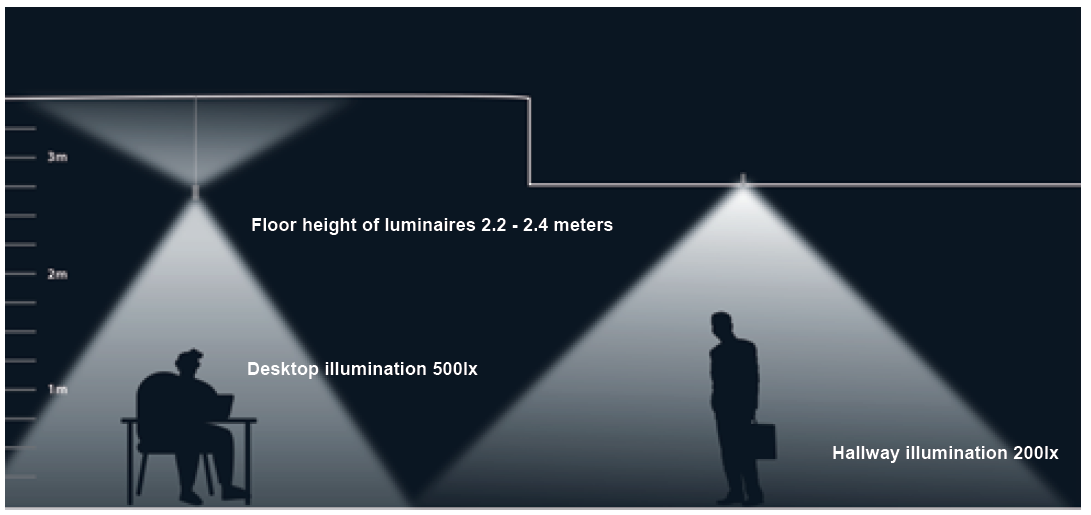

Recommended Luminaire Mounting Height
Wide Range of Accessory Options for Different Applications
The patented track connector ensures that the luminaire can be individually adapted to the needs of different settings.
Specifications
Model | Comment | Length(mm) | Power (W) | Driver | Beam | CCT | Finish |
OR1S | T Trim | 12 1212 | 30 30W | E ON-OFF D 0-10V Dimming A DALI | P Matte Cover Y Prism Cover | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Example: OR1ST-1230E-Y40WT
