SLANA CEILING WASH

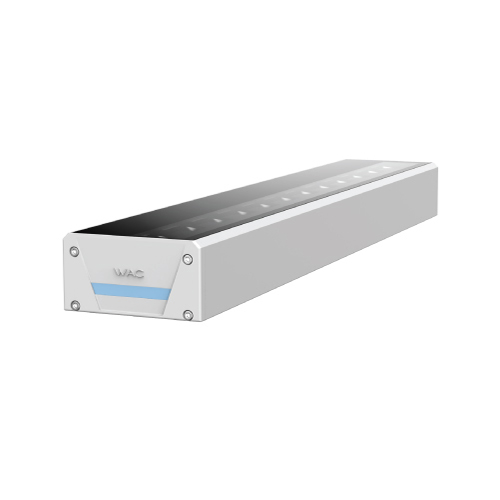

SLANA Linear Ceiling Wash
AEW403/AEW405/AEW410
SLANA Linear Ceiling Wash transforms ceiling planes into architectural features. Wall-mounted and compact, it integrates dual optical distribution systems and angular structural design for smooth, controlled wash performance in corridors and public ceilings.
Features

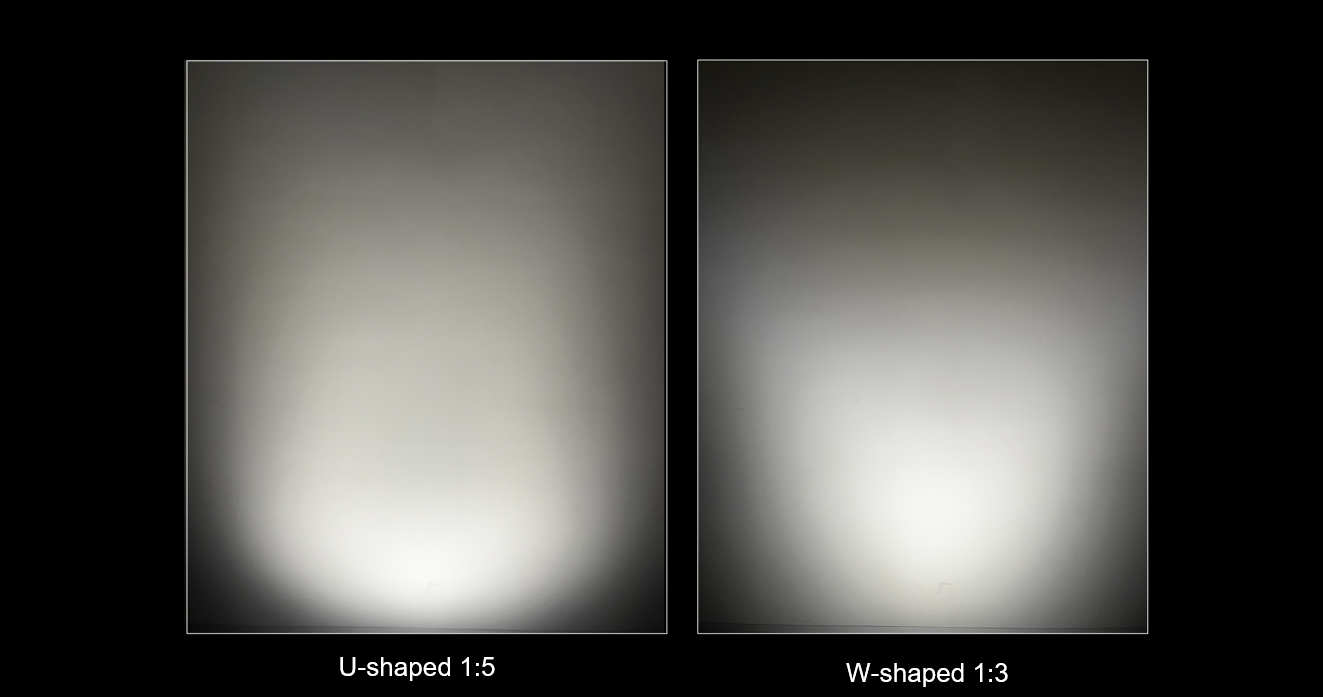

Two Optical System
Polarized Lighting Wall Washer System design, precise control of the optical path, to ensure that the light effect is maximized. U-shaped 1:5 and W-shaped 1:3 wall washers are provided to develop a more complete wall wash lighting system.

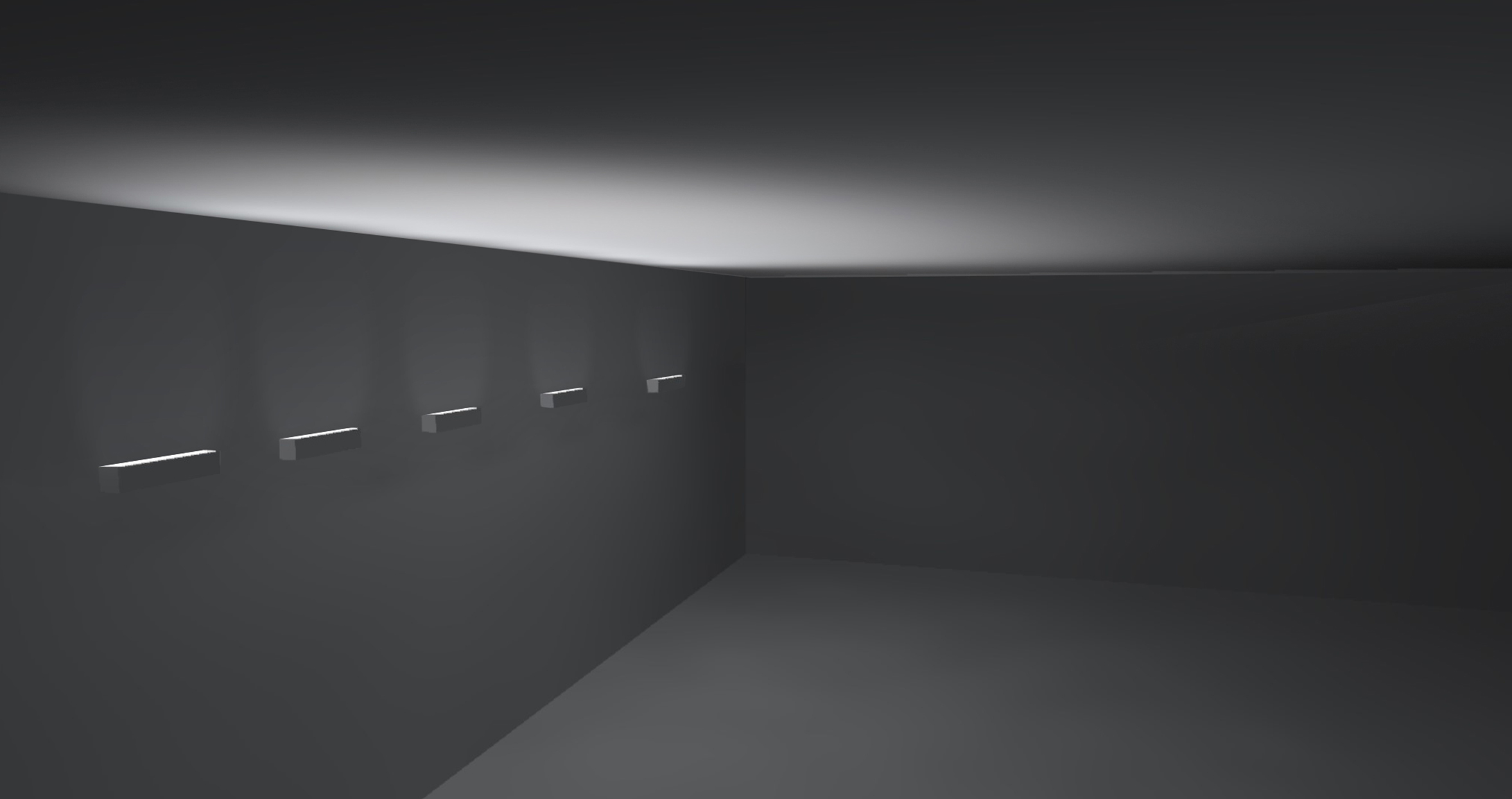

W-shaped Light Distribution
Lighting spacing is 0.7m, 1m height from ceiling optical simulation.

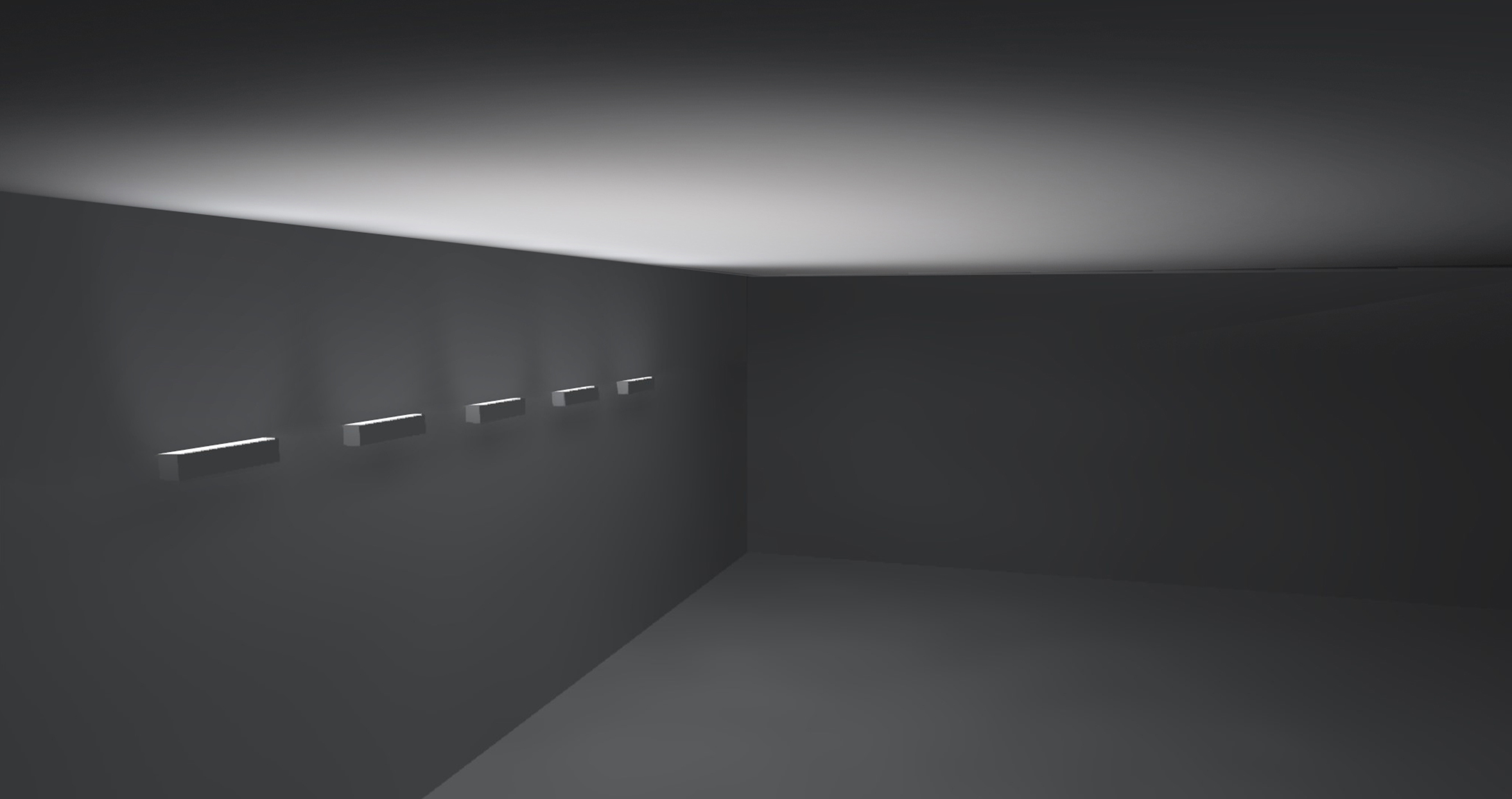

U-shaped Light Distribution
Lighting spacing is 0.5m, 1m height from ceiling optical simulation.

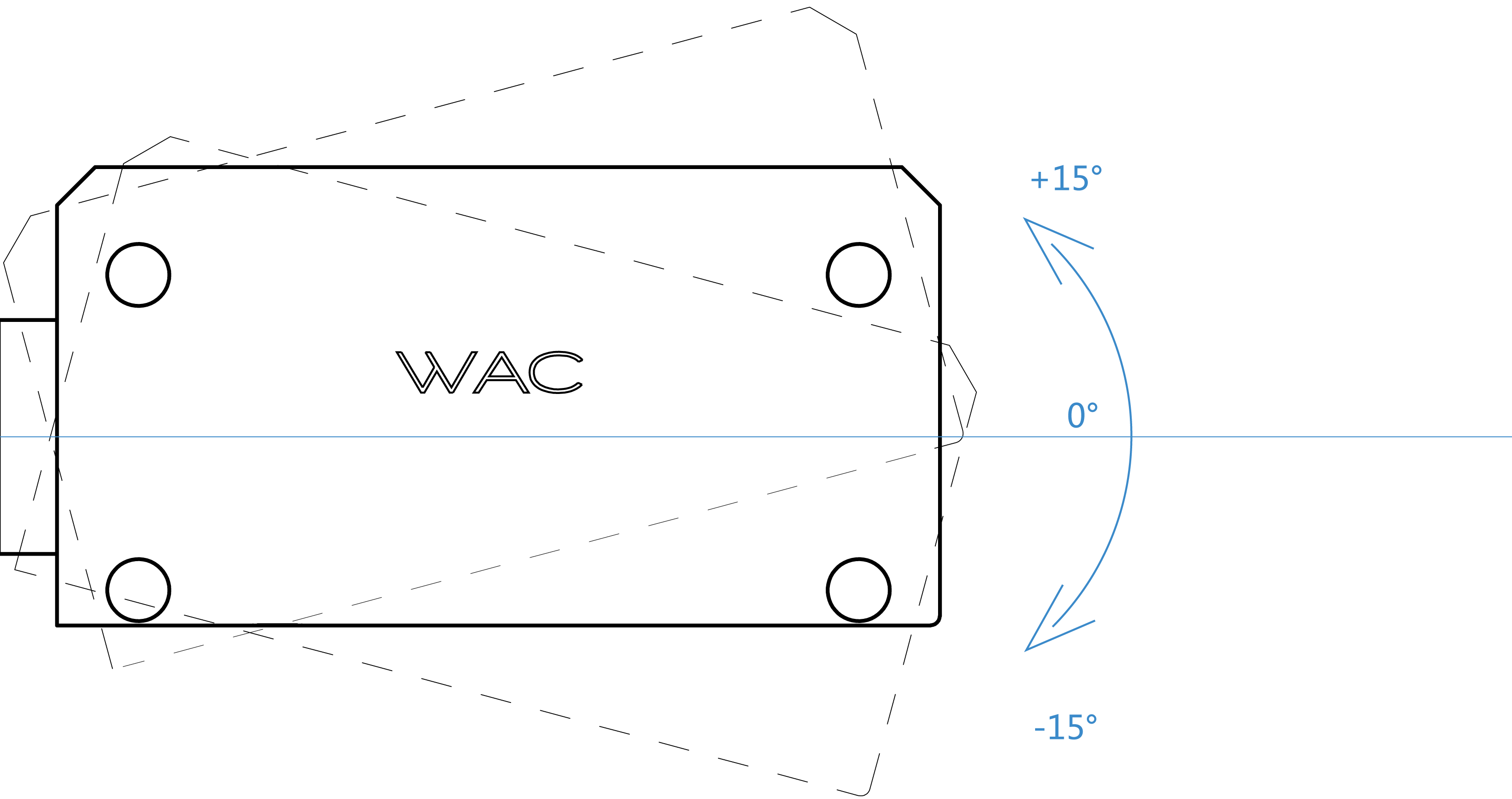

Flexible Installation with Easy Adjustment
Supports ±15 degrees of vertical adjustment of the scene surface, allowing for greater flexibility and convenient use.
Specifications
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
AEW403C-11 AEW405C-24 AEW410C-48 | 300 500 1000 | 11(Max) 24(Max) 48(Max) | 14 24 48 | 646 1410 2820 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | U Washer （1：5） W Washer（1：3） | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Example: AEW403C-11ELU27WT
