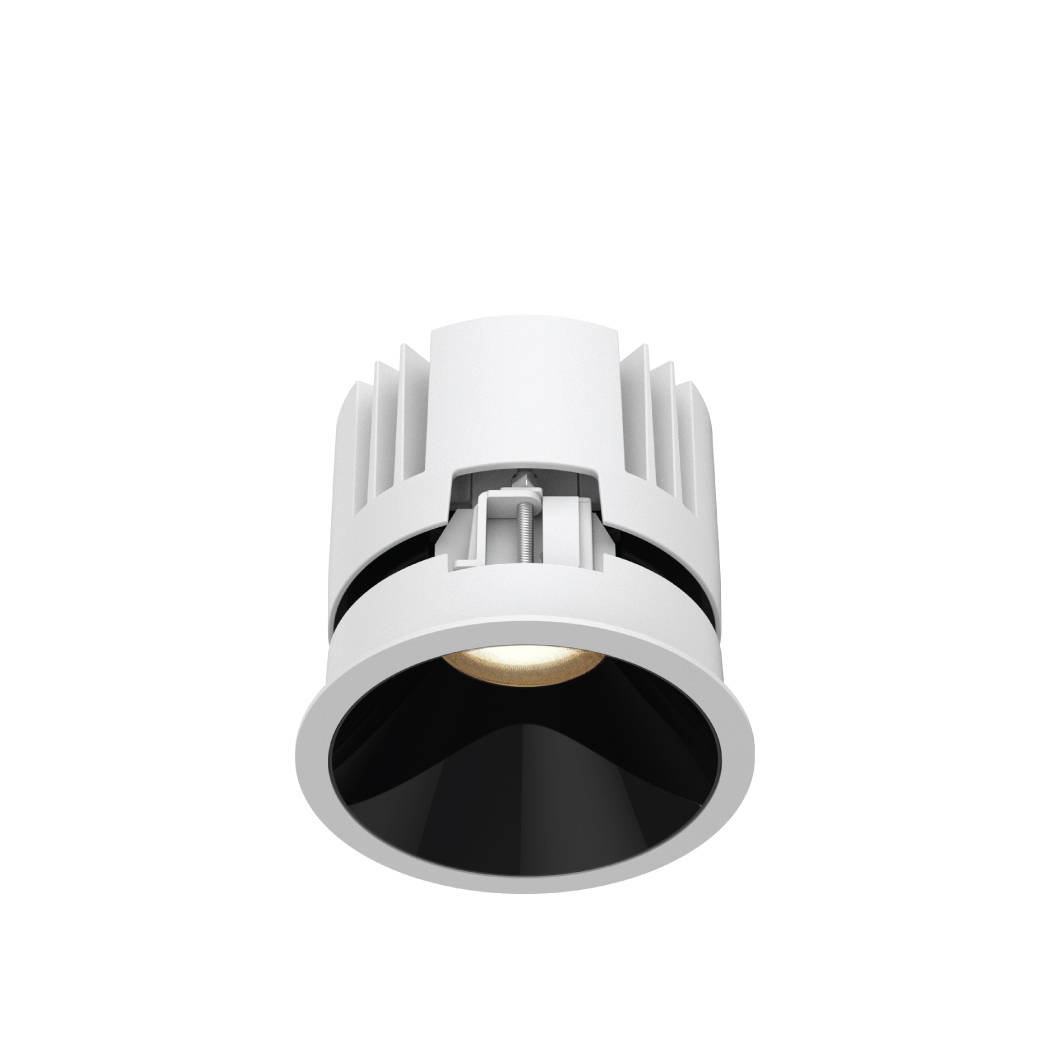

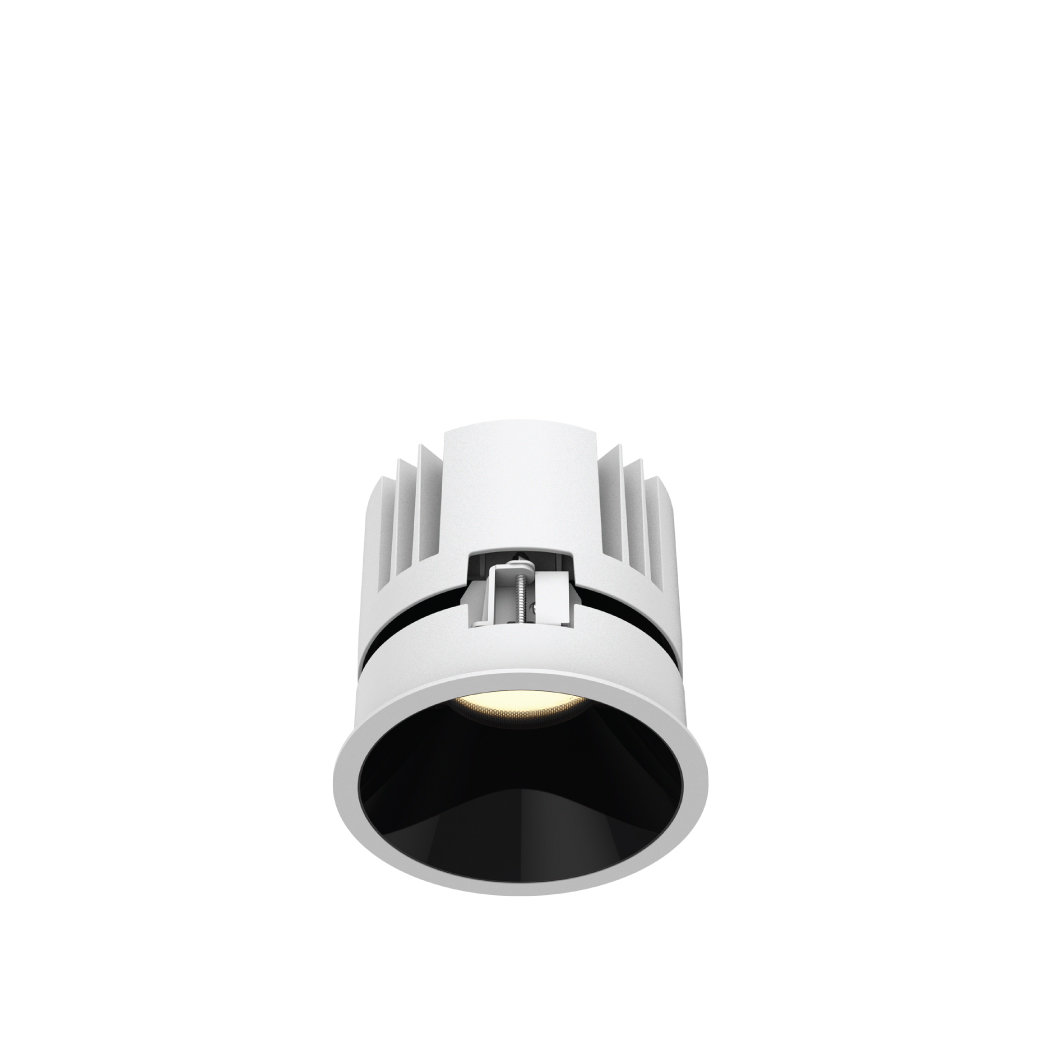

VOLTA II Round

1 / 4

VOLTA II

ADLT31/ADLT41 3/4"

VOLTA II Round expresses disciplined circular geometry with a narrow trim profile that integrates quietly into the ceiling plane. A precision-engineered lens paired with a black mirror reflector ensures strong luminous efficacy while delivering exceptional glare suppression. The sealed optical chamber protects long-term performance in humidity-prone environments, and interchangeable reflectors or accessories enhance flexibility during installation and future maintenance.

Features

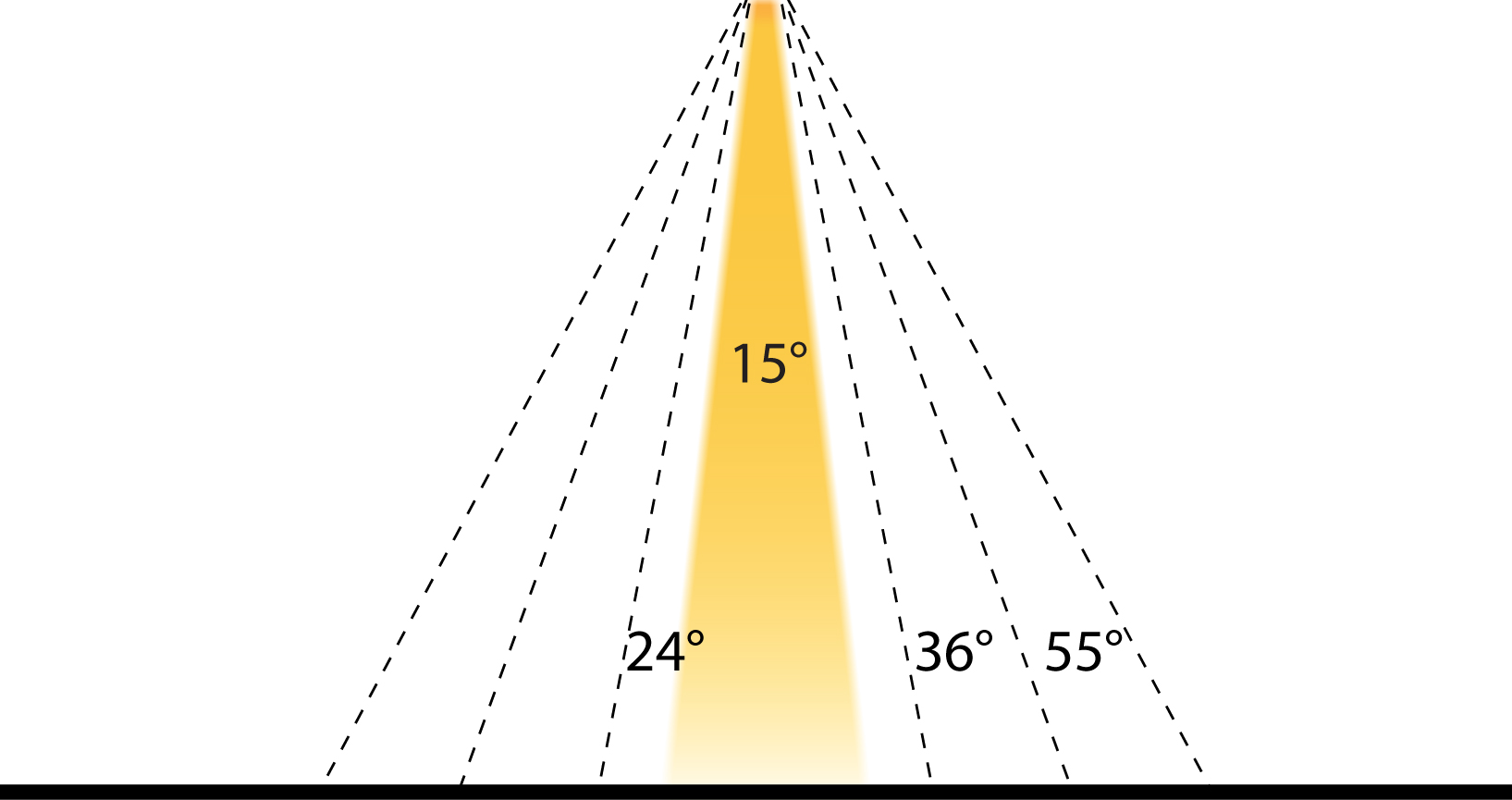

Multiple optical angles are available

Available in 15°, 24°, 36°, and 55° beam angles to meet diverse lighting needs.

No Stray Light Spots

When actually lit, the light spot is clean and soft, with no stray light.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

3 3”

1 Round Trim

LM07 COB 7W

LM10 COB 10W

LM13 COB 13W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

3 3”

1 Round Trim

LM13 COB 13W

N No Driver

A DALI

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

4 4”

1 Round Trim

LM13 COB 13W

LM18 COB 18W

E On-Off

D 0-10V Dimming

N 12°

1 18°

2 24°

3 36°

5 55°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

4 4”

1 Round Trim

LM18 COB 18W

N No Driver

A DALI

N 12°

1 18°

2 24°

3 36°

5 55°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Example: ADLT41-LM18E230SWT

Documents

SPECSHEET ADLT31&41 Download Preview
LINEDRAWING ADLT31&41 Download
IES FILES ADLT31&41 Download
INSTALLATION ADLT31&41 Download Preview
