VOLTA II

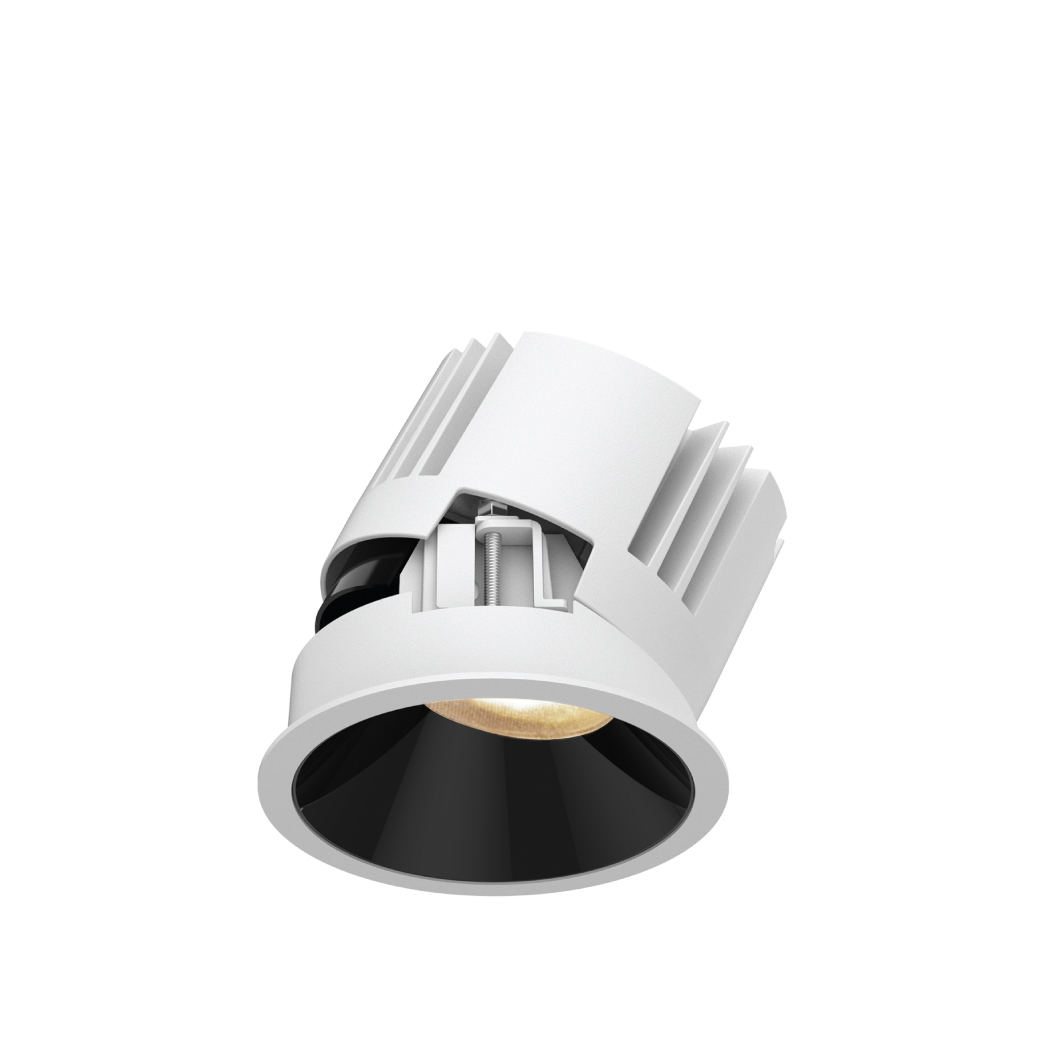

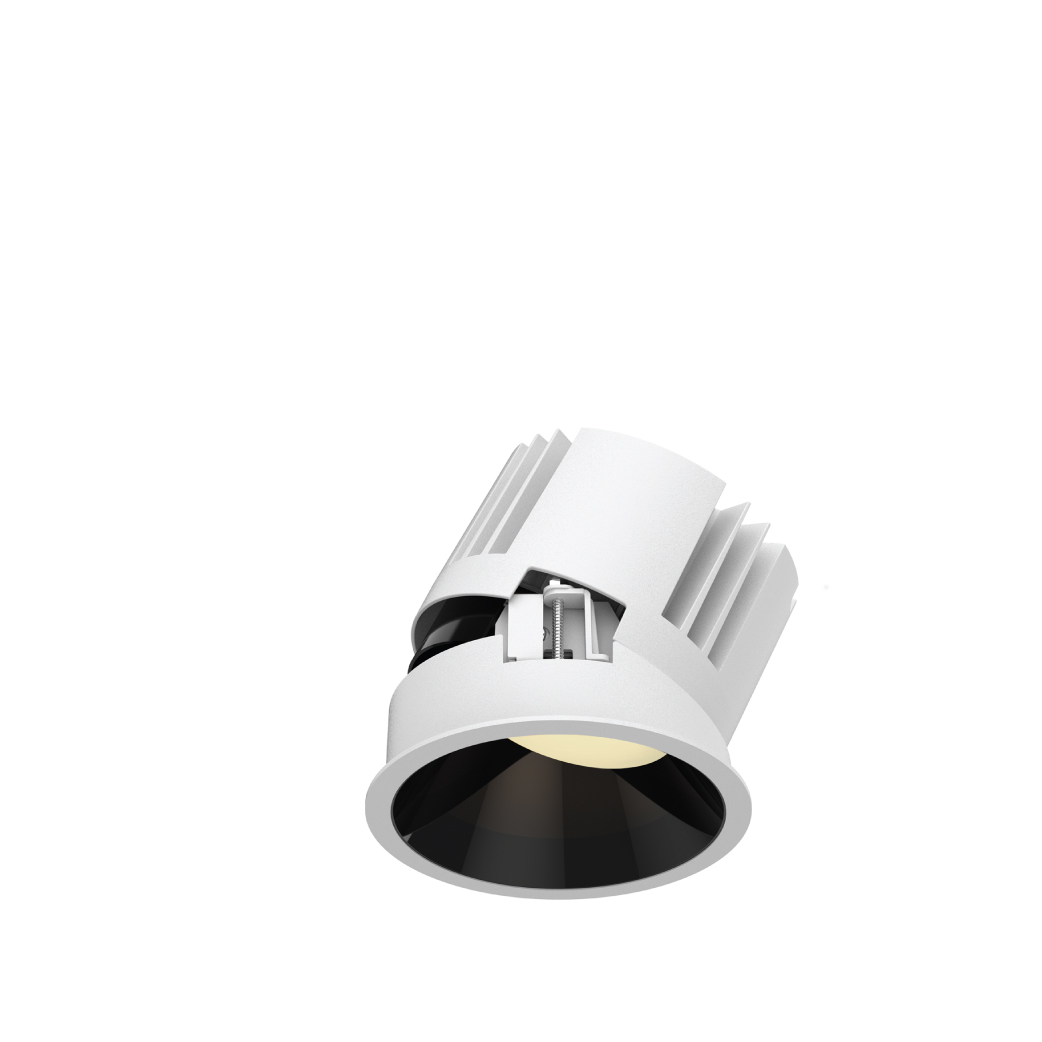

VOLTA II Round Adjustable 3/4

ADDT31/ADDT41 3/4"
VOLTA II Round Adjustable 3/4 features a streamlined narrow-trim profile that integrates seamlessly into hospitality and commercial ceilings. Integrated adjustable aiming enhances beam placement without compromising visual comfort. A precision lens and black reflector system deliver high luminous efficacy with outstanding glare control. The sealed light engine minimizes environmental impact on performance while supporting long-term reliability. Removable and replaceable optical components provide exceptional on-site flexibility and serviceability.

Features

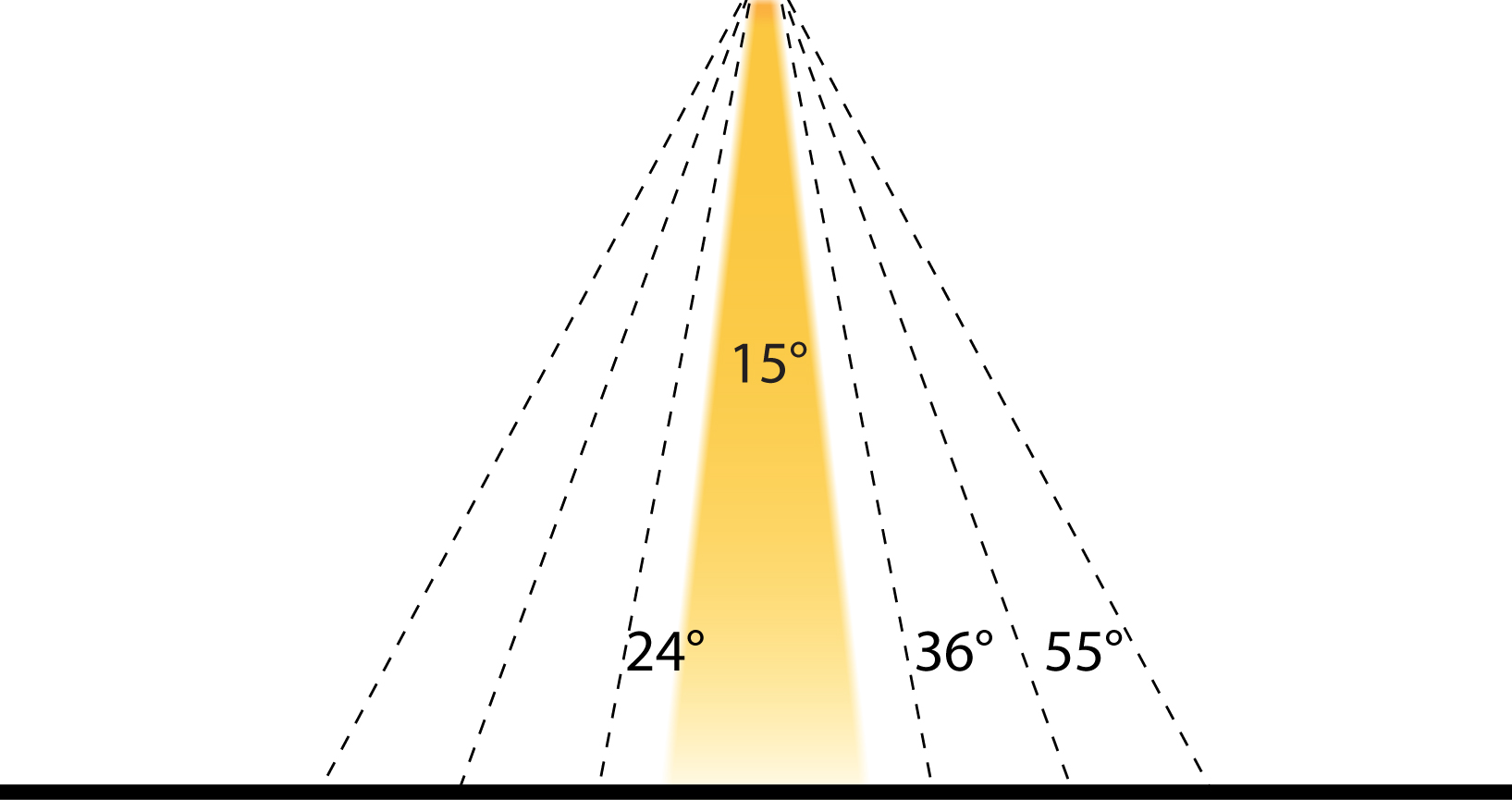

Multiple Beam Angles Available

Multiple Beam Angles Available

The series offers four optical configurations — 15°, 24°, 36°, and 55° — to meet diverse lighting requirements.
Clean, Soft Beam (Right: VOLTA)

Clean, Soft Beam (Right: VOLTA)

Actual lighting demonstration shows a clean and uniform beam with no stray light.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

3  3”

1  Round Trim

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

3  3”

1  Round Trim

LM13  COB 13W

N  No Driver

A  DALI

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4  4”

1  Round Trim

LM13  COB 13W

LM18  COB 18W

E  On-Off

D  0-10V Dimming

N    12°

1     18°

2     24°

3     36°

5     55°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4  4”

1  Round Trim

LM18  COB 18W

N  No Driver

A  DALI

N    12°

1     18°

2     24°

3     36°

5     55°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular



WT  White

BK   Black

Example：ADDT41-LM18E230SWT
