ULTRA

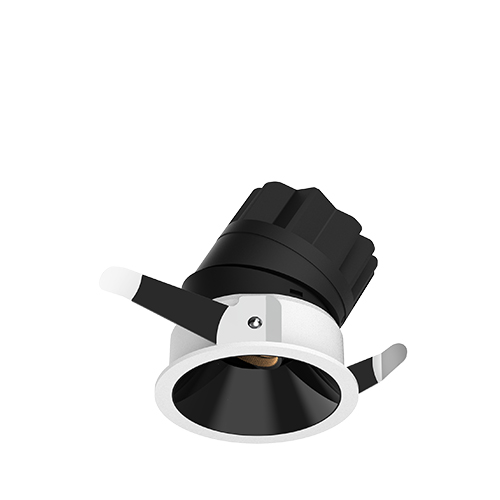

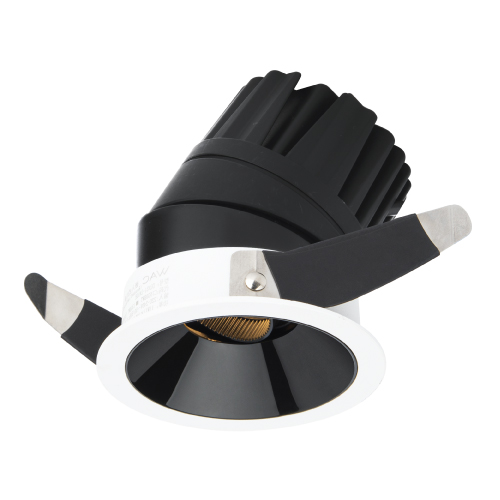

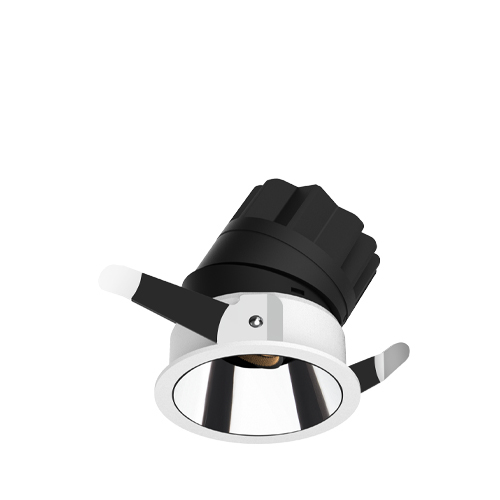

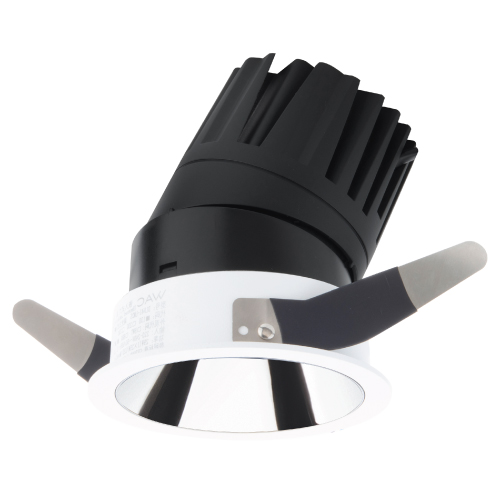

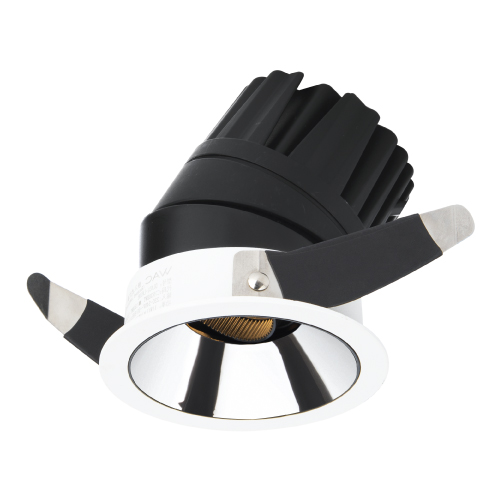

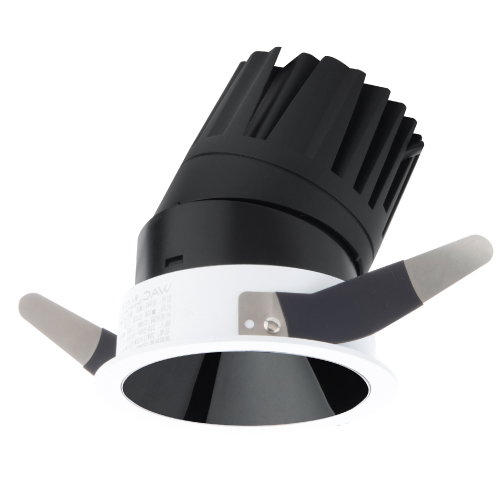

ULTRA Round Narrow
ADLN21/ADLN31/ADLN41 2/3/4"
A narrow aperture with full-spec capability. ULTRA Round Narrow combines fixed and adjustable functionality in one recessed platform, keeping beam control precise through the full tilt range. Its fully sealed optical design prevents light leakage and preserves a clean ceiling plane, while concealed light technology refines glare suppression and color consistency. With modular optics and field-replaceable components, ULTRA supports long-term flexibility in demanding project environments.
Features

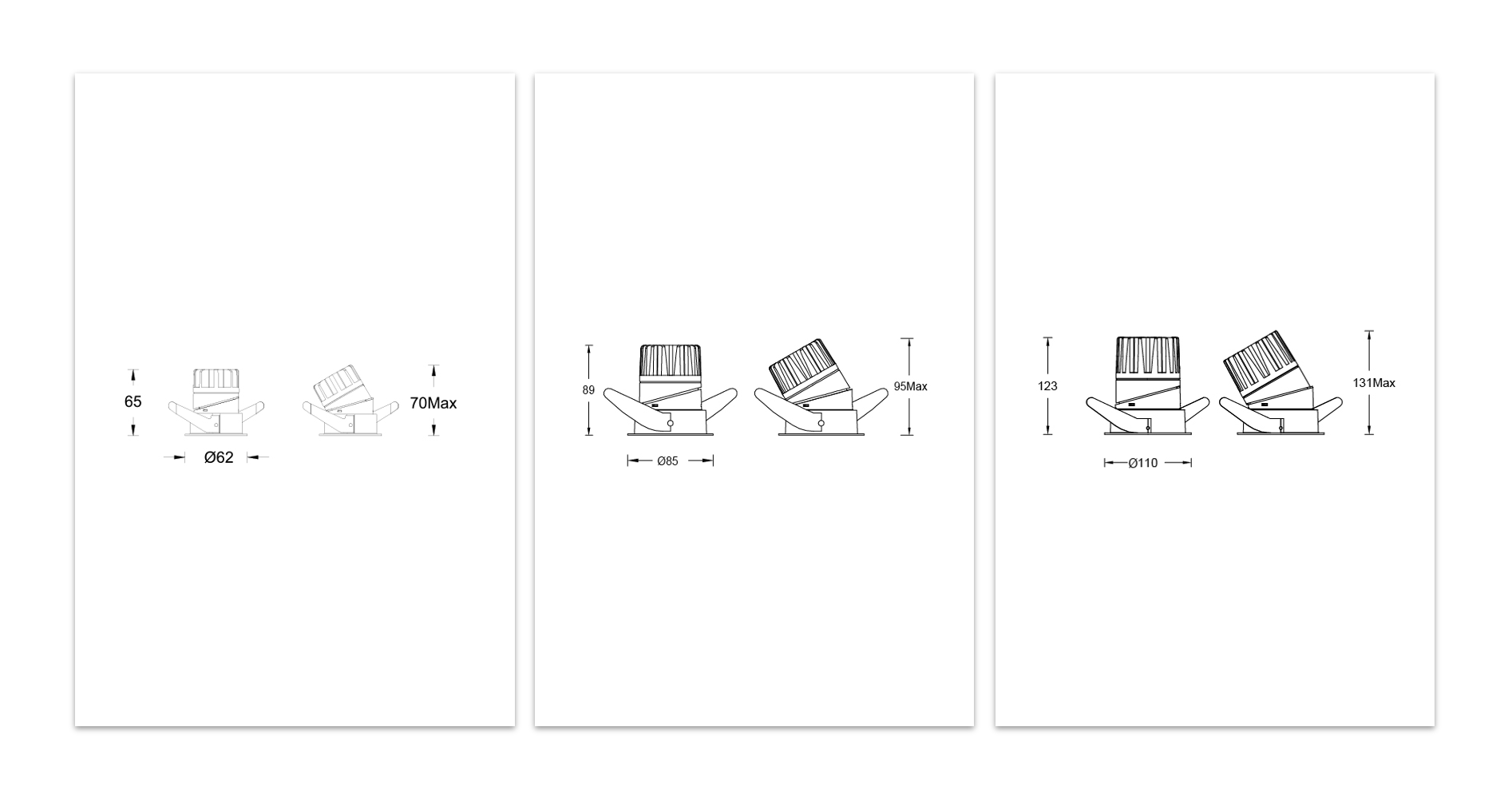

Product Line Drawing

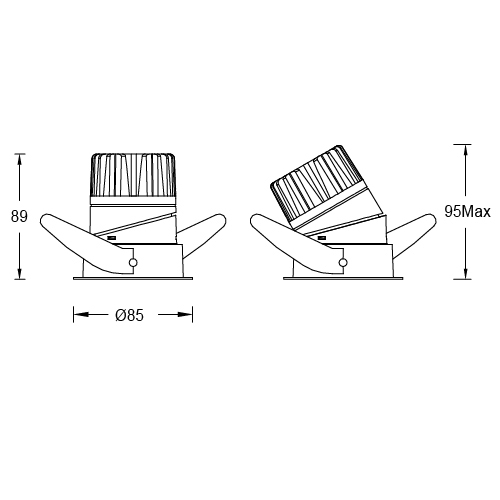

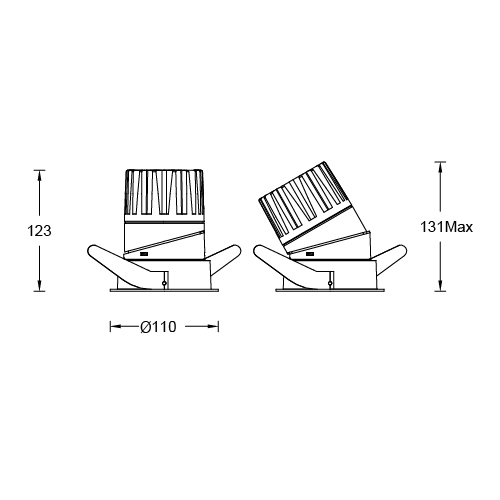

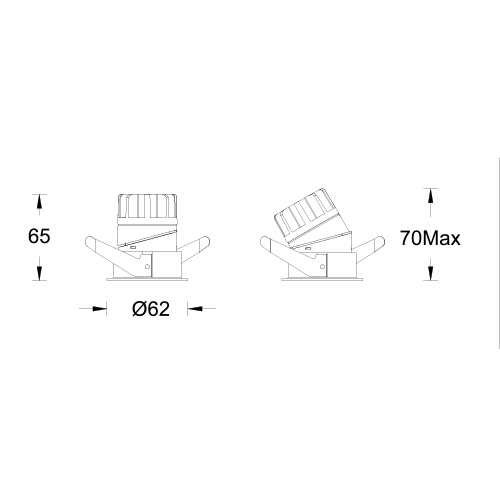

2/3/4 Line Drawing Preview
The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Through the patented tilt angle adjustment design, it makes to realize both fixed and adjustable downlight. Sealed design of the whole fixture ensures no light leakage in the process of tilt the angle.
No messy fish tail light spot
The spot remains clean and intact complete status throughout the ULTRA adjustment process

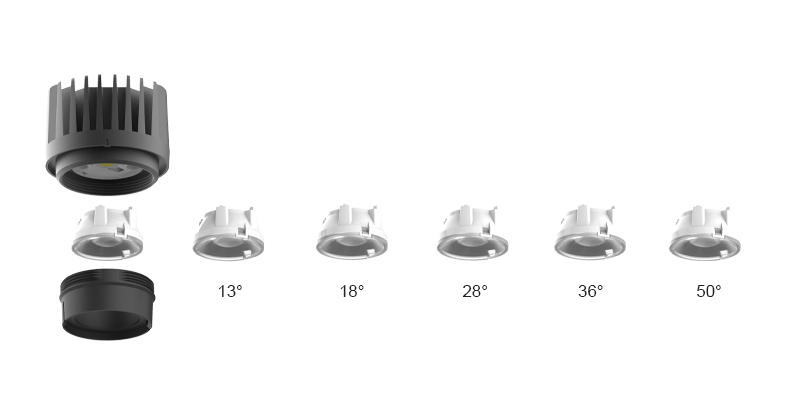

Easy to get multiple light effect, one light for multi-purpose
Do not use any external force, add three times optical accessories to get rich light effect. Even the lens module can be disassembled and replaced with bare hands on site, one light can be used for multiple purposes.
Projects
Specifications
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 2 2” | 1 Round Trim | LM05 COB 5W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 2 2” | 1 Round Trim | LM07 COB 7W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 3 3” | 1 Round Trim | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 3 3” | 1 Round Trim | LM13 COB 13W | N No Driver A DALI | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 4 4” | 1 Round Trim | LM08 COB 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W LM25 COB 25W | E On-Off D 0-10V Dimming | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLN Downlight N series | 4 4” | 1 Round Trim | LM25 COB 25W | N No Driver A DALI | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Example: ADLN41-LM18E230SWT
