LIGNE III

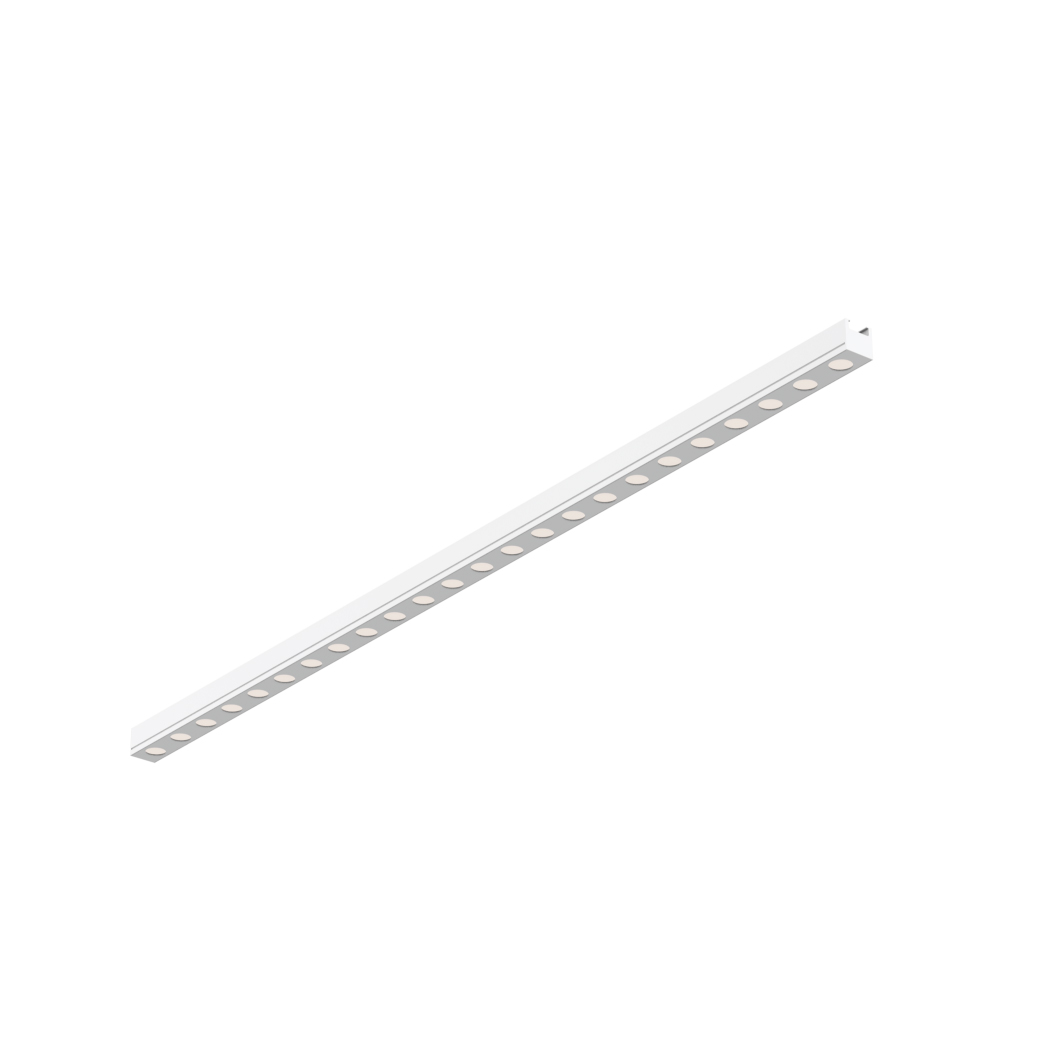

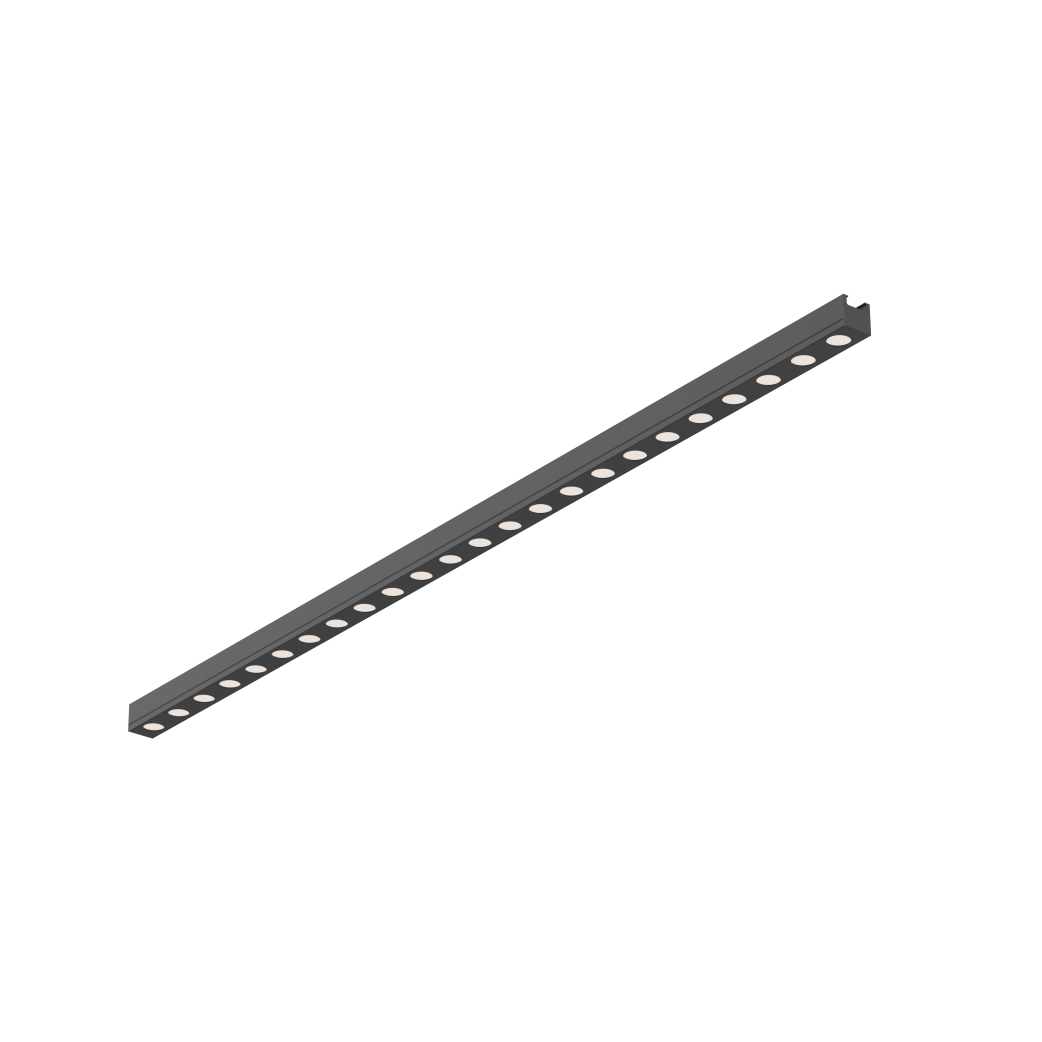

LIGNE III Graze Surface

AOC4N
LIGNE III Graze Surface utilizes specialized lens technology and optimized LED alignment to produce smooth, uniform wall illumination without shadowing or glare. Designed for DC 24V input with continuous end-to-end connectivity, it supports elegant surface-mounted grazing applications in offices, hotels, and exhibition spaces.

Features

Simulation of Wall Washing and Wall Grazing Lighting Effects

Simulation of Wall Washing and Wall Grazing Lighting Effects

Comparative simulation of lighting effects under different installation distances for wall washing and wall grazing.

Specifications

Model

Length (mm)

Power  (W)

Driver

Beam

CCT

Finish

AOC4N

02  244






05  05W

N  No Driver

W   Wall Washer

1    12°

2    20°

3    30°

4    40°

E   15*45°



27   2700K

30   3000K

40   4000K

WT  White

BK  Black

Model

Length (mm)

Power  (W)

Driver

Beam

CCT

Finish

AOC4N

05  484





10  10W

N  No Driver

W   Wall Washer

1    12°

2    20°

3    30°

4    40°

E   15*45°

27   2700K

30   3000K

40   4000K

WT   White

BK   Black

Model

Length(mm)

Power  (W)

Driver

Beam

CCT

Finish

AOC4N

10  964





20  20W

N  No Driver

W   Wall Washer

1    12°

2    20°

3    30°

4    40°

E   15*45°

27   2700K

30   3000K

40   4000K

WT  White

BK  Black

Example: AOC4N-1020NW930WT

Note: Maximum daisy-chain length: 5 m. Beam code W: wall-wash distribution with built-in 3° tilt; during installation, observe the “→” direction marked on the luminaire surface.
