ULTRA

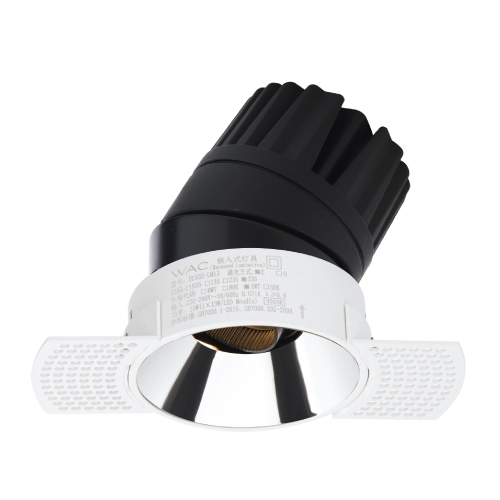

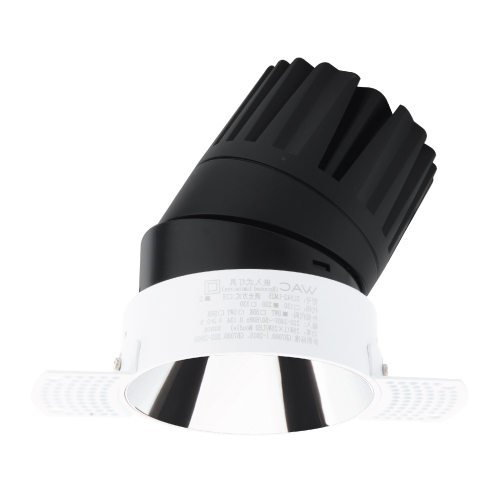

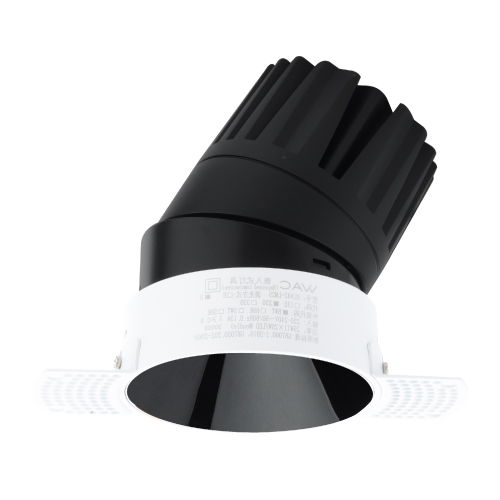

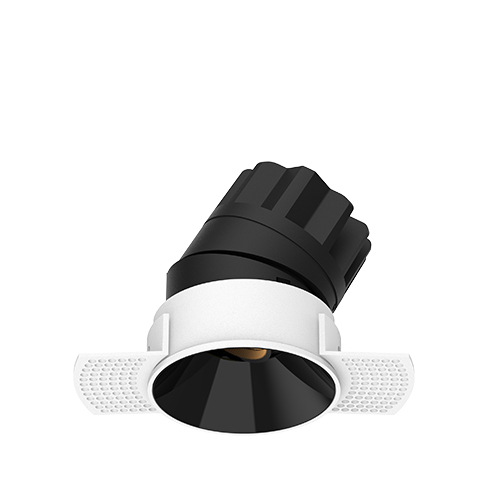

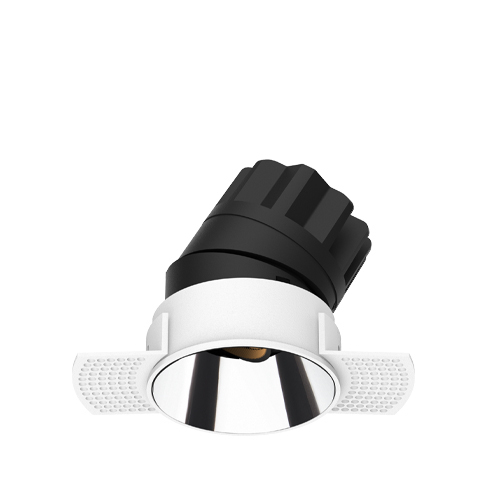

ULTRA Round

ADLN22/ADLN32/ADLN42 2/3/4"
Clean ceilings, controlled beams. ULTRA Round is a 2-in-1 fixed and adjustable downlight engineered for disciplined architectural integration. A sealed light chamber maintains beam integrity during aiming, eliminating spill and edge glow. Advanced concealed optics deliver comfortable output with consistent color, while modular components simplify service and future upgrades—keeping the fixture relevant as spaces evolve.

Features

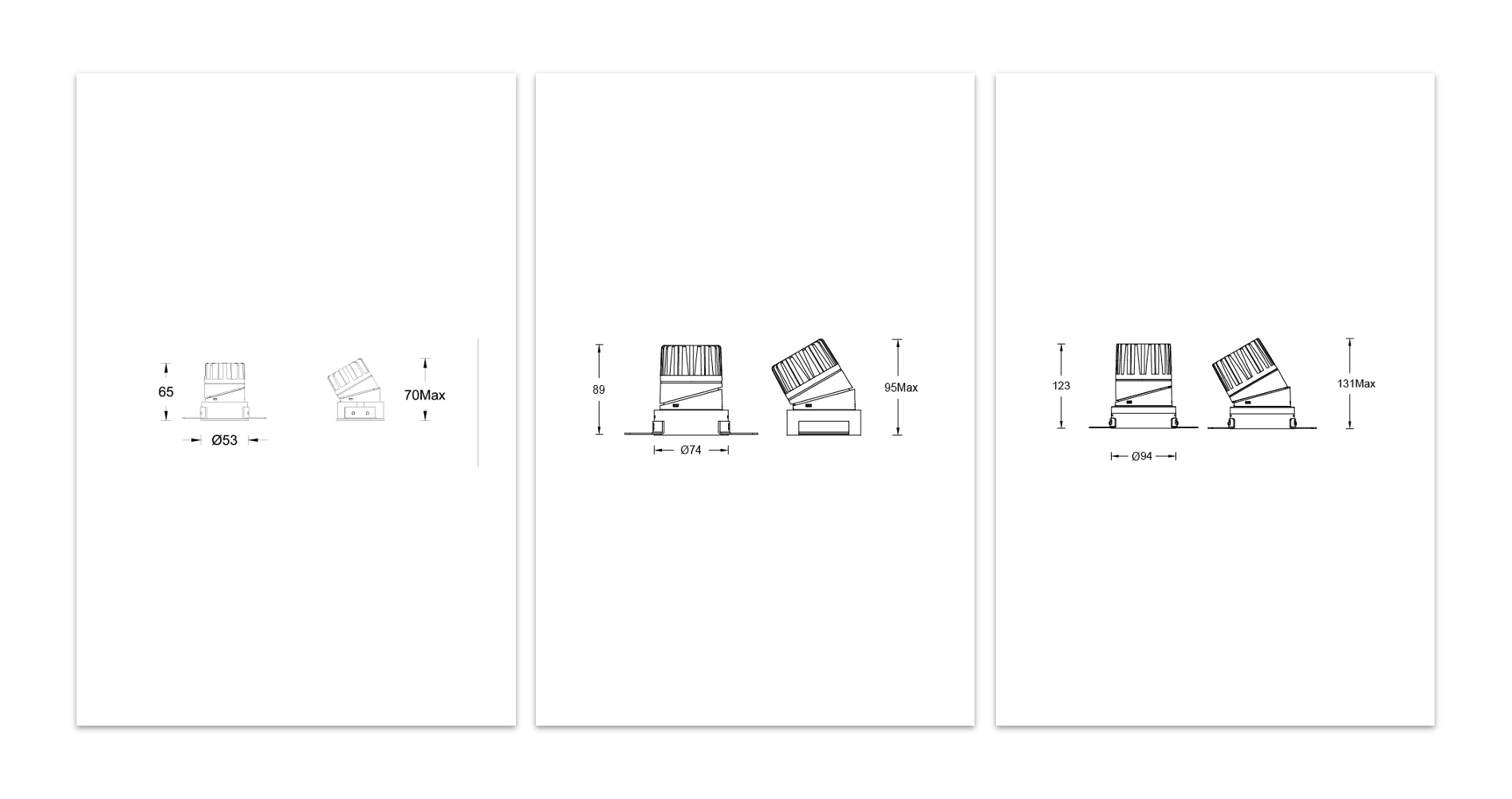

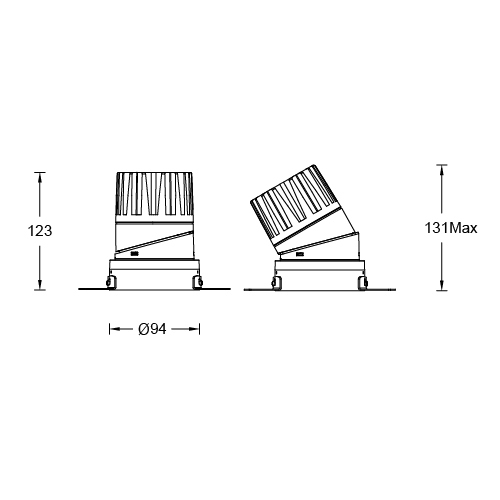

Product Line Drawing

Product Line Drawing

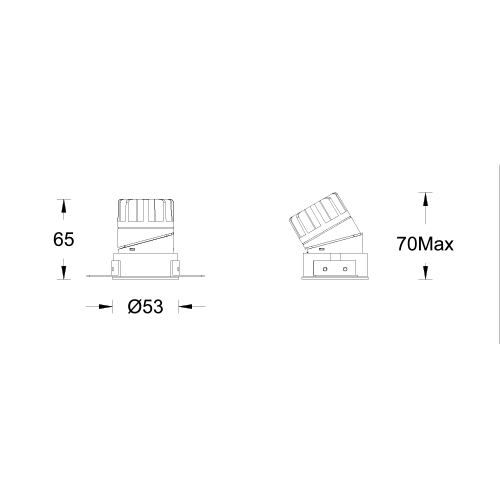

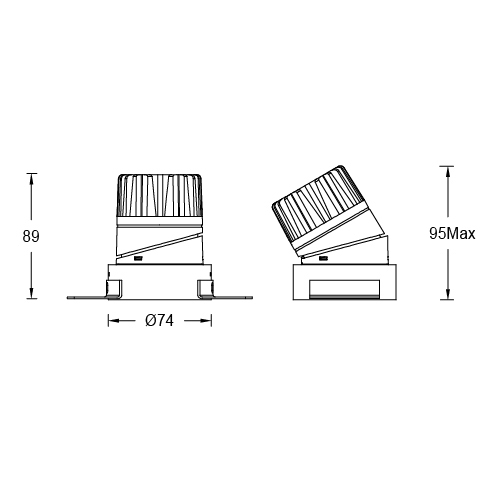

2/3/4 Line Drawing Preview

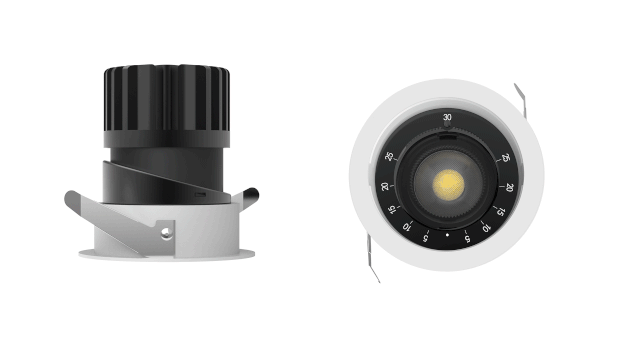

The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture

The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture

Through the patented tilt angle adjustment design, it makes to realize both fixed and adjustable downlight. Sealed design of the whole fixture ensures no light leakage in the process of tilt the angle.
No messy fish tail light spot

No messy fish tail light spot

The spot remains clean and intact complete status throughout the ULTRA adjustment process

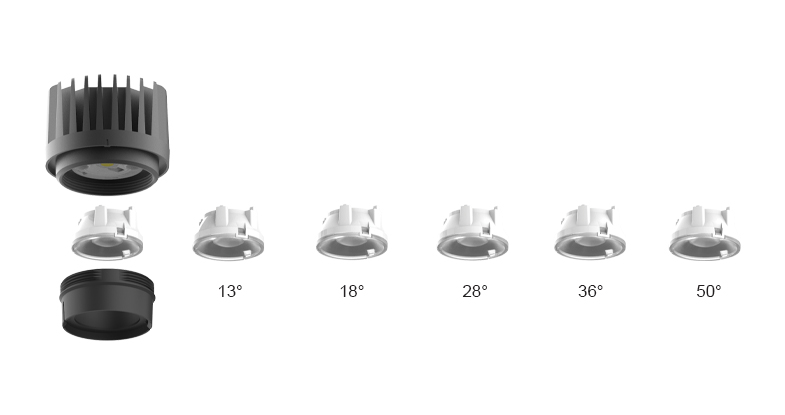

Easy to get multiple light effect, one light for multi-purpose

Easy to get multiple light effect, one light for multi-purpose

Do not use any external force, add three times optical accessories to get rich light effect. Even the lens module can be disassembled and replaced with bare hands on site, one light can be used for multiple purposes.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

2 2”

2 Round Trimless

LM05  COB 5W

LM07  COB 7W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

2 2”

2 Round Trimless

LM07  COB 7W

N  No Driver

A  DALI

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3 3”

2 Round Trimless

LM08  COB 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3 3”

2 Round Trimless

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D  0-10V Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

3 3”

2 Round Trimless

LM13  COB 13W

N  No Driver

A  DALI

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4 4”

2 Round Trimless

LM08  COB 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4 4”

2 Round Trimless

LM13  COB 13W

LM18  COB 18W

LM25  COB 25W

E  On-Off

D  0-10V Dimming

N  13°

1   19°

2   28°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLN

Downlight

N series

4 4”

2 Round Trimless

LM25  COB 25W

N  No Driver

A  DALI

N  13°

1   19°

2   28°

3   36°

5   50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Example: ADLN42-LM18E230SWT
