LIGNE III

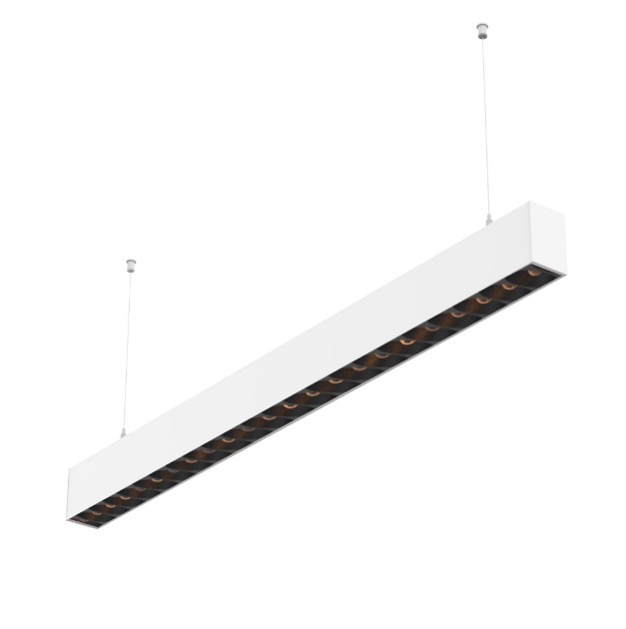

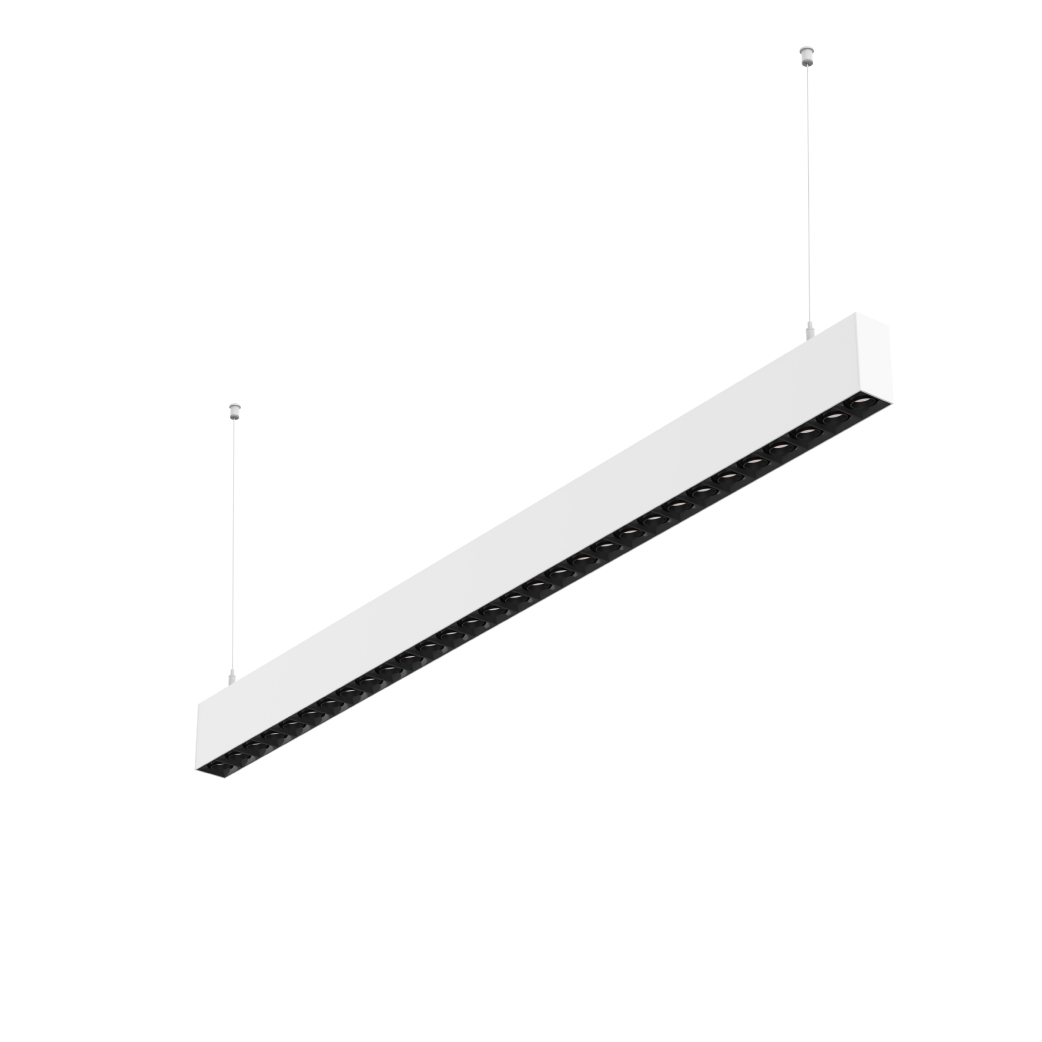

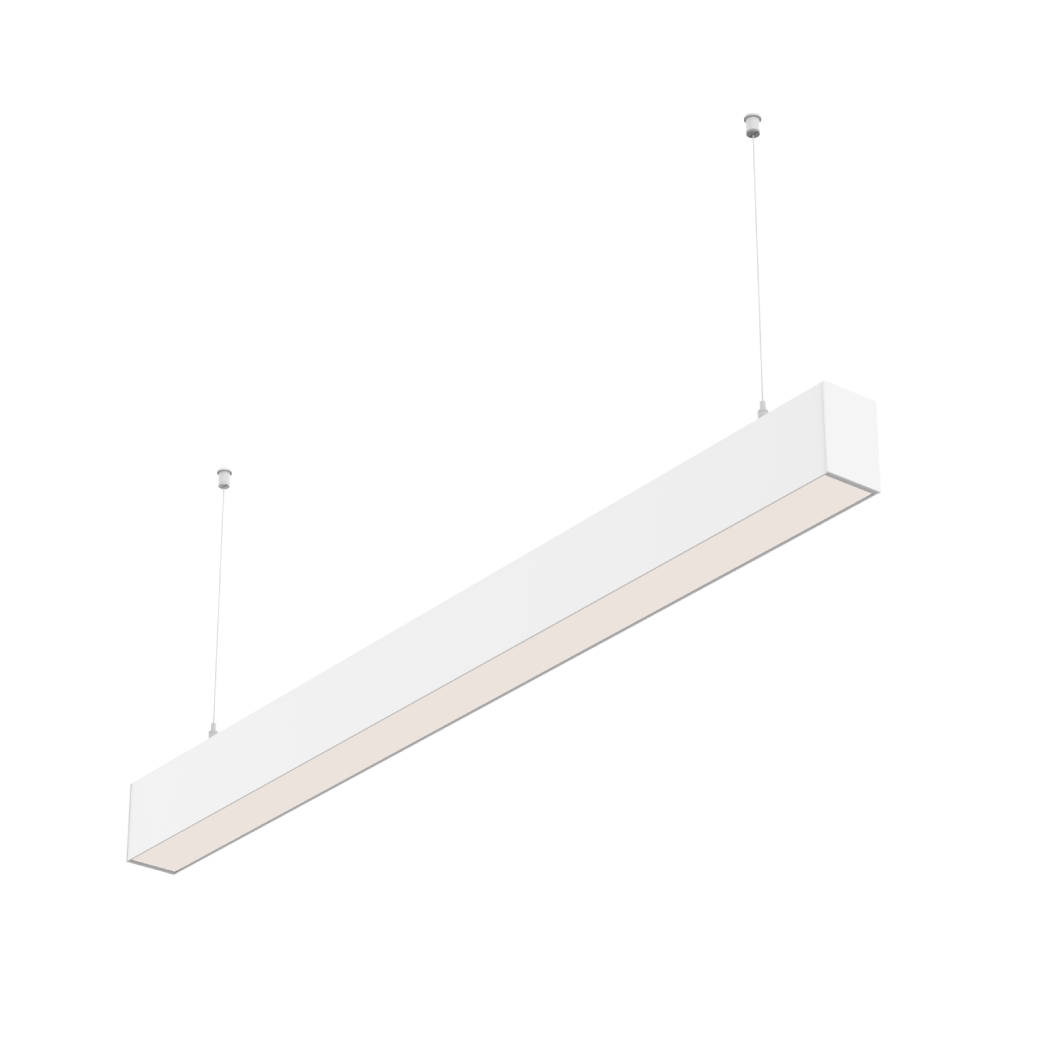

LIGNE III Suspended 45

AOP2S
LIGNE III Suspended 45 features a sleek aluminum profile housing designed for suspended commercial layouts. High-efficiency LED sources provide strong thermal performance and energy savings, while glare-control optics ensure comfortable illumination. Continuous connectivity and customizable lengths allow flexible integration across diverse architectural lighting schemes.

Features

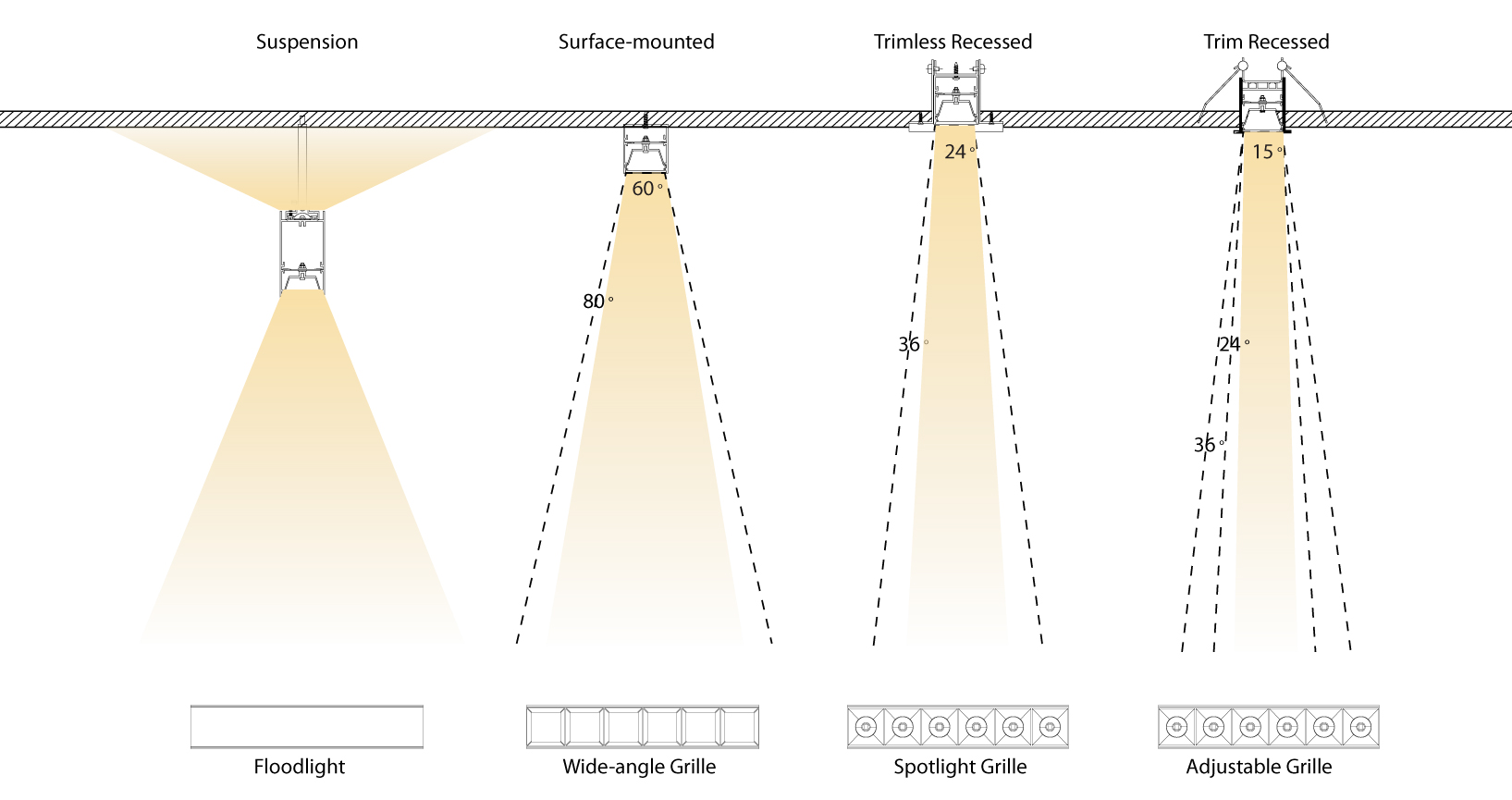

Multiple Installation Methods and Optical Configurations Available

Multiple Installation Methods and Optical Configurations Available

The series offers four installation options — suspended, surface-mounted, recessed with trim, and trimless recessed — providing flexible integration into various architectural environments. It also features four optical configurations, allowing precise lighting control to meet different design and application needs.

Specifications

Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Beam Down

CCT

Finish

AOP2S

S  Single Directional

12  1200

30  30W

E  On-Off

D  0-10V Dimming

A  DALI

/

P  (Frosted cover)

Y  (Prismatic cover)

30  3000K

35  3500K

40  4000K

50  5000K

WT White

BK Black

Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Beam Down

CCT

Finish

AOP2S

D  Double  Directional

12  1200

40  Down: 30W, Up: 10W

E  On-Off

D  0-10V Dimming

A  DALI

F  Frosted

P  (Frosted cover)

Y  (Prismatic cover)

30  3000K

35  3500K

40  4000K

50  5000K

WT White

BK Black

Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Beam Down

CCT

Finish

AOP2S

S  Single Directional

12  1145

30  30W

E  On-Off

D  0-10V Dimming

A  DALI

/

2  24°

3  36°

4  45°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Beam Down

CCT

Finish

AOP2S

D  Double  Directional

12  1145

40  Down: 30W, Up: 10W

E  On-Off

D  0-10V Dimming

A  DALI

F  Frosted

2  24°

3  36°

4  45°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Beam Down

CCT

Finish

AOP2S

S  Single Directional

12  1205

30  30W

E  On-Off

D  0-10V Dimming

A  DALI

/

6  60°

8  80°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black


Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Beam Down

CCT

Finish

AOP2S

D  Double  Directional

12  1205

40  Down: 30W, Up: 10W

E  On-Off

D  0-10V Dimming

A  DALI

F  Frosted

6  60°

8  80°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black



Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Comment

Beam Down

CCT

Finish

OP2S

S  Single Directional

12  1205

30  30W

E  On-Off

D  0-10V Dimming

A  DALI

/

A  Adjustable

1  15°

2  24°

3  36°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Model

Comment

Length（mm）

Power（W）

Driver

Beam Up

Comment

Beam Down

CCT

Finish

OP2S

D  Double  Directional

12  1205

40  Down:30W, Up:10W

E  On-Off

D  0-10V Dimming

A  DALI

F  Frosted

A  Adjustable

1  15°

2  24°

3  36°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Example：AOP2SS-1230EA240WT(Note: downlight)     AOP2SD-1240EFA240WT (Note: up+downlight)
