LIGNE III

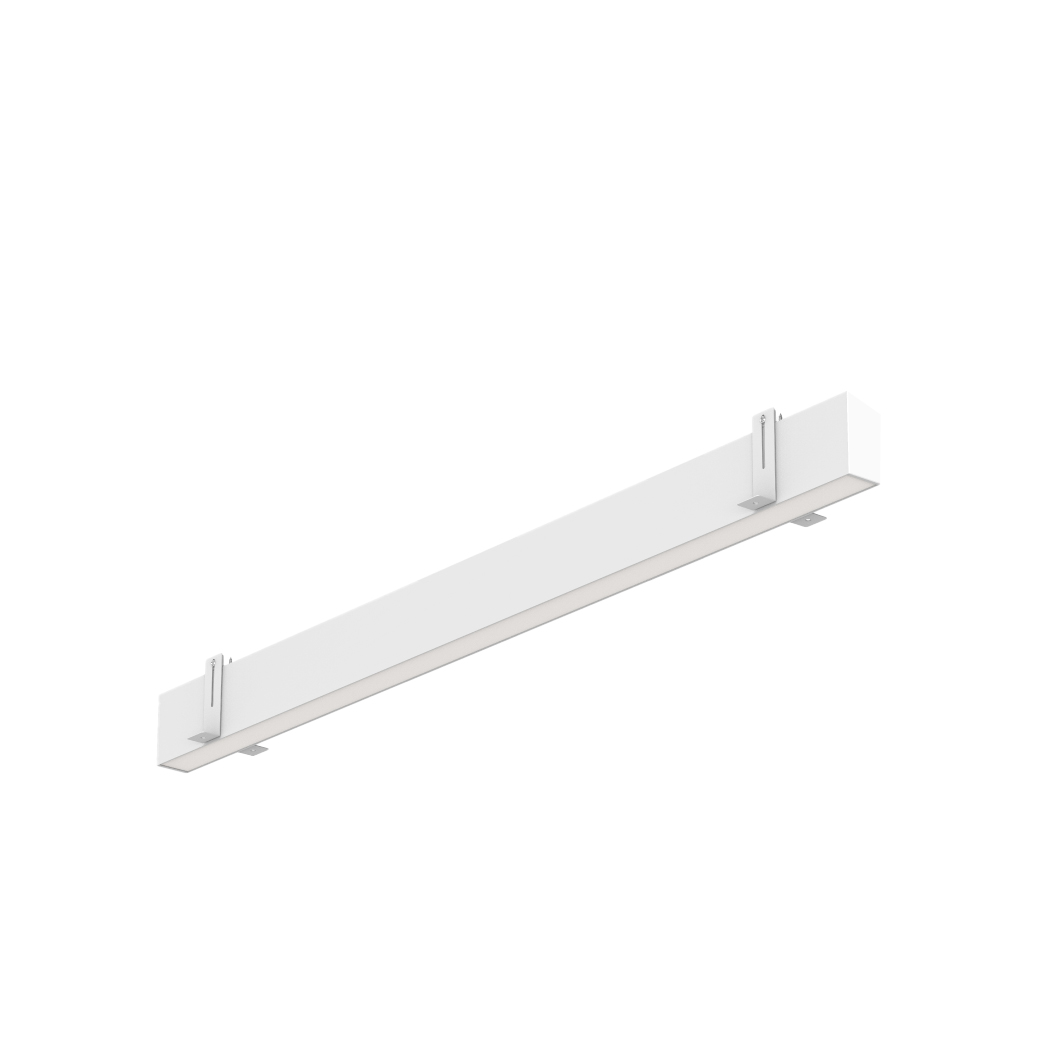

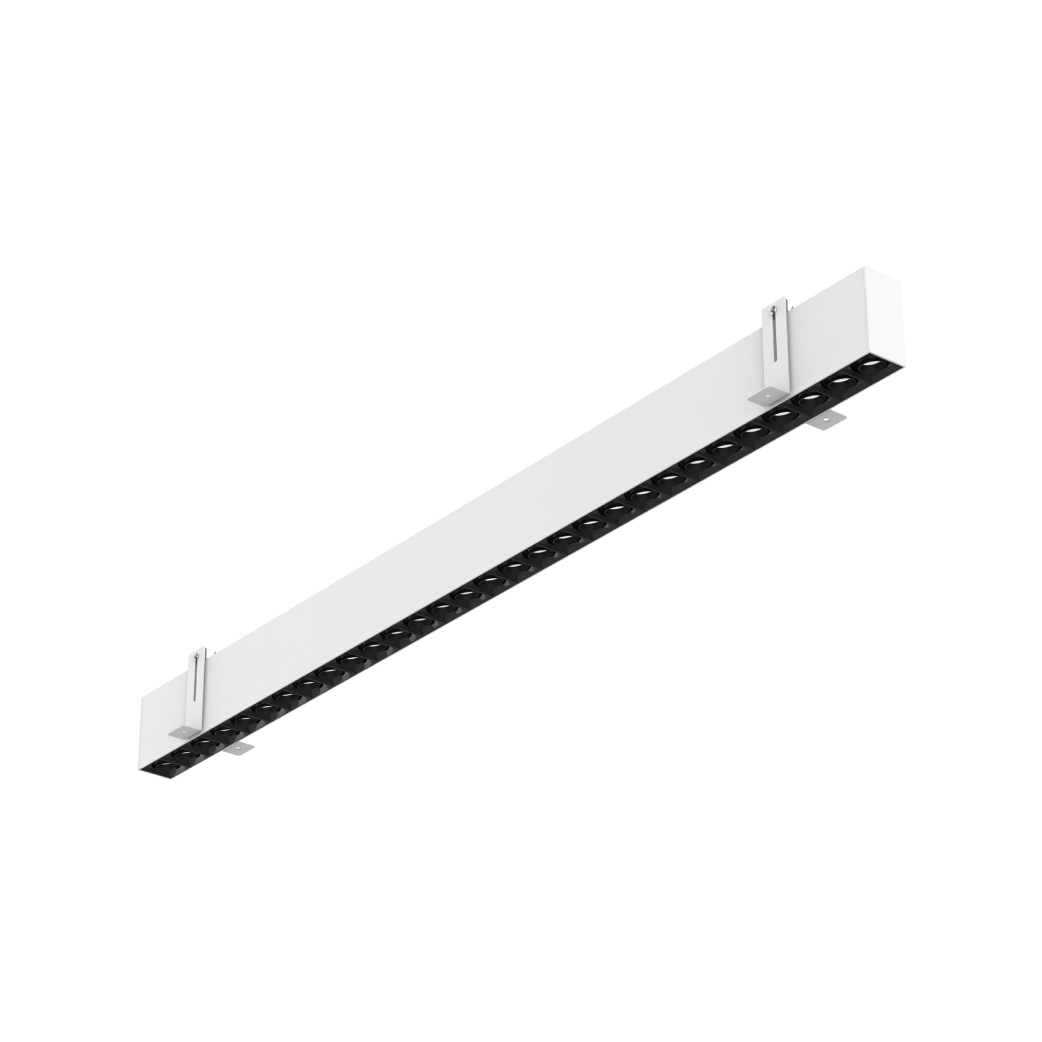

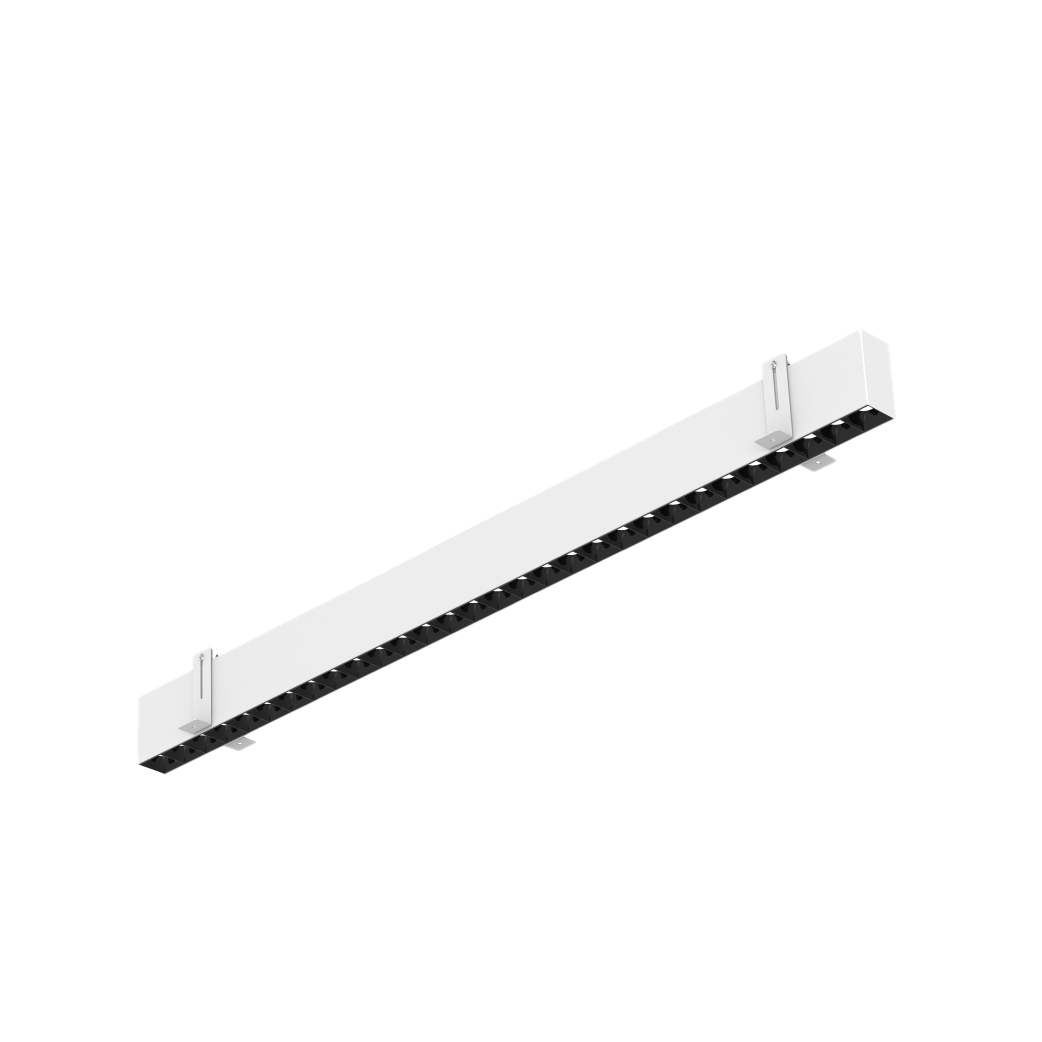

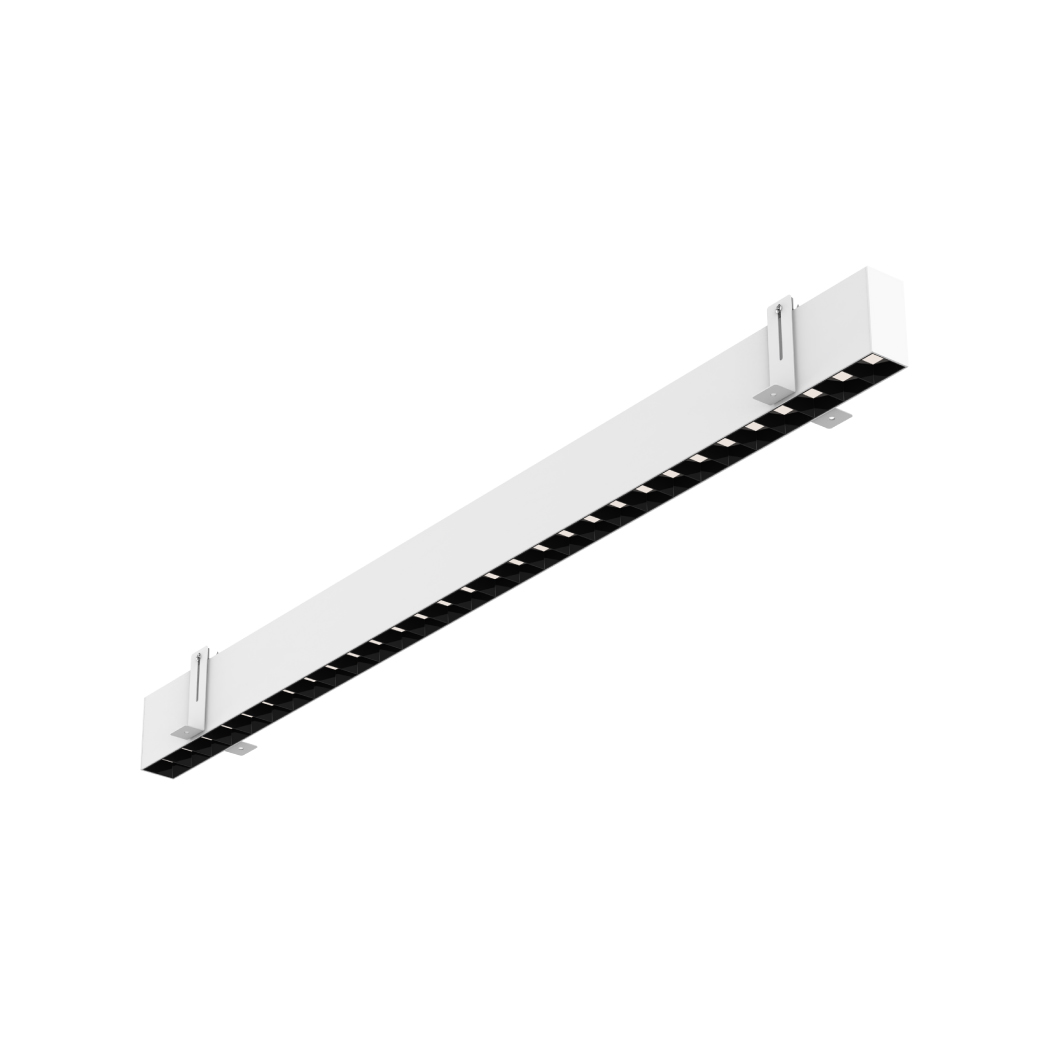

LIGNE III Recessed 45

AOR2S
LIGNE III Recessed 45 delivers trimless linear precision within a minimalist extruded aluminum housing. Its clean architectural profile integrates seamlessly into ceiling planes while supporting high-efficiency LED performance, optimized thermal management, and disciplined glare suppression. Continuous end-to-end installation and customizable lengths allow scalable solutions for commercial and office lighting environments.

Features

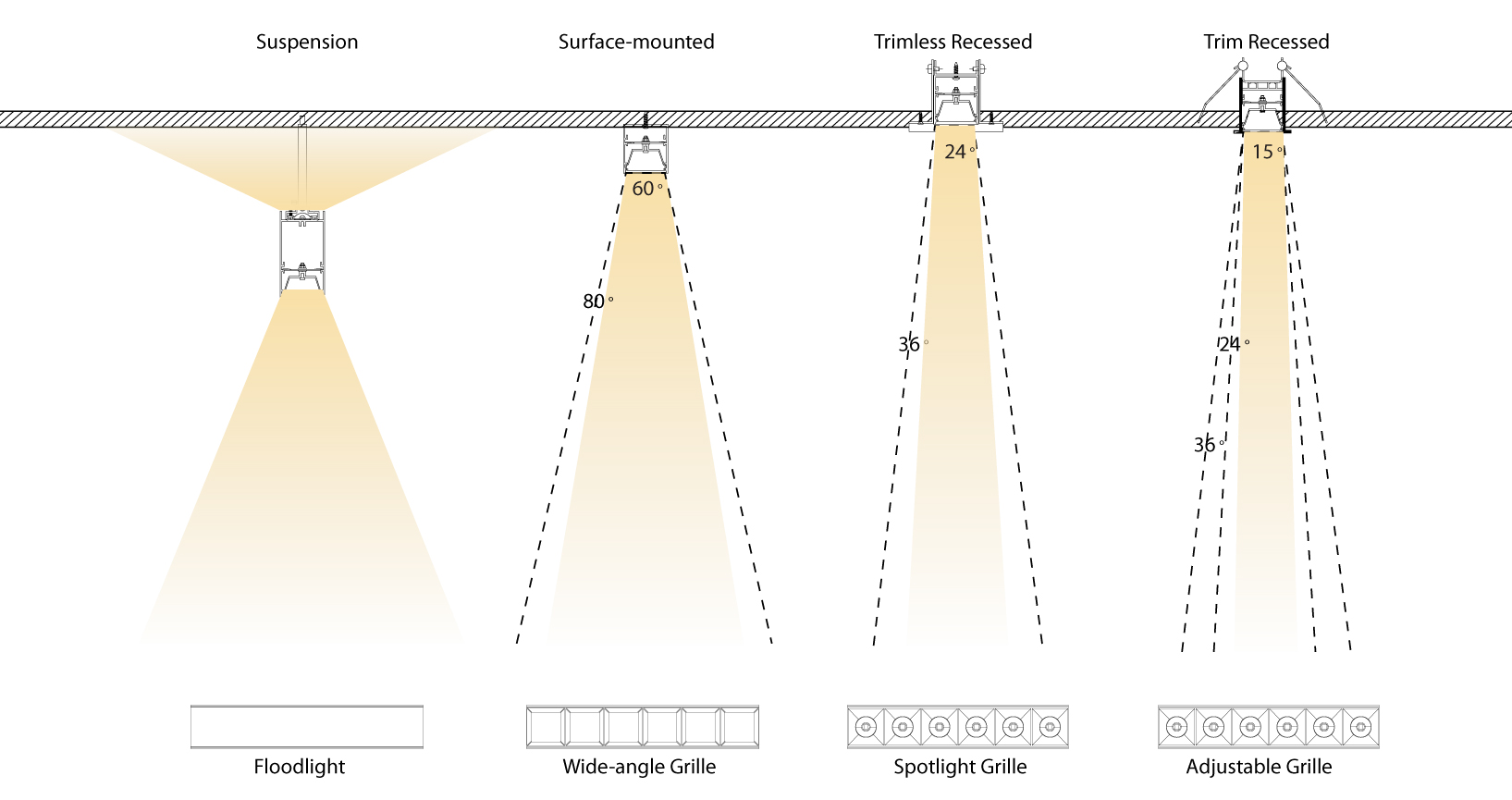

Multiple mounting options and interchangeable optical distributions.

Multiple mounting options and interchangeable optical distributions.

The range offers four mounting options—suspended, surface-mounted, recessed with trim, and trimless recessed—along with four optical distributions to choose from.

Specifications

Model

Length(mm)

Power(W)

Driver

Beam

CCT

Finish

AOR2S

12  1200

30  30W

E  ON-OFF

D  0-10V Dimming

A  DALI

P (Frosted cover)

Y (Prismatic cover)

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Model

Length(mm)

Power(W)

Driver

Beam

CCT

Finish

AOR2S

12  1145

30  30W

E  ON-OFF

D  0-10V Dimming

A  DALI

2  24°

3  36°

4  45°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Model

Length(mm)

Power(W)

Driver

Beam

CCT

Finish

AOR2S

12  1205

30  30W

E  ON-OFF

D  0-10V Dimming

A  DALI

6  60°

8  80°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Model

Length(mm)

Power(W)

Driver

Comment

Beam

CCT

Finish

AOR2S

12  1205

30  30W

E  ON-OFF

D  0-10V Dimming

A  DALI

A  Adjustable

1  15°

2  24°

3  36°

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Example:AOR2S-1230EA240WT
