VOLTA

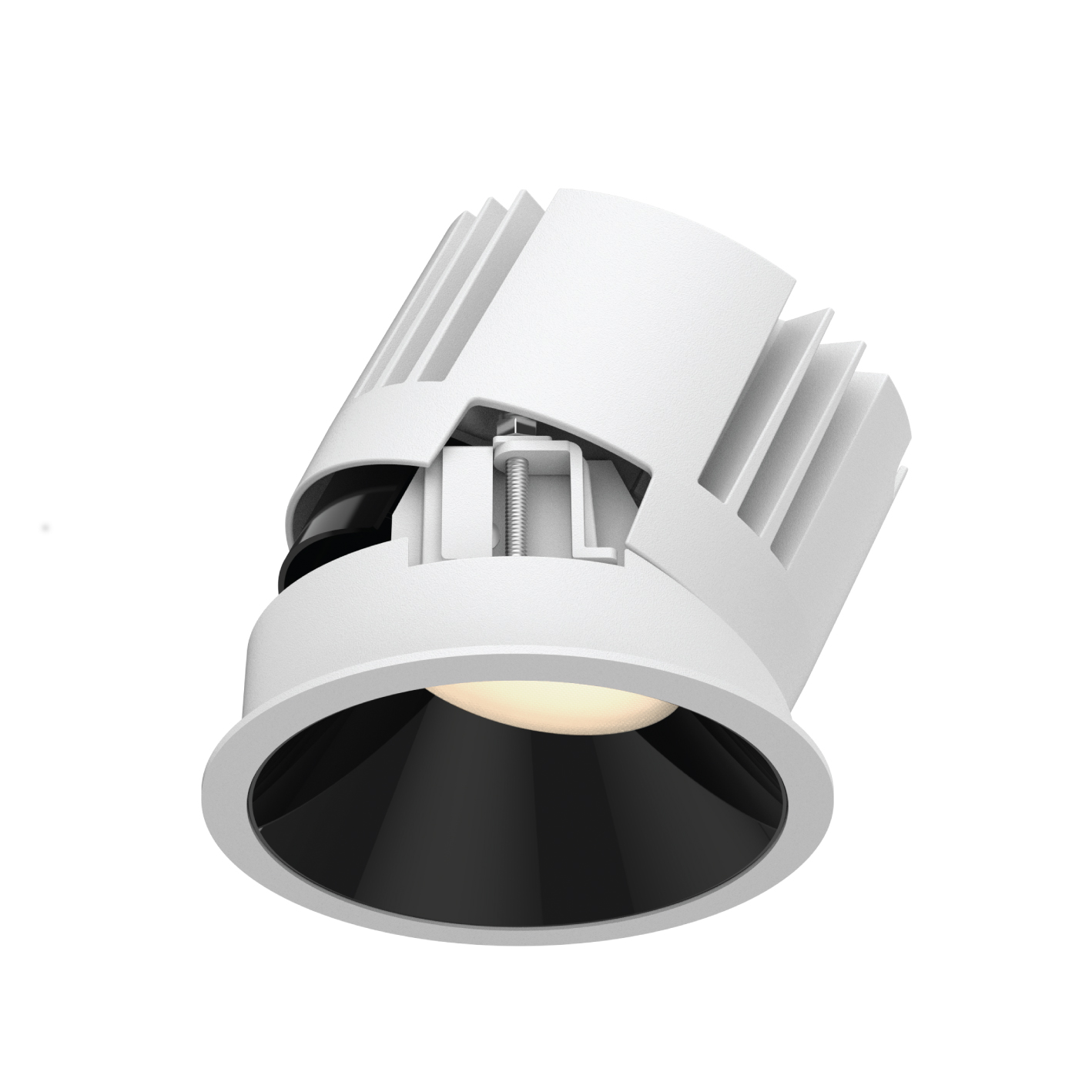

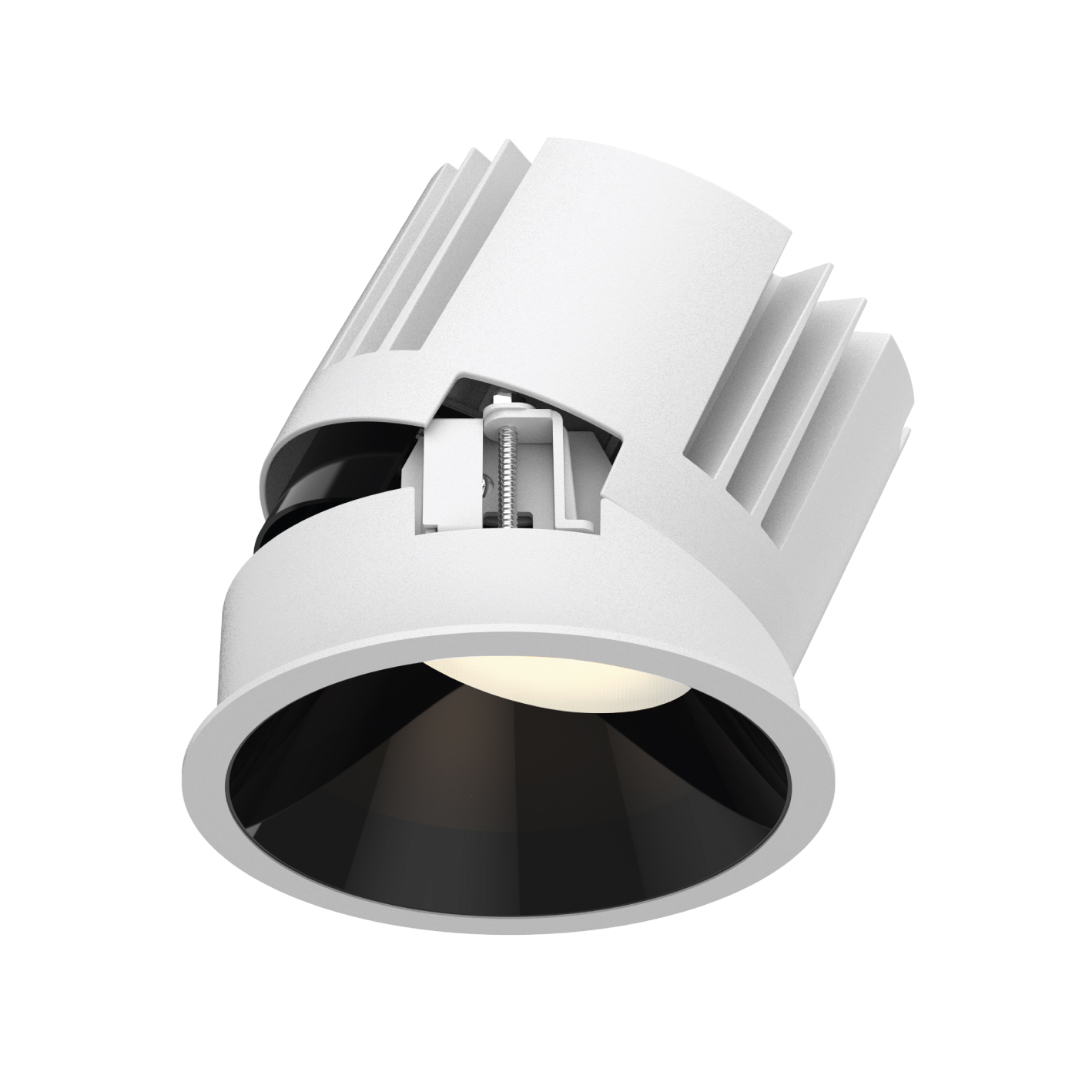

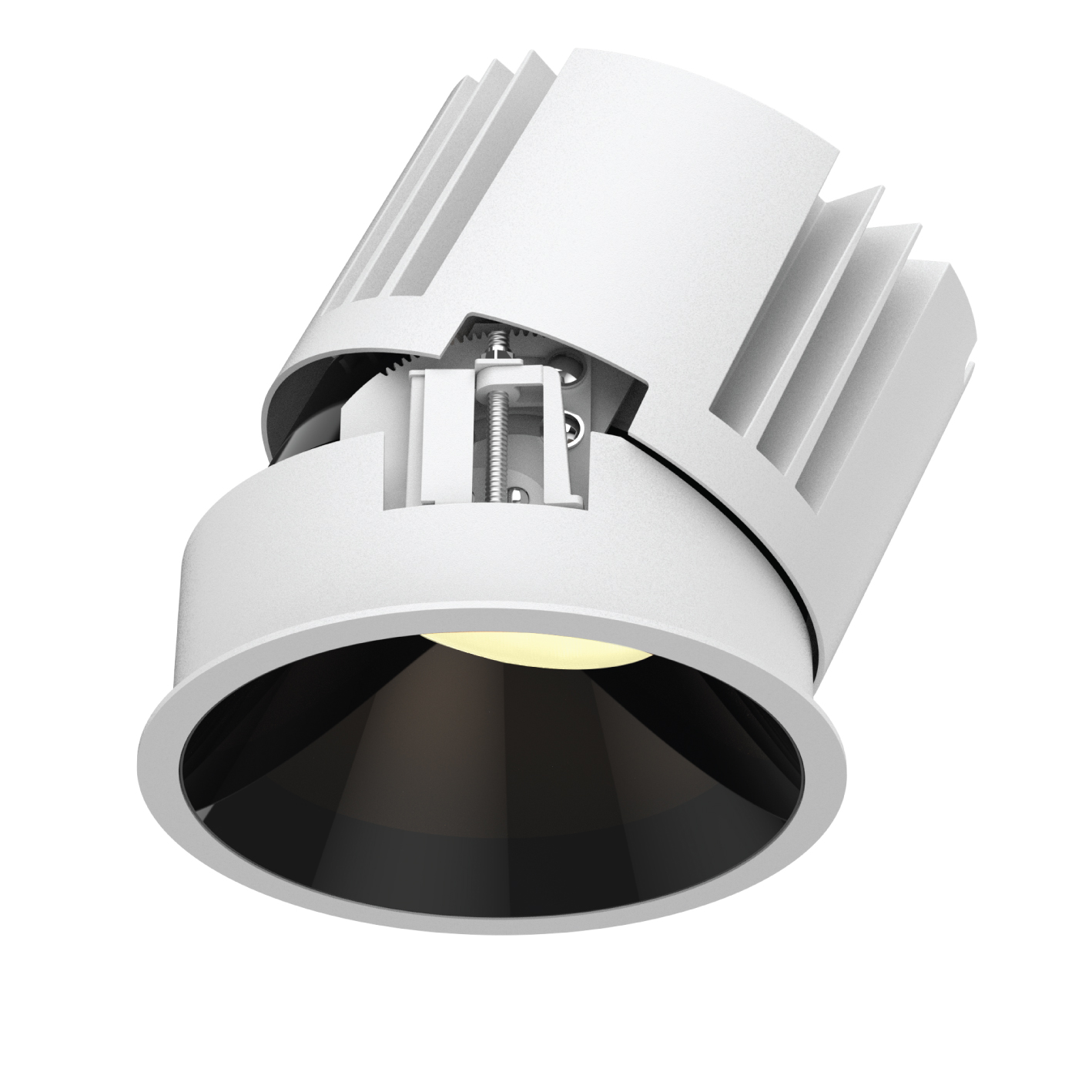

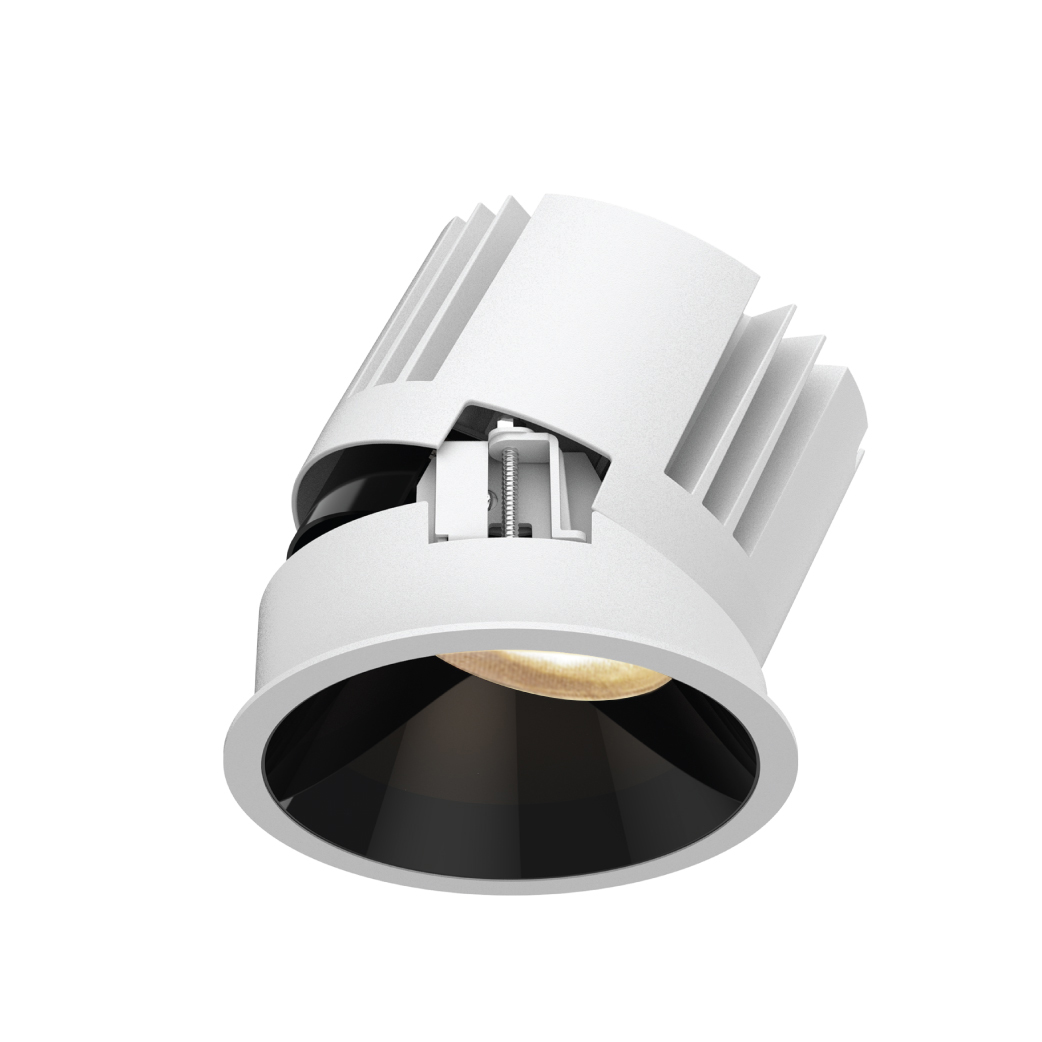

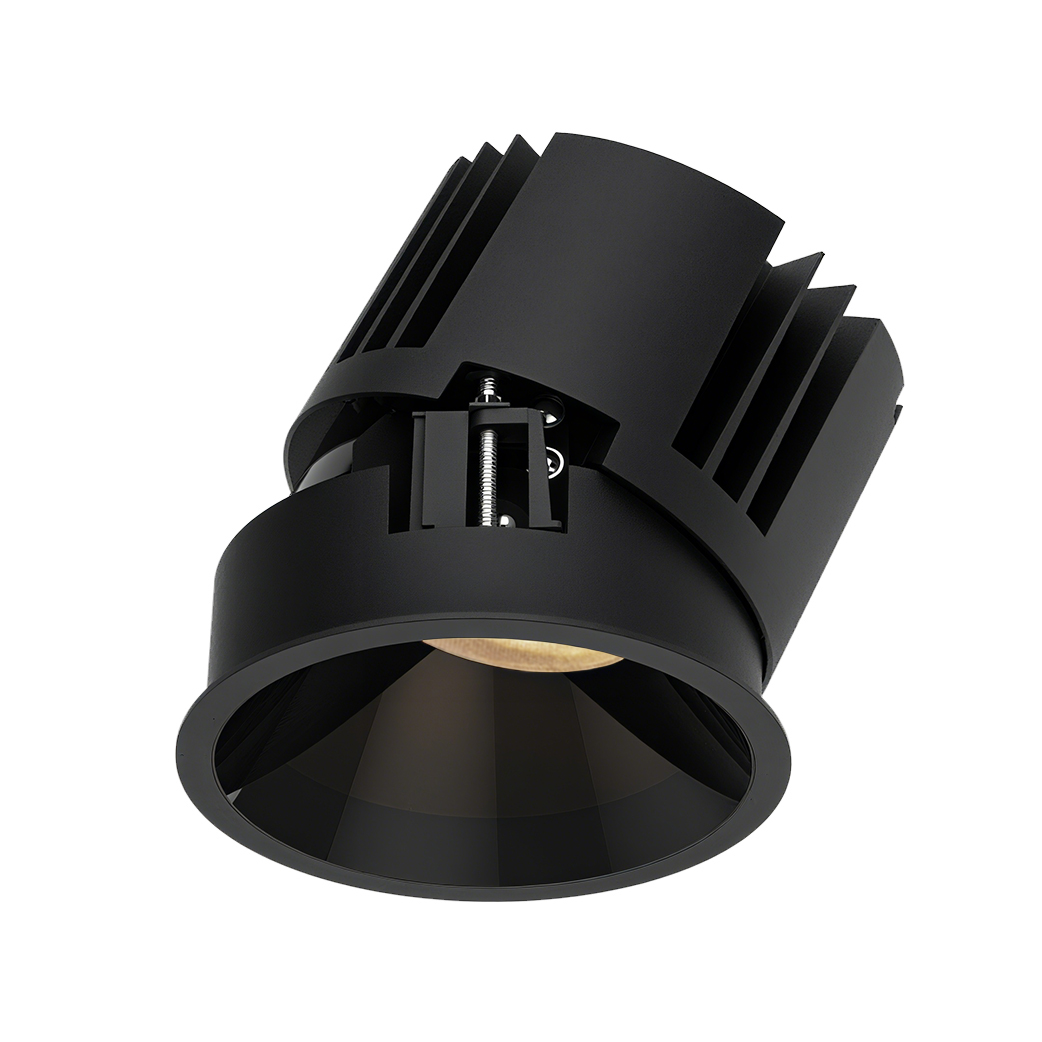

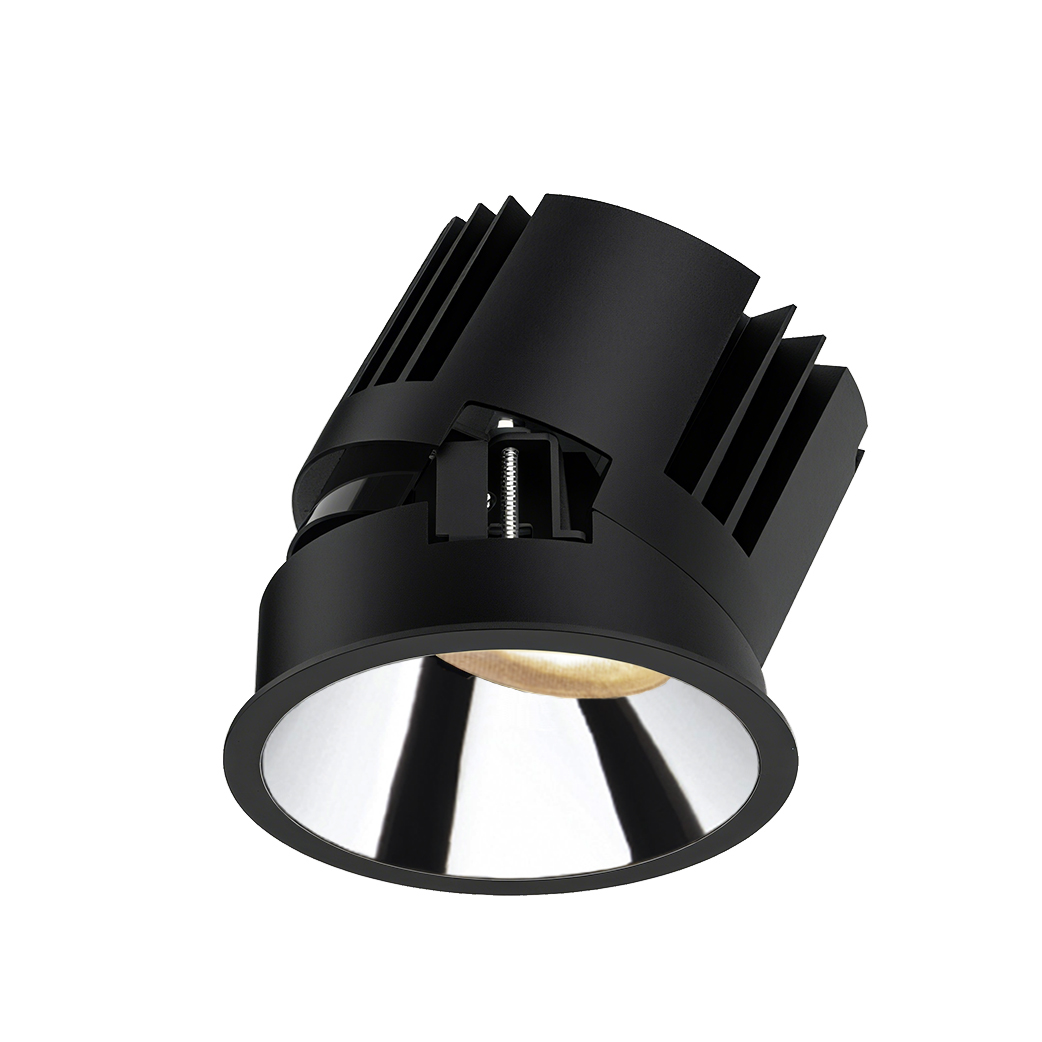

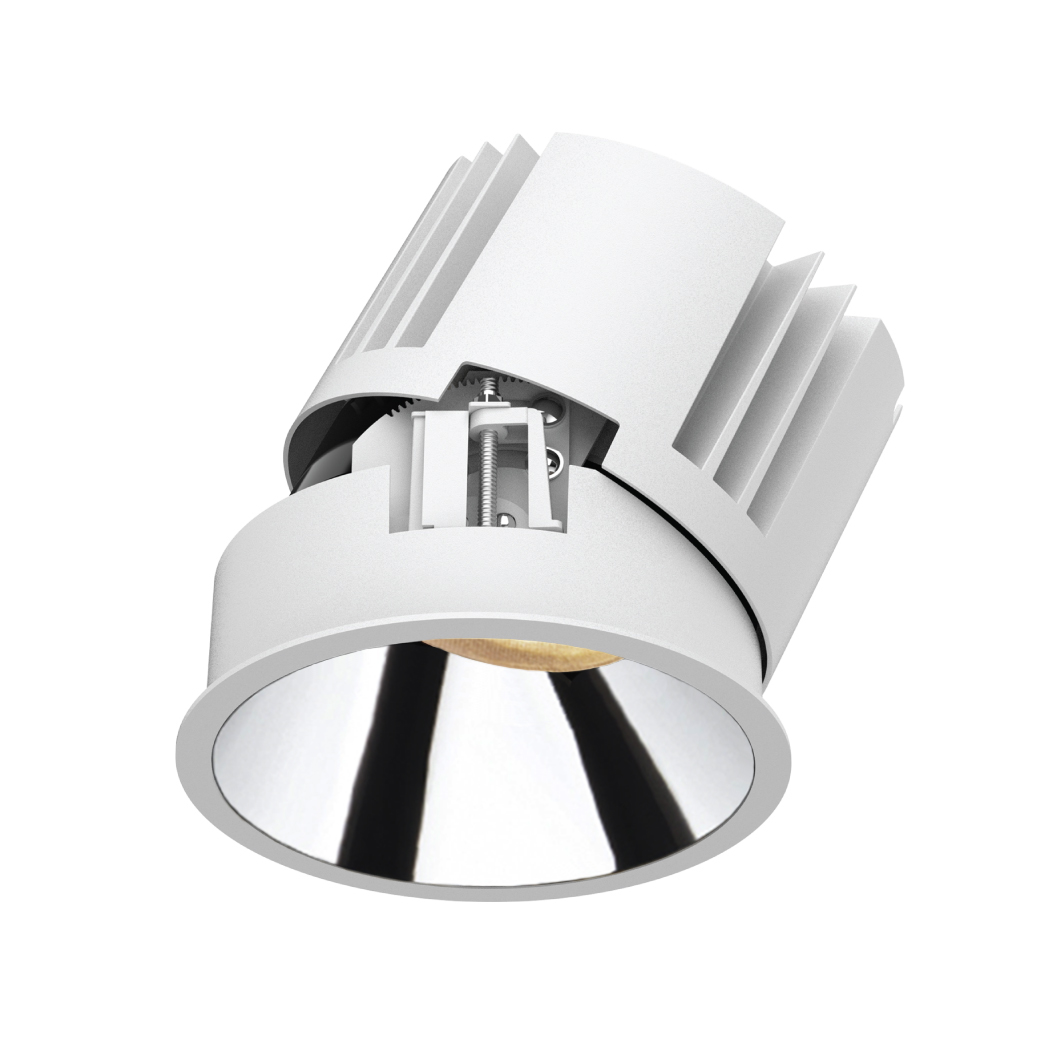

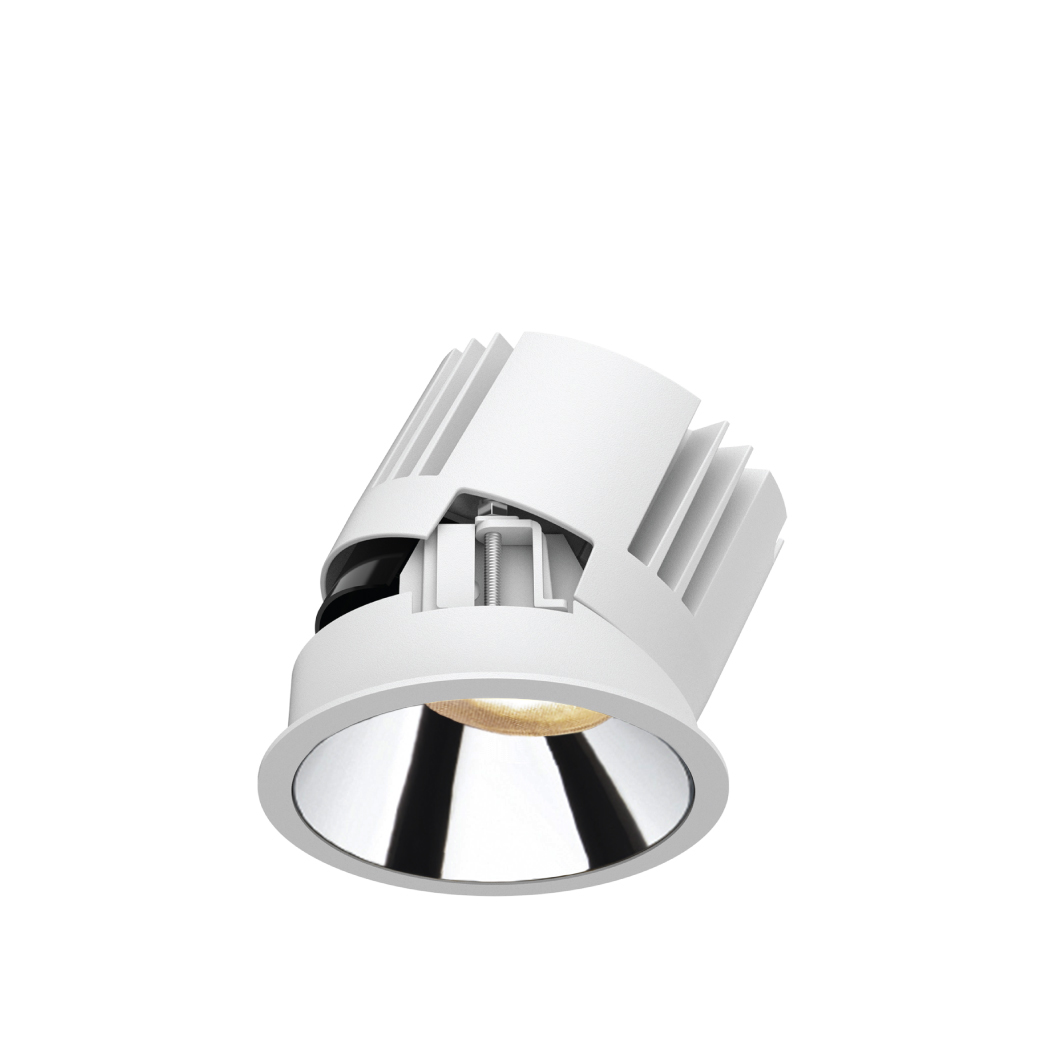

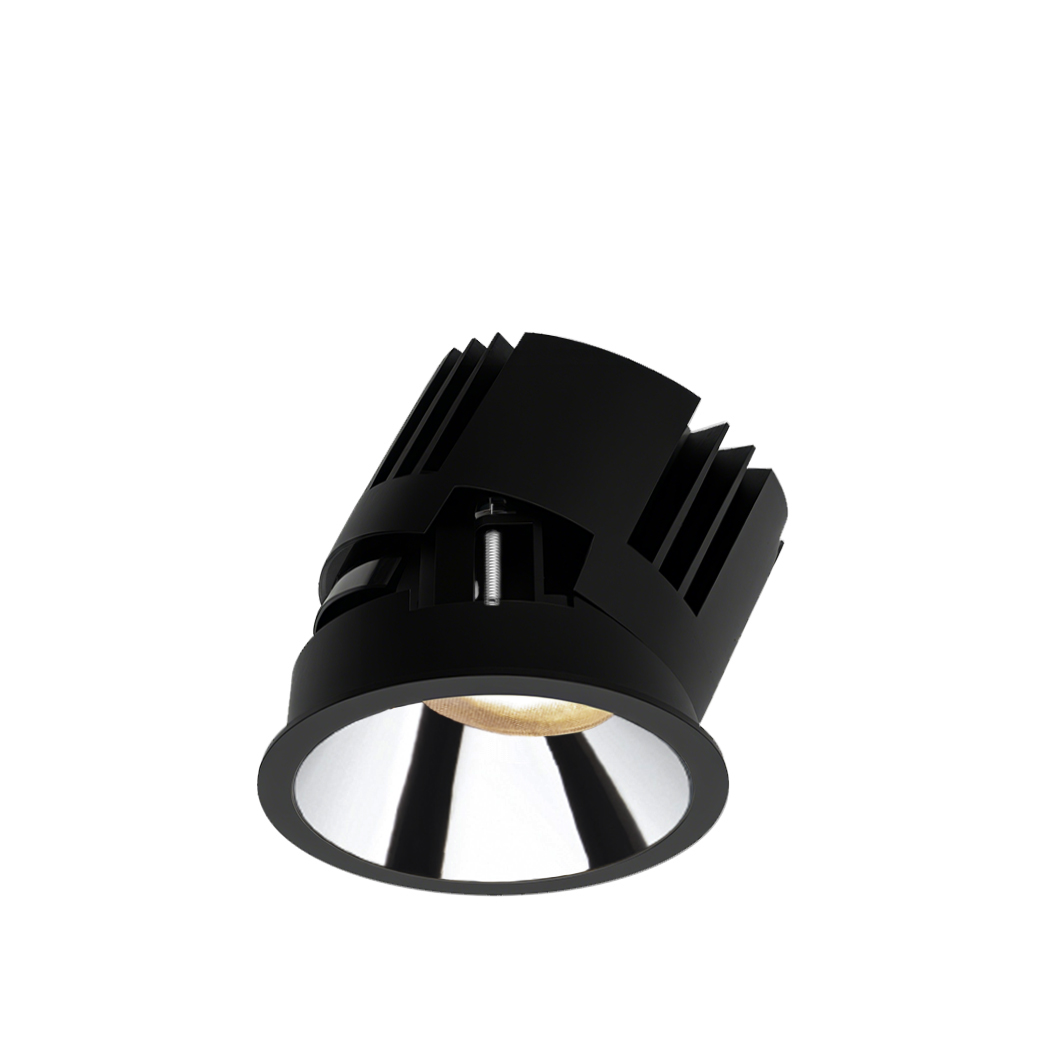

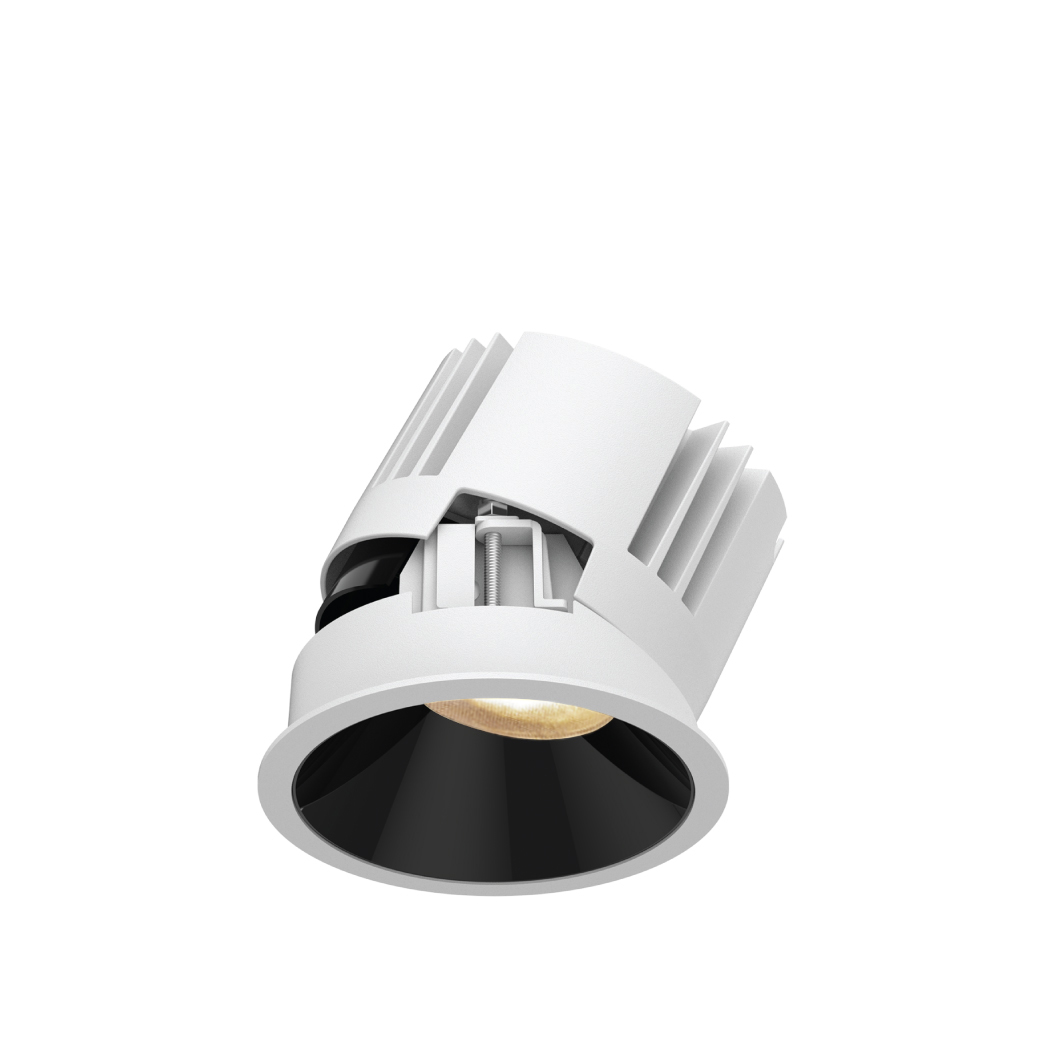

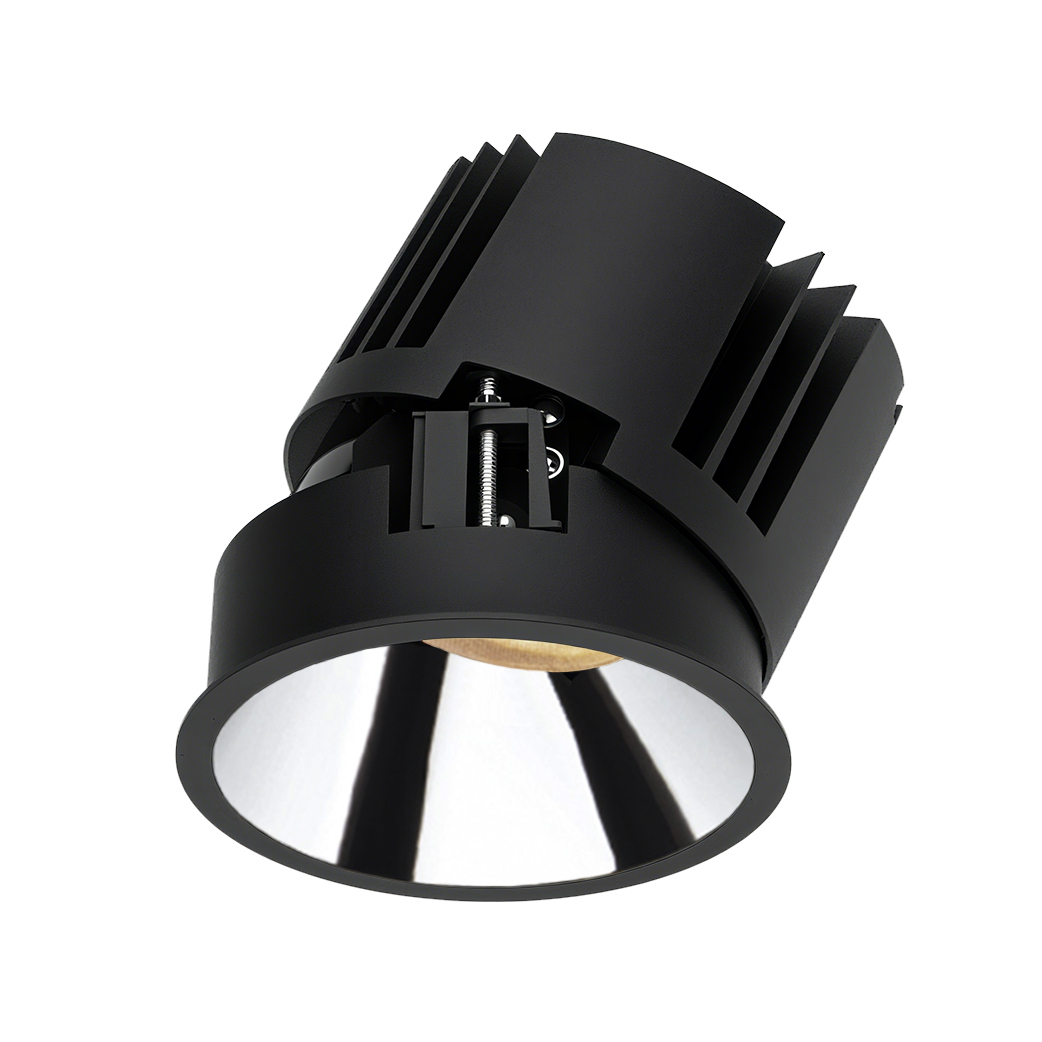

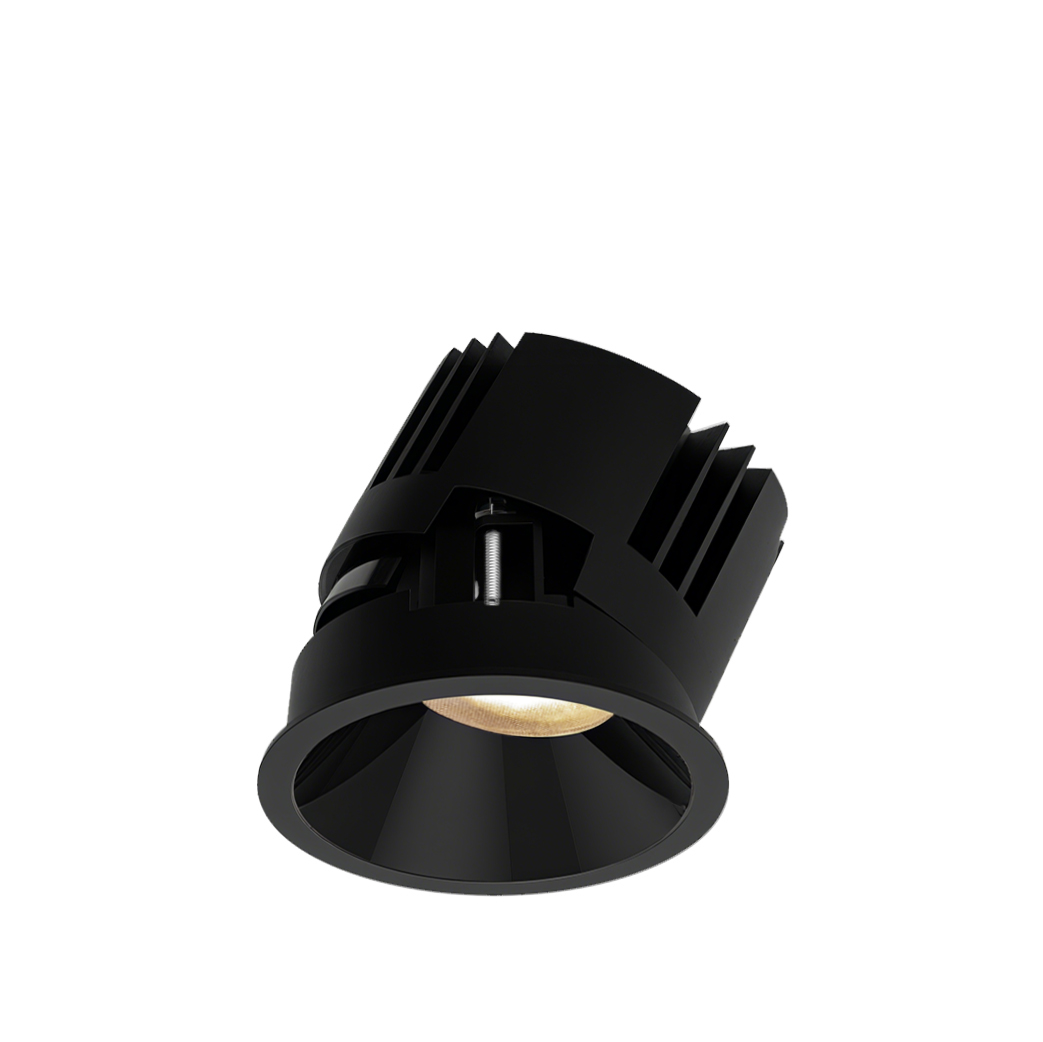

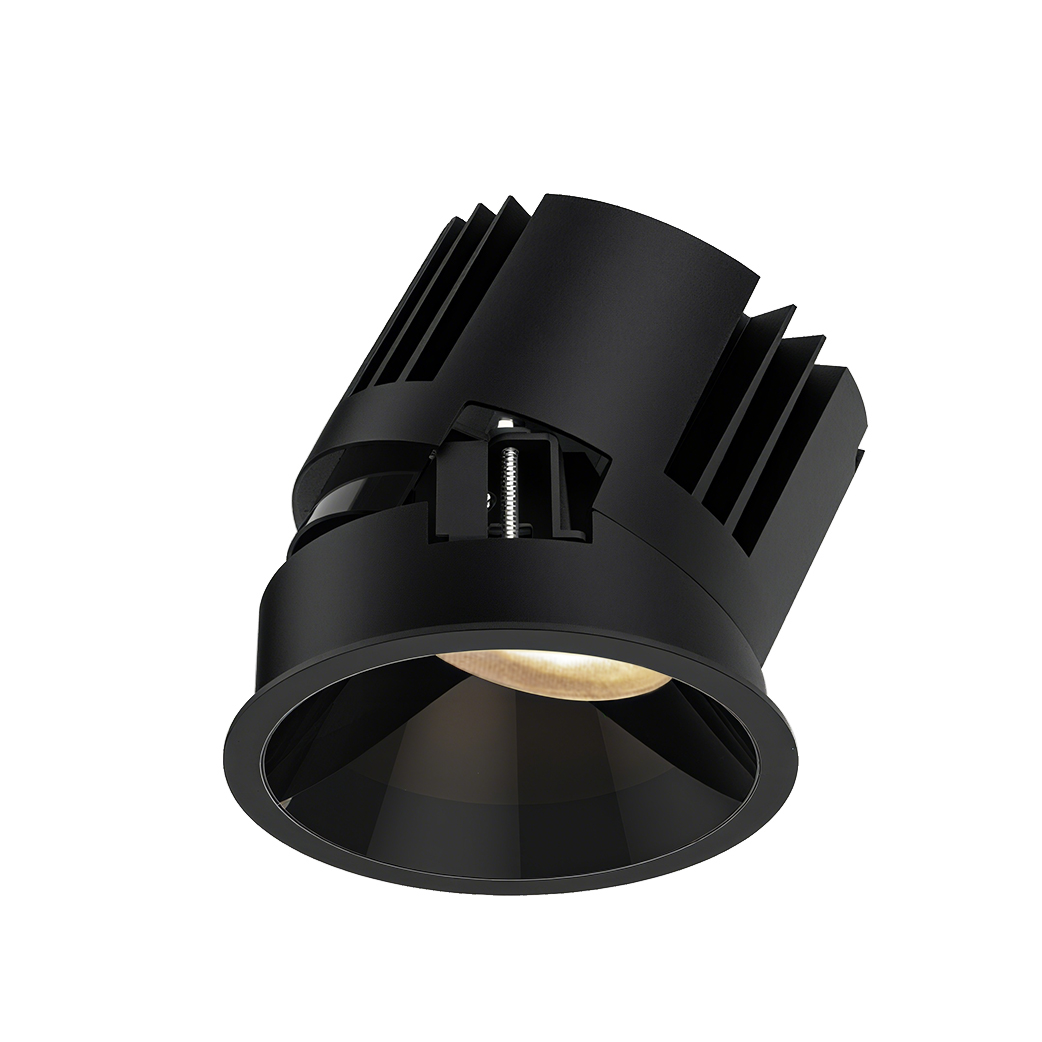

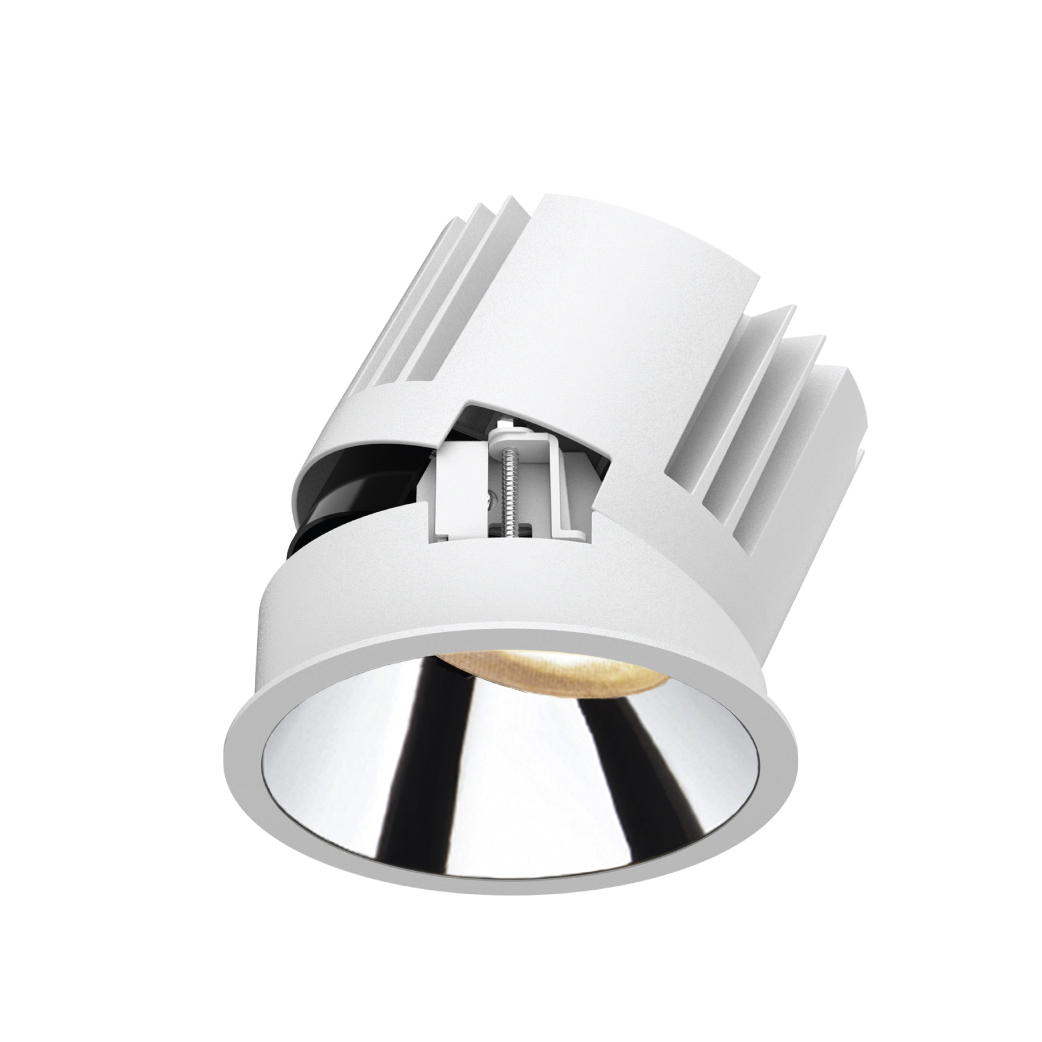

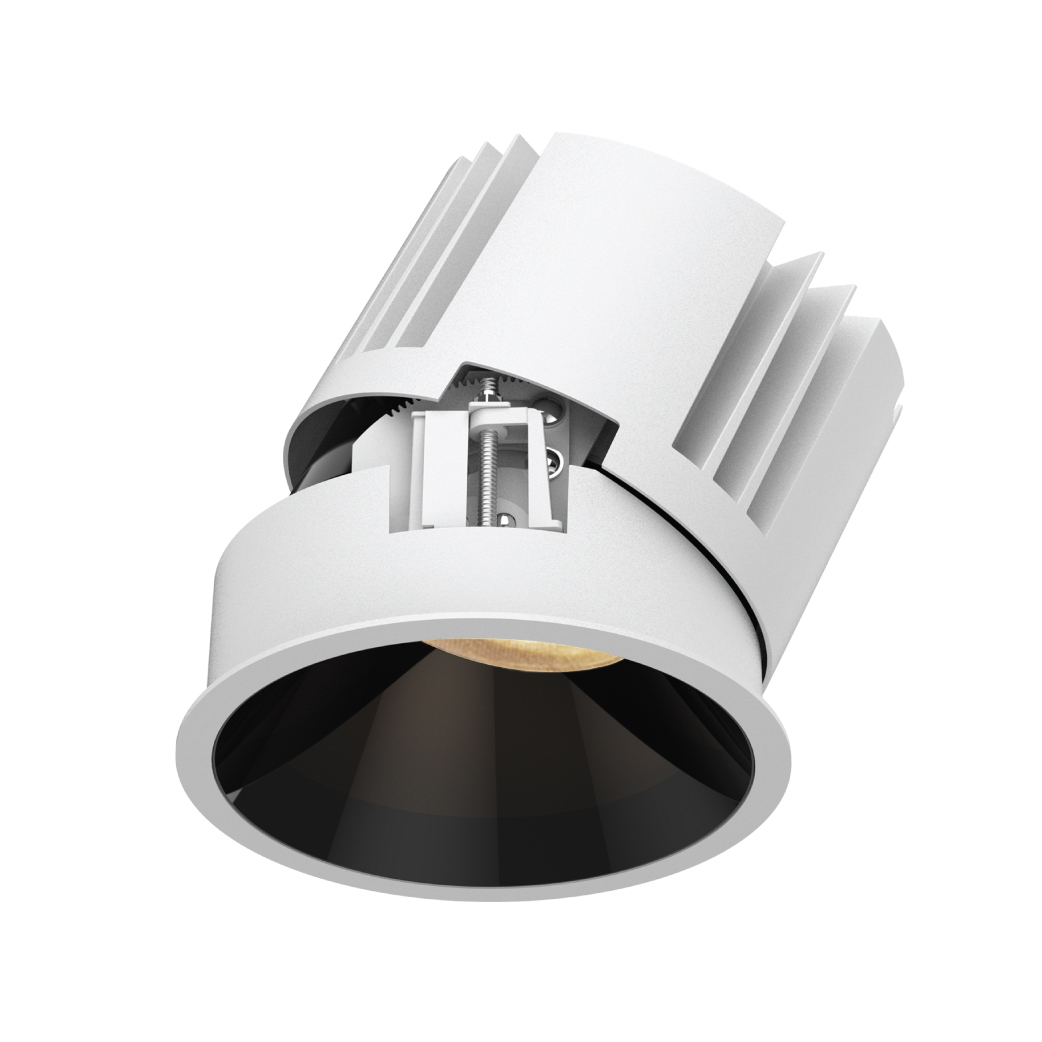

VOLTA Round Adjustable

ADDT41/ADDT51/ADDT61 4/5/6" Round Narrow Trim Adjustable Downlight
Refined in form and disciplined in performance, VOLTA Round Adjustable delivers controlled illumination with a precision lens and black mirror reflector engineered for advanced glare suppression. Light remains clean and composed throughout the full tilt range, maintaining a smooth beam free of spill or distortion. A sealed light engine protects performance in humid or demanding environments. With interchangeable reflectors and optical accessories, VOLTA Round Adjustable adapts effortlessly in the field without compromising architectural intent.

Features

Line drawing of VOLTA adjustable series

Line drawing of VOLTA adjustable series

Detailed Line Drawing for 4/5/6" Fixture
Unique appearance design

Unique appearance design

Convection cooling + Enclosed chimney cooling to enhance thermal performance
IP44 sealed light source chamber design

IP44 sealed light source chamber design

Ensures stable performance in humid environment
No light spot spill out (right VOLTA)

No light spot spill out (right VOLTA)

Actual light effect with clean, soft spot and no stray light
Adjustment without light leakage (right VOLTA)

Adjustment without light leakage (right VOLTA)

Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle

Videos

VOLTA

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4 4”

1 Round Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4 4”

1 Round Trim

LM13  COB 13W

LM18  COB 18W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

4 4”

1 Round Trim

LM18  COB 18W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

1 Round Trim

LD24  LED 24W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

1 Round Trim

LM18  COB 18W

LM25  COB 25W

LM32  COB 32W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

5 5”

1 Round Trim

LM32  COB 32W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADDT

6 6”

1 Round Trim

LD32  LED 32W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White
